225 SPORT XS - Serial 1E002584 and Up - Fuel System

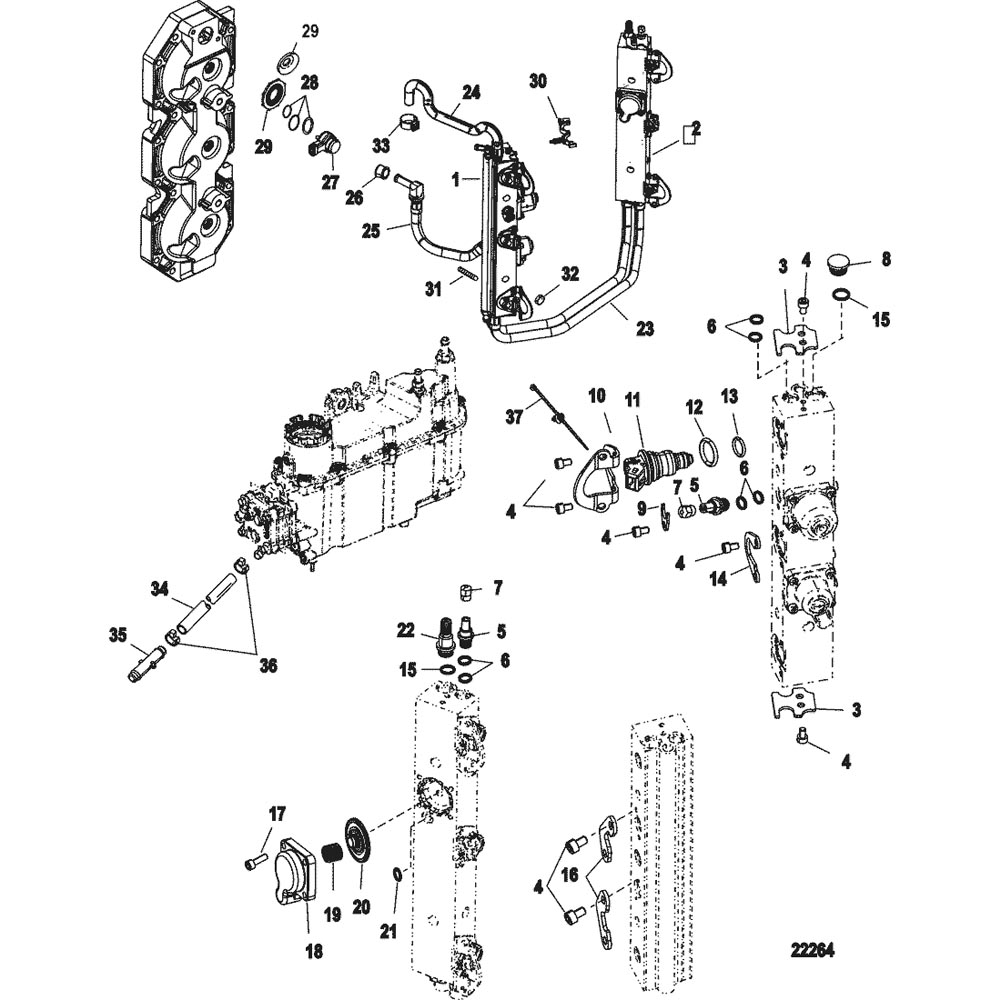

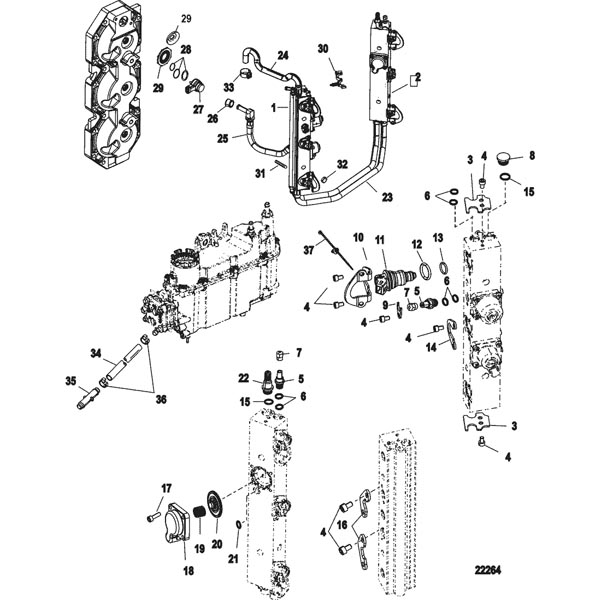

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and above
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing, Drive Shaft (Sport Master)
- Gear Housing, Drive Shaft (Torque Master)
- Gear Housing, Propeller Shaft (Sport Master)
- Gear Housing, Propeller Shaft (Torque Master)
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 8M0106672 | FUEL RAIL ASSEMBLY, Complete | 1 | 884433T15 | |||||
| 1 | NSS | Fuel Rail (Port) | 1 | Not Sold Separate | |||||
| 2 | NSS | Fuel Rail (Starboard) | 1 | Not Sold Separate | |||||
| 3 | 54-804830 | CLAMP | 4 | ||||||
| 4 | 10-804525001 | SCREW PACKAGE, (2 Per)(M5 x 10) | 11 | No Longer Available | |||||
| 5 | 8M0047053 | VALVE ASSEMBLY, (.375 Inch Diameter) | 2 | 883542 | |||||
| 6 | 25-804840 | O-RING KIT | 1 | ||||||
| 7 | 22-805515 | CAP, Shrader Valve - Brass | 2 | ||||||
| 8 | 19-804835 | PLUG | 1 | ||||||
| 9 | 54-8M0041097 | CLAMP | 1 | ||||||
| 10 | 54-8048311 | CLAMP | 4 | ||||||
| 11 | 804528 | INJECTOR | 6 | ||||||
| 12 | 25-804530 | O-RING KIT, Contains 6 pcs | 1 | ||||||
| 13 | 25-804529 | O-RING KIT, Contains 6 pcs | 1 | ||||||
| 14 | 804522 | CLAMP | 2 | ||||||
| 15 | 804532 | O-RING KIT (16 per Kit | 1 | ||||||
| 16 | 54-804832 | CLAMP | 2 | ||||||
| 17 | 804526 | SCREW PACKAGE, (M5 x 16) (2 Per) | 4 | ||||||
| 18 | 804535001 | COVER | 1 | ||||||
| 19 | 24-804534001 | SPRING | 1 | ||||||
| 20 | 804533 | DIAPHRAGM ASSEMBLY | 1 | ||||||
| 21 | 25-804536 | O-RING | 1 | ||||||
| 22 | 22-804836 | FITTING | 1 | ||||||
| 23 | 32-804827 | HOSE | 1 | No Longer Available | |||||
| 24 | 32-889310 | HOSE, Fuel Supply | 1 | No Longer Available | |||||
| 25 | 32-889311 | HOSE, Fuel By Pass | 1 | No Longer Available | |||||
| NS | 25-804840 | O-RING KIT | 1 | ||||||
| 26 | 26-888852 | SEAL, Fuel Director | 1 | ||||||
| 27 | 8M6001744 | INJECTOR ASSEMBLY, Air | 6 | 884595A01 | |||||
| 28 | 26-804875 | SEAL KIT | 1 | ||||||
| 29 | 12-859404002 | WASHER, Injection | 6 | ||||||
| 30 | 828791 | CLIP | 4 | ||||||
| 31 | 16-8M0063255 | STUD, (M10 x 91) | 4 | 858778 | |||||
| 32 | 11-826292 | NUT, (M10) Brass/Nickel Plated | 4 | ||||||
| 33 | 54-856880 | CLAMP, Hose (15.3) | 1 | ||||||
| 34 | 32-8M0043979 | HOSE AND SLEEVE ASSEMBLY, (18.00 Inches) | 1 | 856822A2 | |||||
| 35 | 22-822769 | CONNECTOR | 1 | ||||||
| 36 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 37 | 54-899145 | CLIP, Tie Strap | 4 | ||||||
| - | 98-8M6002988 | DIAPHRAM KIT | 2 | ||||||
| - | 98-8M6002989 | FUEL REGULATOR KIT, 15 PSI | 1 | ||||||
| - | 98-8M6002990 | FUEL REGULATOR KIT, 10 PSI | 1 | ||||||
| - | 98-8M6002991 | AIR REGULATOR KIT | 1 |
