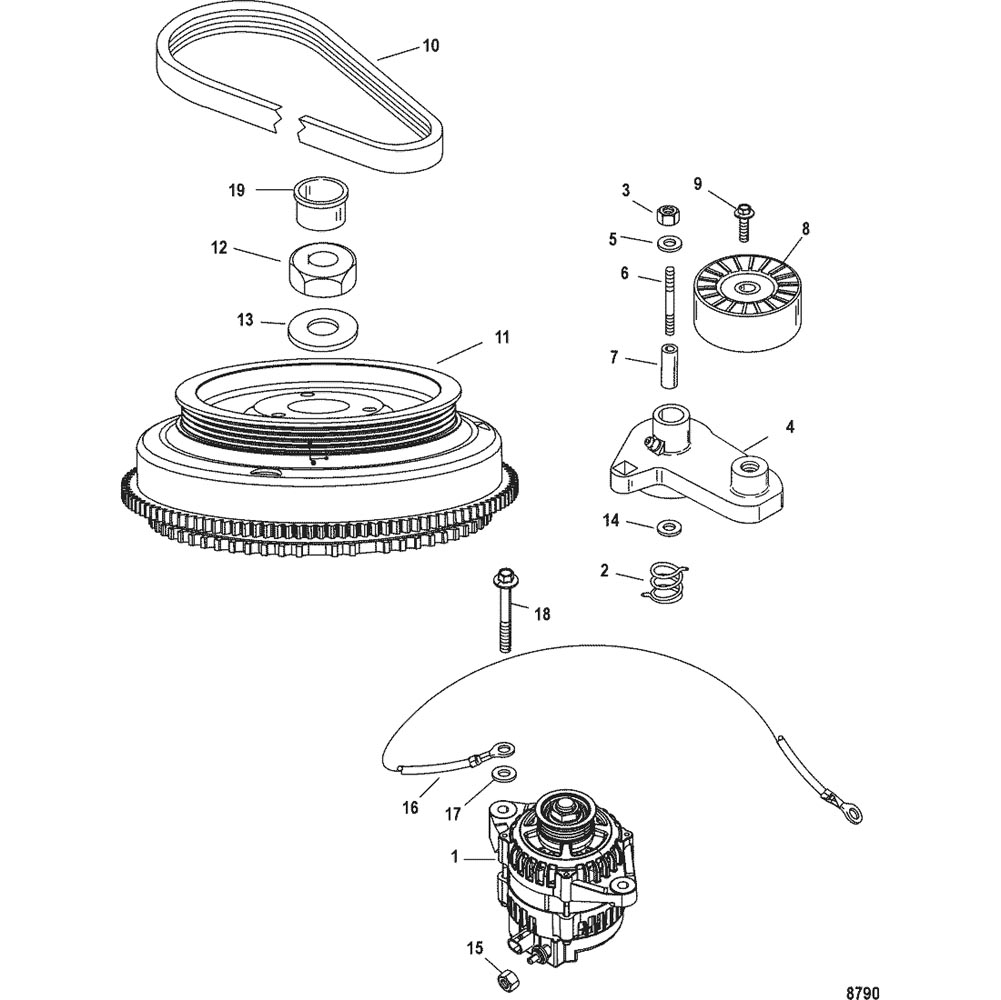

225 SPORT XS - Serial 1E002584 and Up - Flywheel/Alternator
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and above
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing, Drive Shaft (Sport Master)
- Gear Housing, Drive Shaft (Torque Master)
- Gear Housing, Propeller Shaft (Sport Master)
- Gear Housing, Propeller Shaft (Torque Master)
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 8M0064020 | ALTERNATOR | AR | 881247A1 | |||||
2 | 24-8523742 | SPRING | 1 | ||||||
3 | 11-400636 | NUT | 1 | ||||||
4 | 856815T2 | ARM TENSIONER ASSEMBLY | 1 | ||||||
5 | 12-4002320 | WASHER | 1 | ||||||
6 | 16-8M0034457 | STUD, (M10 x 85) | 1 | ||||||
6 | 16-8M0063255 | STUD, M10x92 | 1 | ||||||
7 | 23-8568941 | BUSHING | 1 | ||||||
8 | 852385A2 | PULLEY ASSEMBLY | 1 | ||||||
9 | 10-4010835 | SCREW, (M10 x 35) Hex Flange - Stainless Steel | 1 | ||||||
10 | 57-828507Q5 | BELT | 1 | ||||||
11 | 283-859619T1 | FLYWHEEL | 1 | ||||||
12 | 11-42979 | NUT, (M16) | 1 | ||||||
13 | 12-33001 | WASHER, (.641 x 1.250 x .190) | 1 | 68229 | |||||
14 | 12-47533 | WASHER, Thermostat | 1 | ||||||
15 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
16 | 84-856583A5 | CABLE ASSEMBLY, To Block | 1 | ||||||
17 | 12-4002319 | WASHER | 1 | ||||||
18 | 10-82130150 | SCREW, (M10 x 50) | 2 | ||||||
19 | 19-45907 | PLUG, Yellow | 1 |
