225 SPORT XS - Serial 1E002584 and Up - PCM Mounting

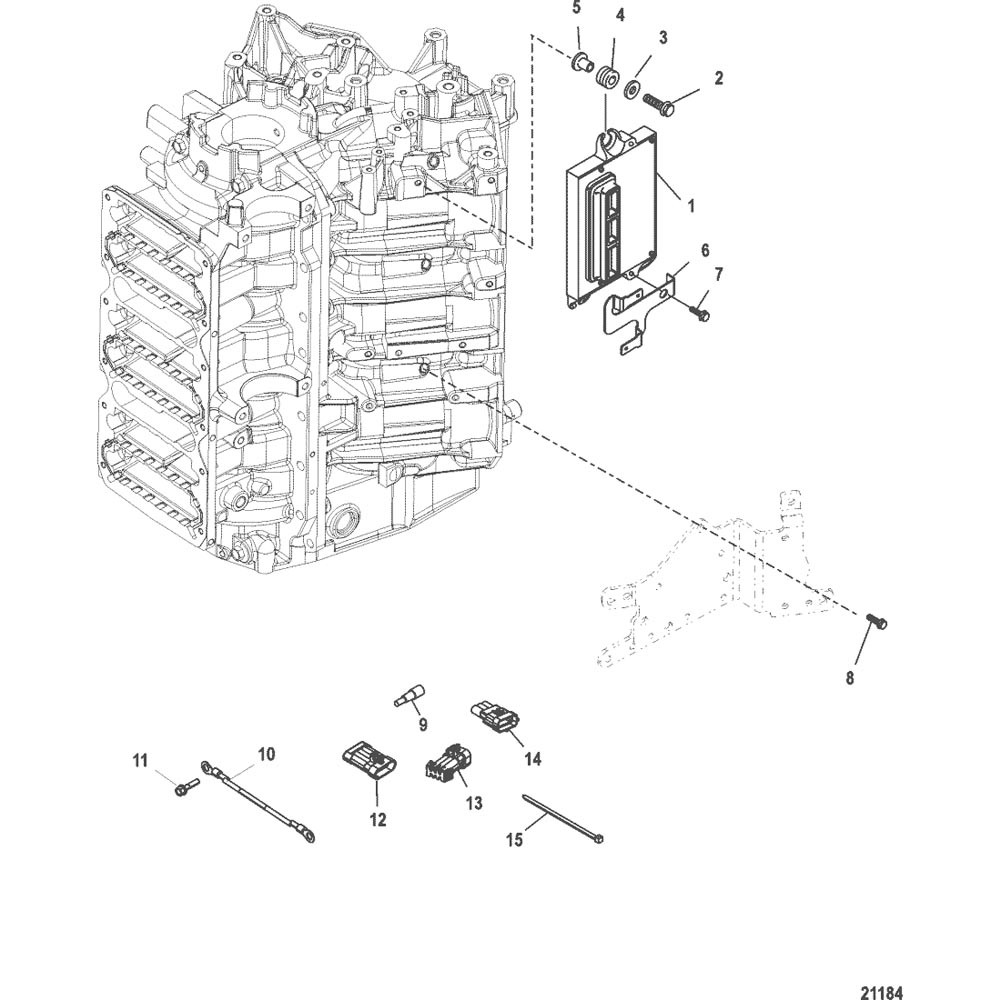

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and above
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing, Drive Shaft (Sport Master)
- Gear Housing, Drive Shaft (Torque Master)
- Gear Housing, Propeller Shaft (Sport Master)
- Gear Housing, Propeller Shaft (Torque Master)
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0108748 | PCM, Propulsion Control Module | 1 | 89790609T | |||||
| 2 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 3 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 4 | 25-834985 | GROMMET | 3 | ||||||
| 5 | 23-856954 | BUSHING | 3 | ||||||
| 6 | 54-891520001 | CLIP | 1 | ||||||
| 7 | 10-82129114 | SCREW, (M6 x 14) | 1 | ||||||
| 8 | 10-82130012 | SCREW, (M6 x 12) | 4 | ||||||
| 9 | 13541 | PLUG, Male | 1 | ||||||
| 10 | 84-88439A26 | CABLE ASSEMBLY, Battery - Negative | 1 | ||||||
| 11 | 10-81893420 | SCREW, (M8 x 20) | 1 | ||||||
| 12 | 830796A04 | CONNECTOR ASSEMBLY, Weather Cap - Male | 1 | ||||||
| 13 | 877613A02 | CONNECTOR ASSEMBLY, Weather Cap 6 Pin | 1 | ||||||
| 14 | 881176A1 | CAP ASSEMBLY, 3 Position-Male Connector | 1 | ||||||
| 15 | 54-816311T | TIE STRAP, (8.00 Inches) | AR |
