225 SPORT XS - Serial 1E002584 and Up - Swivel Bracket and Steering Arm

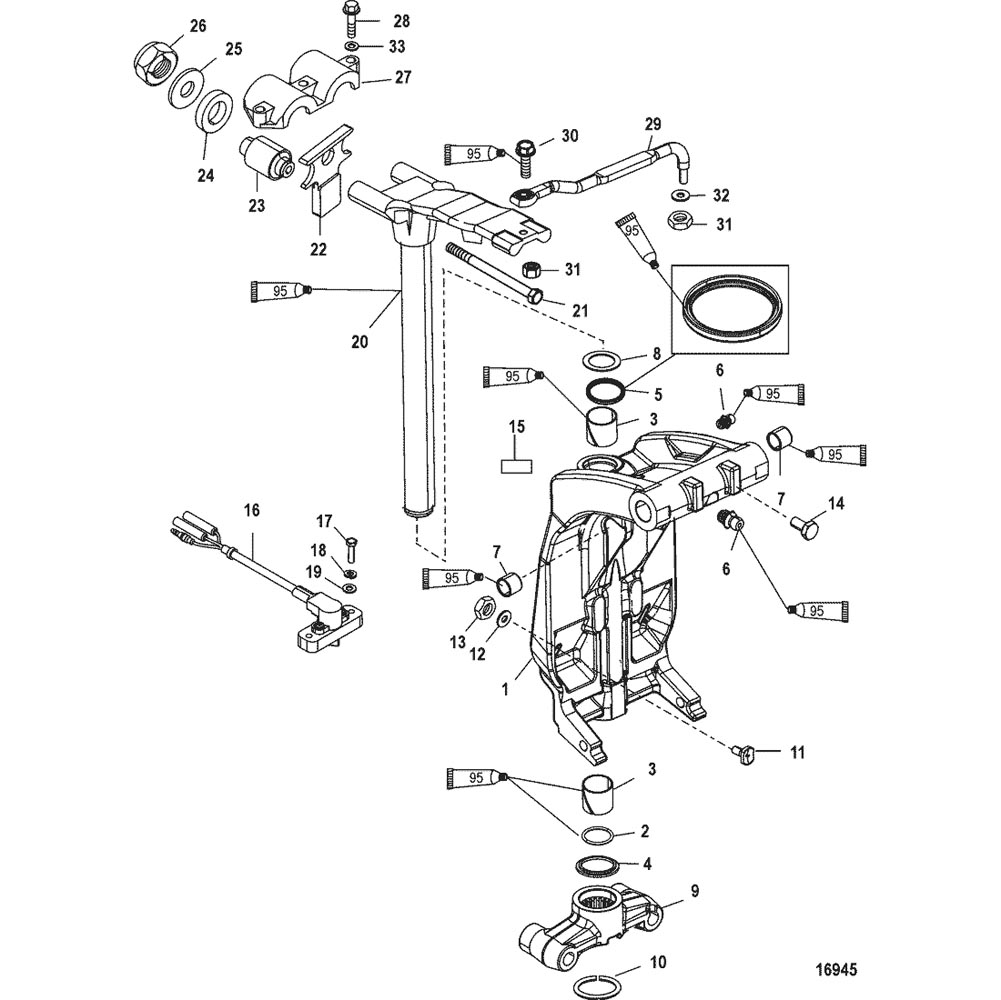

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and above
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing, Drive Shaft (Sport Master)
- Gear Housing, Drive Shaft (Torque Master)
- Gear Housing, Propeller Shaft (Sport Master)
- Gear Housing, Propeller Shaft (Torque Master)
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1499-8M0102865 | SWIVEL BRACKET ASSEMBLY, Black | 1 | 8710T20 | |||||
| 2 | 25-33504 | O-RING | 1 | ||||||
| 3 | 23-818764 | BUSHING | 2 | ||||||
| 4 | 23-816039 | SPACER | 1 | ||||||
| 5 | 26-87735 | SEAL, Oil (Lower) | 1 | ||||||
| 6 | 22-74036 | FITTING, Grease | 2 | ||||||
| 7 | 23-821207 | BUSHING | 2 | ||||||
| 8 | 12-816432 | THRUST WASHER | 1 | ||||||
| 9 | 826364T | YOKE, Bottom | 1 | 826364F1 | |||||
| 10 | 53-67684 | RING, Retaining | 1 | ||||||
| 11 | 8M0045383 | STRIKER PLATE | 2 | 996301 | |||||
| 12 | 13-58643 | LOCKWASHER, (.375) | 2 | ||||||
| 13 | 11-46335 | NUT, (.375-24) | 2 | ||||||
| 14 | 10-64014 | SCREW, (.250-28 x .500) | 2 | ||||||
| 15 | NSS | Decal-Serial Overlaminate | 1 | Not Sold Separate | |||||
| 16 | 859187A1 | SENDER ASSEMBLY, Trim | 1 | ||||||
| 17 | 10-852368 | SCREW, (#10-24 x .750) | 2 | ||||||
| 18 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 19 | 12-89302 | WASHER, (.203 x .406 x .040) | 2 | ||||||
| 20 | 17-826432A2 | SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel | 1 | ||||||
| 21 | 10-8M0000517 | SCREW, (M12 x 190) | 2 | ||||||
| 22 | 824998001 | BUMPER | 1 | ||||||
| 23 | 8M0055930 | MOUNT (Upper) | 2 | 841970 | |||||
| 24 | 12-8154371 | WASHER | 2 | ||||||
| 25 | 12-815436 | WASHER | 2 | ||||||
| 26 | 11-896963 | NUT, (M12) | 2 | ||||||
| 27 | 8M0036783 | CLAMP | 1 | 813769 | |||||
| 28 | 10-84036240 | SCREW, (M8 x 40) | 3 | No Longer Available | |||||
| 28 | 10-8M0084475 | SCREW, (M8 x 40) | 3 | 8M0033179 | |||||
| 29 | 92876A12 | LINK ROD ASSEMBLY | 1 | ||||||
| 30 | 10-849838 | SCREW, (.375-24 x 1.250) | 1 | ||||||
| 31 | 11-826709113 | NUT, (.375-24) Stainless Steel | 2 | ||||||
| 32 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 2 | ||||||
| 33 | 12-847541 | WASHER | 3 |
