225 SPORT XS - Serial 1E002584 and Up - Driveshaft Housing and Exhaust Tube

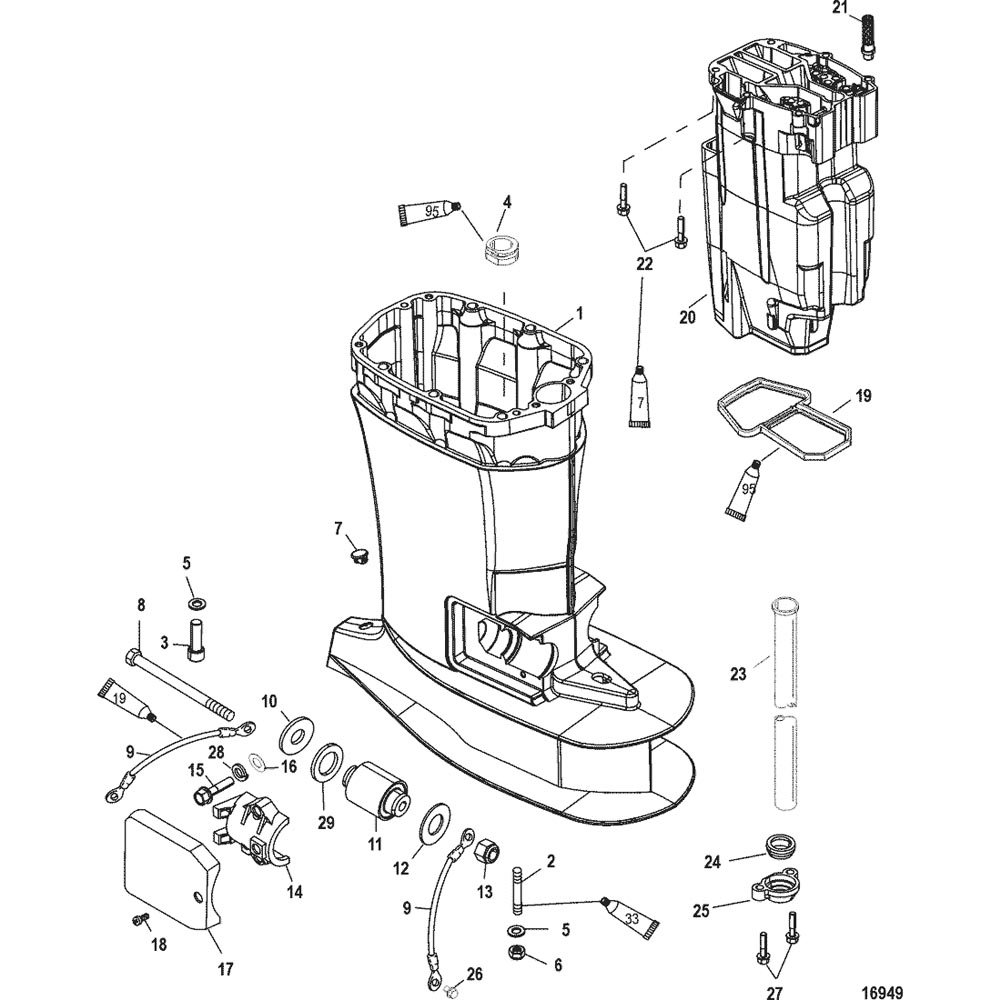

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and above
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing, Drive Shaft (Sport Master)
- Gear Housing, Drive Shaft (Torque Master)
- Gear Housing, Propeller Shaft (Sport Master)
- Gear Housing, Propeller Shaft (Torque Master)
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3518-832937A06 | HOUSING ASSEMBLY, Driveshaft | 1 | 832937A05 | |||||
| 2 | 16-8M0008031 | STUD, (M12 x 52) | 4 | 856983 | |||||
| 2 | 16-8M0045821 | STUD, (M12 x 65) | 4 | 848843 | |||||
| 3 | 10-892860 | SCREW, (M12 x 35), Internal Hex | 1 | ||||||
| 3 | 10-857136 | SCREW, (M12 x 35 MM), External Hex | 1 | ||||||
| 4 | 25-8331231 | GROMMET | 1 | ||||||
| 5 | 12-4002321 | WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel | 4 | ||||||
| 6 | 11-896895 | NUT, (M12) | 4 | ||||||
| 7 | 19-64649 | PLUG | 1 | ||||||
| 8 | 10-898834 | BOLT, (M14 x 178) | 2 | ||||||
| 9 | 88238A10 | CABLE ASSEMBLY, Ground | 2 | ||||||
| 10 | 12-815432 | WASHER, (.562 x 2.00 x .125) | 2 | ||||||
| 11 | 8M0055931 | MOUNT (Lower) | 2 | 840361 | |||||
| 12 | 12-825190 | WASHER | 2 | ||||||
| 13 | 11-896602 | NUT, (M14) | 2 | ||||||
| 14 | 8186442 | CLAMP | 2 | No Longer Available | |||||
| 15 | 10-84036240 | SCREW, (M8 x 40) | 4 | No Longer Available | |||||
| 16 | 12-847541 | WASHER | 4 | ||||||
| 17 | 8M0001136 | COVER, Lower Mount | 2 | No Longer Available | |||||
| 18 | 10-69079 | SCREW, (#10-16 x .440) | 2 | ||||||
| 19 | 8329321 | SEAL | 1 | ||||||
| 20 | 833116A4 | TUBE ASSEMBLY, Exhaust | 1 | ||||||
| 21 | 35-8M0026113 | STRAINER | 1 | 8524052 | |||||
| 22 | 10-81893435 | SCREW, (M8 x 35) | 6 | ||||||
| 23 | 32-8M0042785 | TUBE, Water | 1 | 8329417 | |||||
| 24 | 832940001 | SEAL | 1 | ||||||
| 25 | 8329391 | CLAMP | 1 | ||||||
| 26 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel | 1 | ||||||
| 27 | 10-81893435 | SCREW, (M8 x 35) | 2 | ||||||
| 28 | 13-72521 | LOCKWASHER, Internal Tooth | 1 | ||||||
| 29 | 12-8154331 | WASHER, (1.25 x 2.00 x .19) | 2 |
