225 SPORT XS - Serial 1E002584 and Up - Throttle Linkage

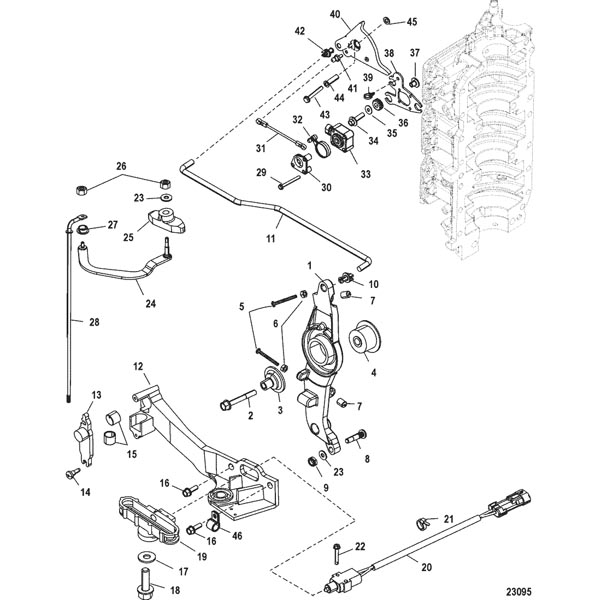

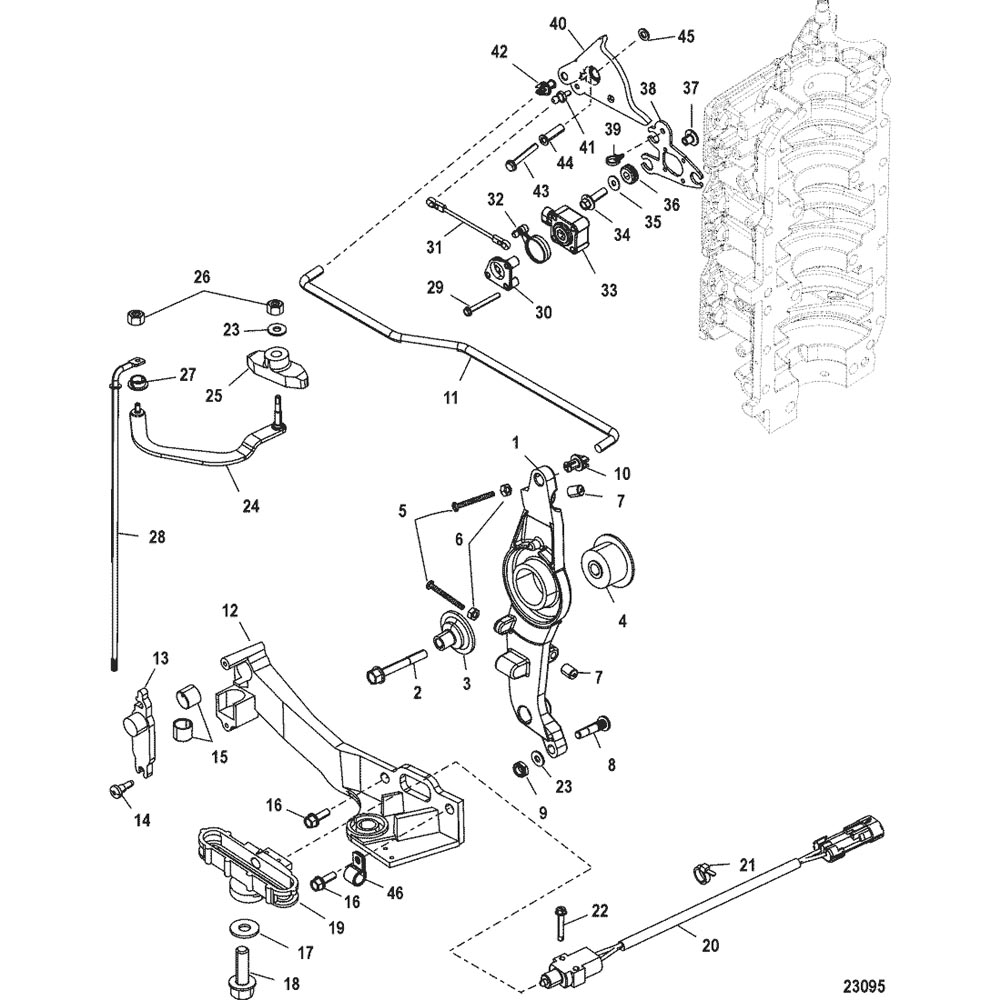

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and above
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing, Drive Shaft (Sport Master)
- Gear Housing, Drive Shaft (Torque Master)
- Gear Housing, Propeller Shaft (Sport Master)
- Gear Housing, Propeller Shaft (Torque Master)
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0040987 | LEVER | 1 | 8252682 | |||||
| 2 | 10-81893460 | SCREW, (M8 x 60) | 1 | ||||||
| 3 | 23-887605 | BUSHING | 1 | ||||||
| 4 | 23-821113 | BUSHING | 1 | ||||||
| 5 | 10-40124 | SCREW, (M6 x 55) | 2 | ||||||
| 6 | 11-400212 | NUT, (M6) Stainless Steel | 2 | ||||||
| 7 | 42942 | CAP | 2 | ||||||
| 8 | 42927 | INSERT | 1 | ||||||
| 9 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 10 | 23-932481 | BUSHING | 1 | ||||||
| 11 | 884834 | LINK | 1 | ||||||
| 12 | 824010T05 | BRACKET, Anchor | 1 | 8240102 | |||||
| 13 | 824016 | LATCH | 1 | ||||||
| 14 | 10-42975 | DRIVE SCREW | 2 | ||||||
| 15 | 824015 | CUP, Barrel Retainer | 2 | ||||||
| 16 | 10-82155025 | SCREW, (M8 x 25 MM) Stainless Steel | 2 | ||||||
| 17 | 12-43430 | WASHER | 1 | ||||||
| 18 | 10-82155025 | SCREW, (M8 x 25 MM) Stainless Steel | 1 | ||||||
| 19 | 8M0039052 | BRACKET, Slide | 1 | 896662 | |||||
| 20 | 87-8M0052939 | SWITCH | 1 | 889514A01 | |||||
| 21 | 54-816311T | TIE STRAP, (8.00 Inches) | 1 | ||||||
| 22 | 10-82470620 | SCREW, (M3.5 x 20) | 2 | ||||||
| 23 | 12-35459 | WASHER | 2 | ||||||
| 24 | 883142A03 | SHIFT LINK KIT | 1 | ||||||
| 25 | 8539683 | --SLIDE | 1 | ||||||
| 26 | 11-401386 | NUT, (M6) Stainless Steel | 2 | ||||||
| 27 | 23-42994 | BUSHING | 1 | ||||||
| 28 | 8M0036408 | SHIFT SHAFT, Upper | 1 | 896669001 | |||||
| 28 | 8M0046246 | SHIFT SHAFT, Upper | 1 | 896669002 | |||||
| 29 | 10-40011113 | SCREW, (M5 x 45) Stainless Steel | 3 | ||||||
| 30 | 8582261 | COVER | 1 | ||||||
| 31 | 8M0008111 | LINK | 1 | ||||||
| 32 | 883081 | LEVER | 1 | ||||||
| 33 | 83295211 | INDICATOR, Throttle Position | 1 | ||||||
| 34 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 35 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 36 | 25-834985 | GROMMET | 3 | ||||||
| 37 | 23-856954 | BUSHING | 3 | ||||||
| 38 | 8544862 | BRACKET | 1 | ||||||
| 39 | 54-858932 | CLIP | 1 | ||||||
| 40 | 858353T10 | CAM ASSEMBLY | 1 | 858353A09 | |||||
| 41 | 8235694 | --BALL, Threaded | 1 | ||||||
| 42 | 23-932481 | --BUSHING | 1 | ||||||
| 43 | 10-40011155 | SCREW, (M8 x 55) Stainless Steel | 1 | ||||||
| 44 | 23-8807371 | BUSHING | 1 | ||||||
| 45 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 1 | ||||||
| 46 | 54-475451 | CLIP | 1 |
