225 SPORT XS - Serial 1E002584 and Up - Water Hoses

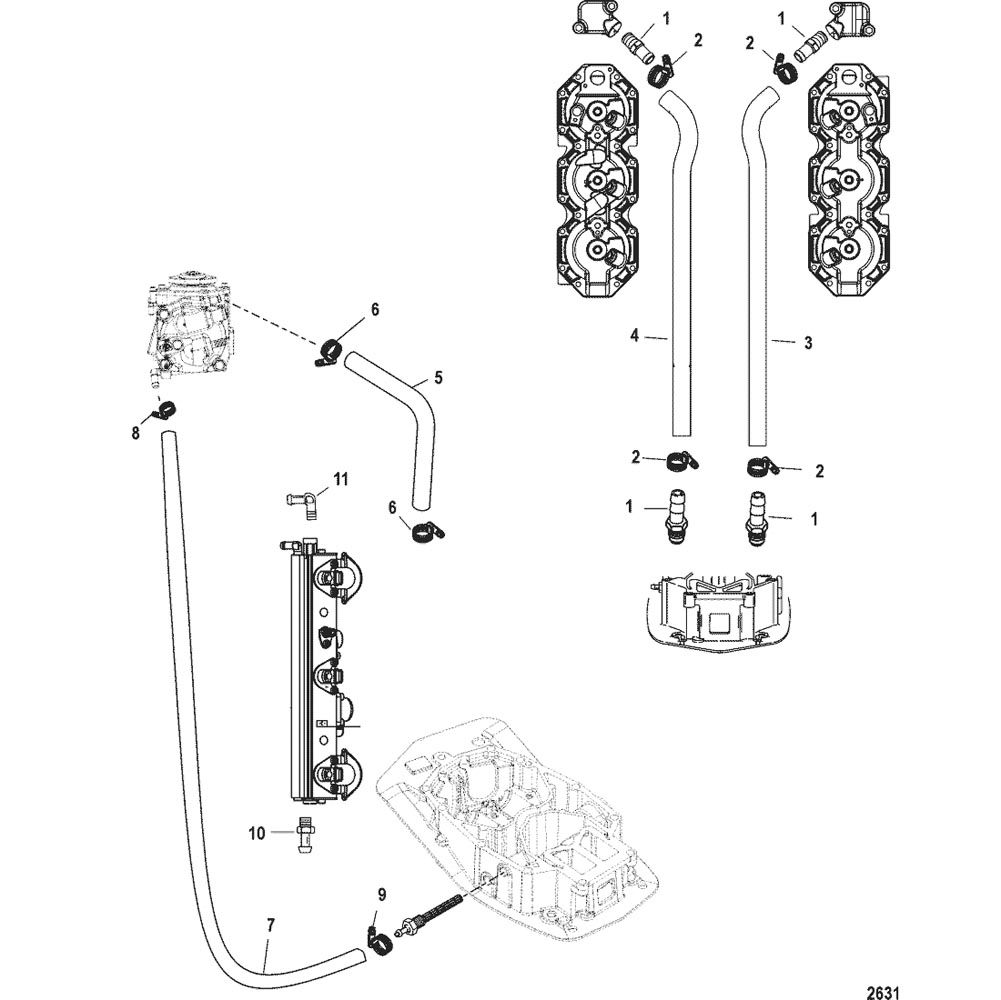

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and above
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing, Drive Shaft (Sport Master)
- Gear Housing, Drive Shaft (Torque Master)
- Gear Housing, Propeller Shaft (Sport Master)
- Gear Housing, Propeller Shaft (Torque Master)
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-858855 | FITTING, Straight | 4 | ||||||
| 2 | 54-855228 | CLAMP, (25.6 mm) | 4 | 888988014 | |||||
| 3 | 32-859090001 | HOSE, Starboard Dump | 1 | ||||||
| 4 | 32-859089001 | HOSE, Port Dump | 1 | ||||||
| 5 | 32-856839 | TUBING | 1 | ||||||
| 6 | 54-815504104 | CLAMP, Worm Gear | 2 | ||||||
| 7 | 32-774572 | HOSE, (48.00 Inches Bulk) (Cut to 21 Inches) | 1 | ||||||
| 8 | 54-815504104 | CLAMP, Worm Gear | 2 | ||||||
| 9 | 54-815504104 | CLAMP, Worm Gear | 2 | ||||||
| 10 | 22-291112 | FITTING | 1 | ||||||
| 11 | 22-996642 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 1 | ||||||
| - | 61-843034A07 | POWERHEAD ASSEMBLY | 1 |
