250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Bottom Cowl

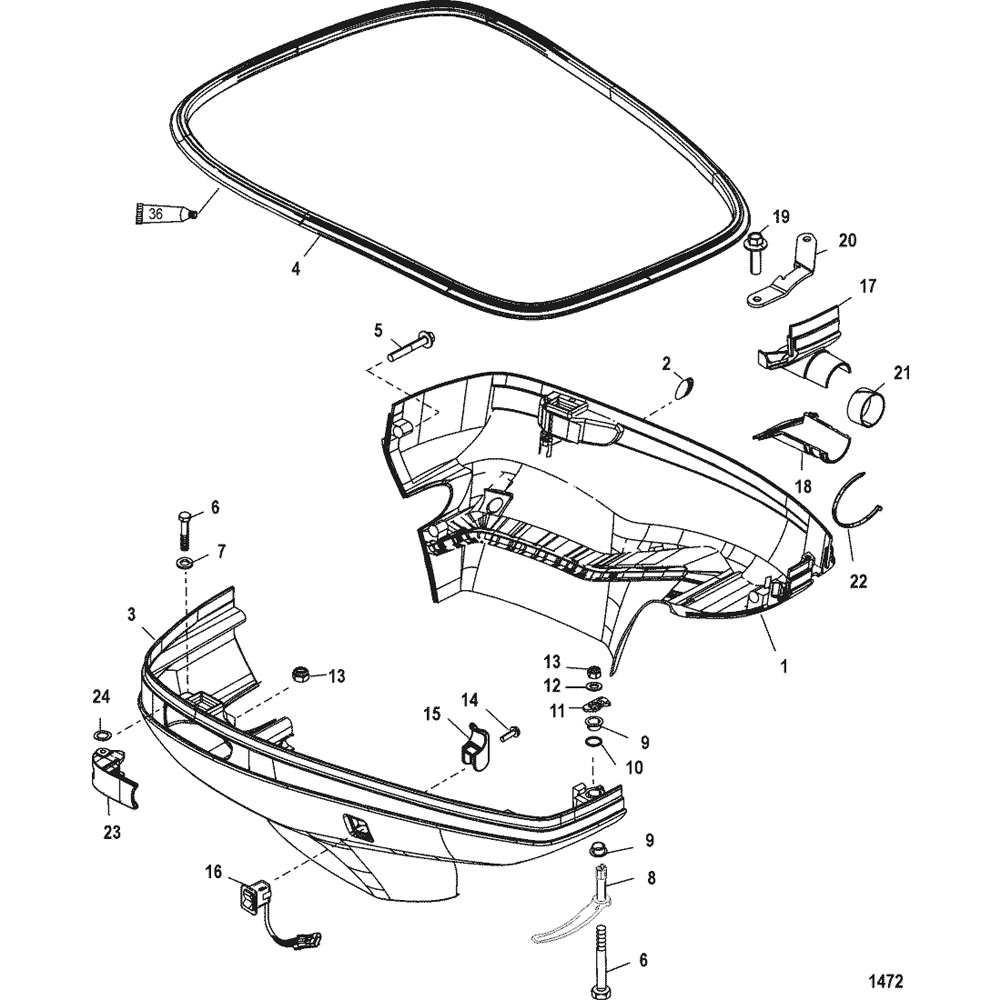

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Cap
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oiling System
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate
- Speedometer Pickup
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 113-850302A1 | BOTTOM COWL, Port, Port | 1 | No Longer Available | |||||
| 2 | 854367001 | PLUG | 1 | ||||||
| 3 | 113-850301A1 | BOTTOM COWL, Starboard, Starboard | 1 | No Longer Available | |||||
| 4 | 8M0043274 | SEAL, (44.00 Inches) | 2 | 8253183 | |||||
| 5 | 10-82130040 | SCREW, (M6 x 40) | 4 | ||||||
| 6 | 10-824868 | SCREW, (M6 x 75) | 3 | ||||||
| 7 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 8 | 8M0053903 | FRONT HANDLE | 1 | 850684F1 | |||||
| 9 | 23-335891 | BUSHING | 2 | ||||||
| 10 | 25-48462 | O-RING, (.614 x .070) | 1 | ||||||
| 11 | 8219423 | PAWL | 1 | ||||||
| 12 | 12-69057 | WASHER, (.281 x .734 x .063) | 1 | ||||||
| 13 | 11-401366 | NUT, (M6) Stainless Steel | 3 | ||||||
| 14 | 10-8214281 | SCREW, (#10-16 x .625) | 1 | ||||||
| 15 | 54-822873 | CLIP | 1 | ||||||
| 16 | 87-8M0042300 | SWITCH, Trim | 1 | 8569901 | |||||
| 17 | 54-8M8027677 | RIGGING KIT, Upper | 1 | 859359A2 | |||||
| 18 | NSS | Lower Clamp | 1 | Not Sold Separate | |||||
| 19 | 10-82130012 | SCREW, (M6 x 12) | 2 | ||||||
| 20 | NSS | Strap | 1 | Not Sold Separate | |||||
| 21 | 859343 | FOAM | 1 | ||||||
| 22 | 54-850181 | TIE STRAP, (11.750 Inches) | 2 | ||||||
| 23 | 852361T1 | HANDLE, Cowl | 2 | No Longer Available | |||||
| 24 | 13-29402 | WAVE WASHER | 2 |
