250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Water Hoses

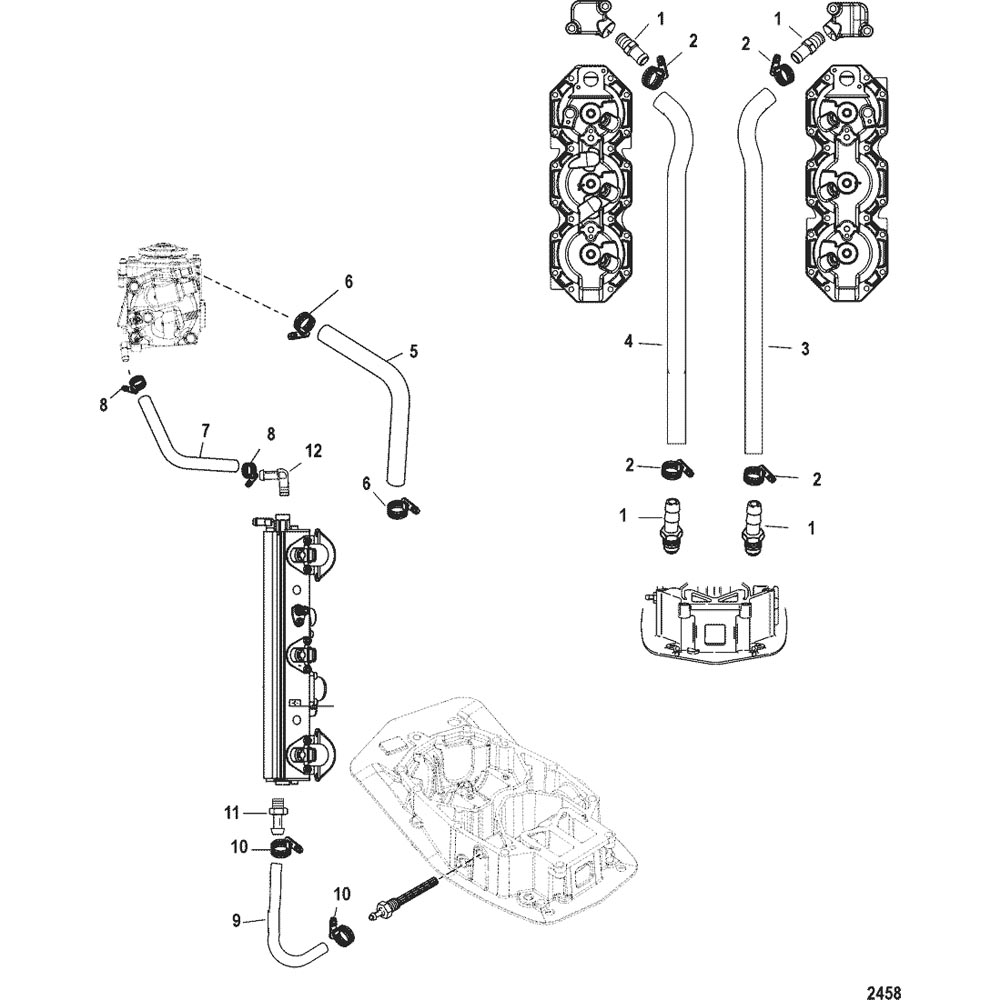

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 22-8552141         FITTING 4
2 54-815504406         CLAMP, Worm Gear 4
3 32-859090001         HOSE, Dump, Starboard 1 859090
4 32-859089001         HOSE, Dump, Port 1 859089
5 32-856839         TUBING 1
6 54-815504104         CLAMP, Worm Gear 2
7 32-858807         HOSE 1
8 54-815504104         CLAMP, Worm Gear 2
9 32-858865         HOSE 1
10 54-815504104         CLAMP, Worm Gear 2
11 22-291112         FITTING 1
12 22-996642         FITTING, Elbow 90 Degree (.125-27 x .250) Nylon 1
- 61-841017A52         POWERHEAD ASSEMBLY 1 841017A04
