Your shopping cart is currently empty.
250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Flywheel/Alternator

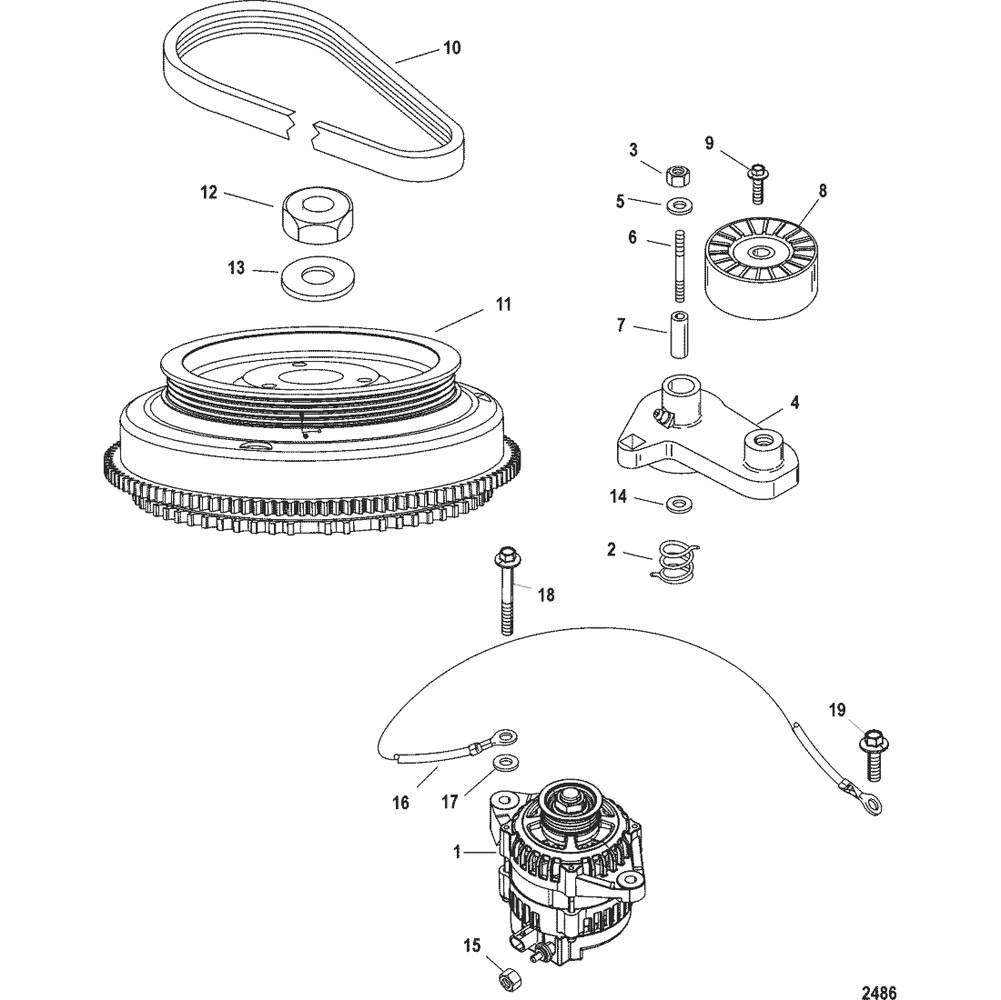

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Cap
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oiling System
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate
- Speedometer Pickup
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0064020 | ALTERNATOR | 1 | 881247A1 | |||||
| 2 | 24-8523742 | SPRING | 1 | ||||||
| 3 | 11-400636 | NUT | 1 | ||||||
| 4 | 856815T2 | ARM TENSIONER ASSEMBLY | 1 | ||||||
| 5 | 12-4002320 | WASHER | 1 | ||||||
| 6 | 16-8M0063255 | STUD, (M10 x 91) | 1 | 858778 | |||||
| 7 | 23-8568941 | BUSHING | 1 | ||||||
| 8 | 852385A2 | PULLEY ASSEMBLY | 1 | ||||||
| 9 | 10-4010835 | SCREW, (M10 x 35) Hex Flange - Stainless Steel | 1 | ||||||
| 10 | 57-828507Q5 | BELT | 1 | ||||||
| 11 | 283-859619T1 | FLYWHEEL | 1 | ||||||
| 12 | 11-42979 | NUT, (M16) | 1 | ||||||
| 13 | 12-33001 | WASHER, (.641 x 1.250 x .190) | 1 | 68229 | |||||
| 14 | 12-47533 | WASHER, Thermostat | 1 | ||||||
| 15 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 16 | 84-856583A5 | CABLE ASSEMBLY | 1 | ||||||
| 17 | 12-4002319 | WASHER | 1 | ||||||
| 18 | 10-82130150 | SCREW, (M10 x 50) | 2 | ||||||
| 19 | 10-82130012 | SCREW, (M6 x 12) | 1 |
