250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Fuel Rails

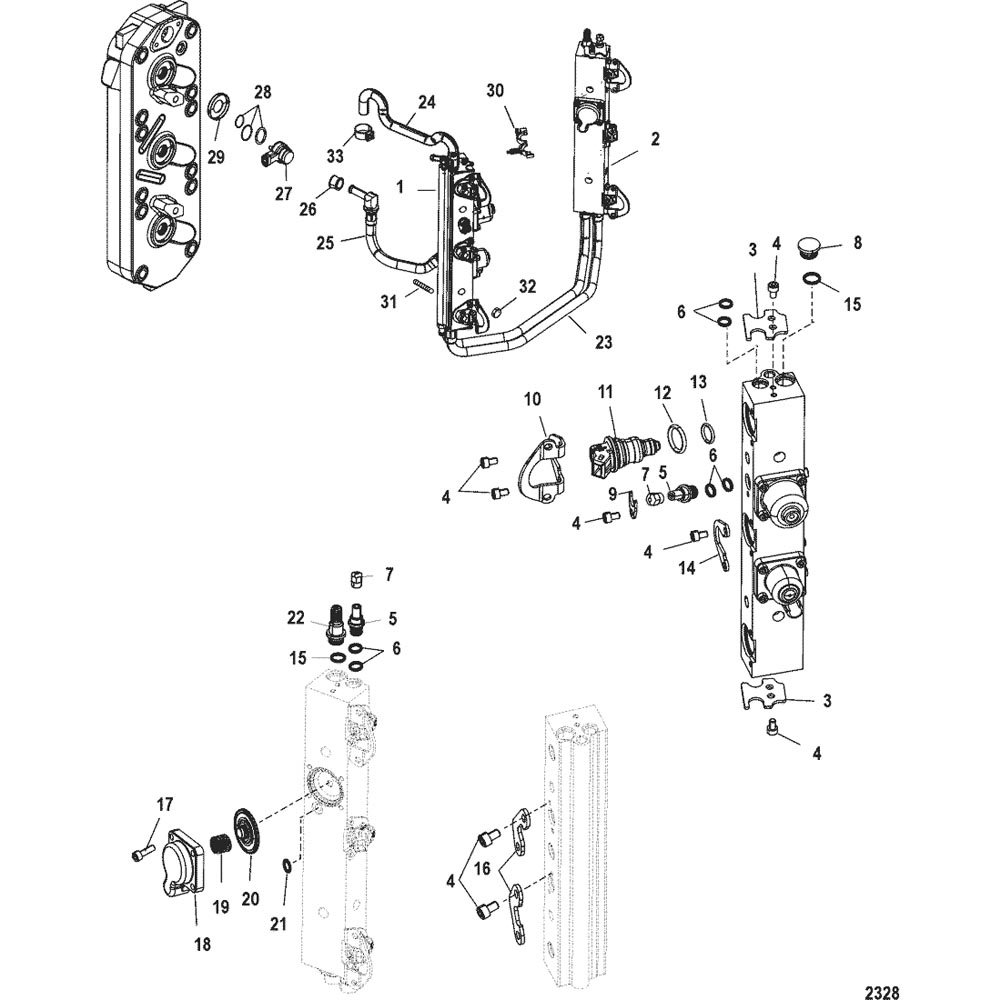

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Cap
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oiling System
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate
- Speedometer Pickup
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 844144T01 | FUEL RAIL, Port | 1 | 884429T17 | No Longer Available | ||||
| 2 | 844145T01 | FUEL RAIL ASSEMBLY, Starboard | 1 | 884430T07 | No Longer Available | ||||
| 3 | 54-804830 | CLAMP | 4 | ||||||
| 4 | 804525001 | SCREW PACKAGE, (M5 x 8) (2 Per) | 11 | 804525 | No Longer Available | ||||
| 5 | 8M0047053 | VALVE ASSEMBLY, (.375 Inch Diameter) | 2 | 883542 | |||||
| 6 | 25-804840 | O-RING KIT | 1 | ||||||
| 7 | 22-805515 | CAP, Shrader Valve - Brass | 2 | ||||||
| 8 | 19-804835 | PLUG | 1 | ||||||
| 9 | 54-8M0041097 | CLAMP | 1 | ||||||
| 10 | 54-8048311 | CLAMP | 4 | ||||||
| 11 | 804528 | INJECTOR | 6 | ||||||
| 12 | 25-804530 | O-RING KIT, Contains 6 pcs | 1 | ||||||
| 13 | 25-804529 | O-RING KIT, Contains 6 pcs | 1 | ||||||
| 14 | 804522 | CLAMP | 2 | ||||||
| 15 | 804532 | O-RING KIT (16 Per Kit) | 1 | ||||||
| 16 | 54-804832 | CLAMP | 2 | ||||||
| 17 | 804526 | SCREW PACKAGE, (M5 x 16) (2 Per) | 4 | ||||||
| 18 | 804535001 | COVER | 1 | ||||||
| 19 | 24-804534001 | SPRING | 1 | ||||||
| 20 | 804533 | DIAPHRAGM ASSEMBLY | 1 | ||||||
| 21 | 25-804536 | O-RING | 1 | ||||||
| 22 | 22-804836 | FITTING | 1 | ||||||
| 23 | 32-804827 | HOSE | 1 | No Longer Available | |||||
| 24 | 32-889310 | HOSE, Fuel Supply | 1 | No Longer Available | |||||
| 25 | 32-889311 | HOSE, Fuel By Pass | 1 | No Longer Available | |||||
| NS | 25-804840 | O-RING KIT | 1 | ||||||
| 26 | 26-888852 | SEAL, Fuel Director | 1 | ||||||
| 27 | 8M6001744 | INJECTOR ASSEMBLY, Air | 6 | 884595A02 | |||||
| 28 | 26-804875 | SEAL KIT | 1 | ||||||
| 29 | 12-828694A1 | WASHER ASSEMBLY, Cupped | 6 | ||||||
| 30 | 54-859376 | CLIP, Conduit | 4 | ||||||
| 31 | 16-8M0063255 | STUD, (M10 x 91) | 4 | 858778 | |||||
| 32 | 11-826292 | NUT, (M10) Brass/Nickel Plated | 4 | ||||||
| 33 | 54-856880 | CLAMP, Hose (15.3) | 1 |
