250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Oiling System

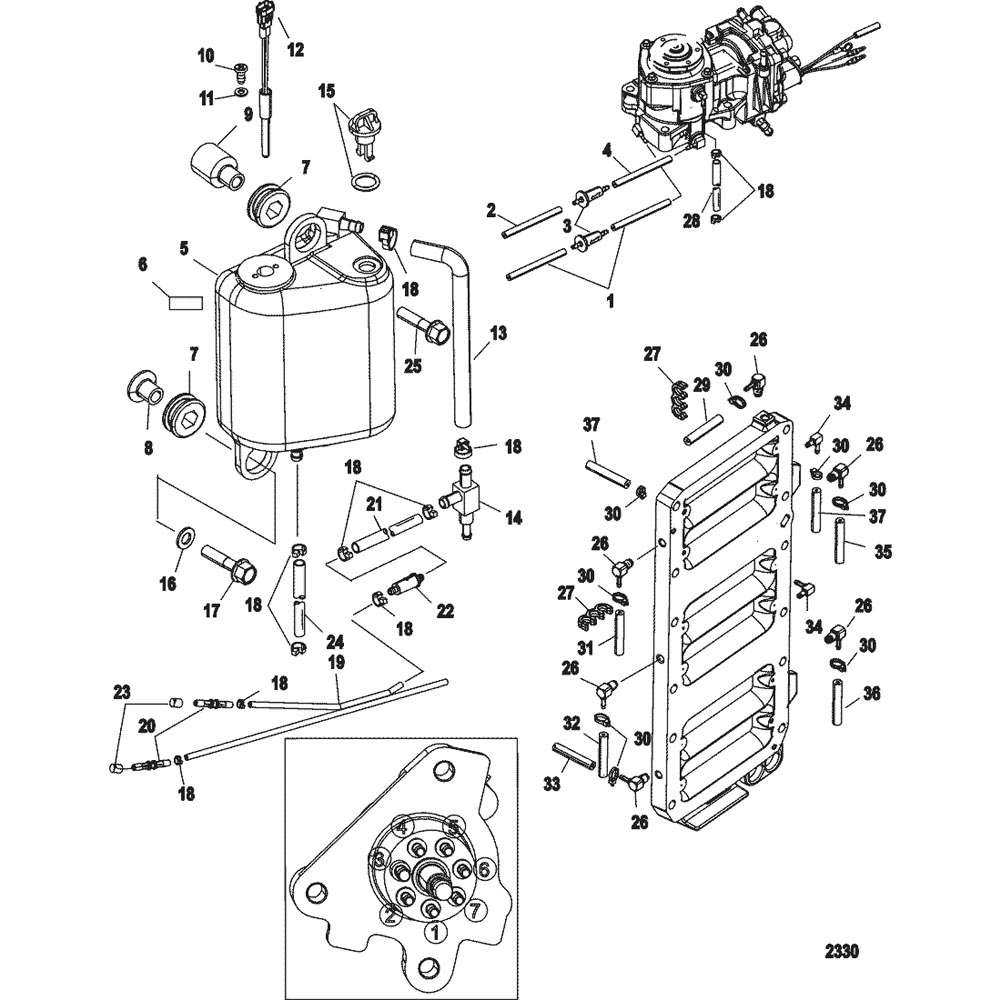

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Cap
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oiling System
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate
- Speedometer Pickup
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 11.50 Inches) | 2 | 85606065 | |||||
| 2 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 5 Inches) | 1 | 85606065 | |||||
| 3 | 35-8M0042285 | FILTER, Fuel | 2 | 18206001 | |||||
| 4 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 9 Inches) | 1 | 85606065 | |||||
| 5 | 1200-8M0064075 | TANK, Oil | 1 | 884525T1 | |||||
| 6 | NSS | Decal-Reservoir | 1 | Not Sold Separate | |||||
| 7 | 25-855362001 | GROMMET | 3 | ||||||
| 8 | 23-855364 | BUSHING | 2 | ||||||
| 9 | 23-883050 | SPACER | 1 | ||||||
| 10 | 10-58376 | SCREW, (.164-18 x .375) | 1 | ||||||
| 11 | 12-72761 | WASHER, (.203 x .562 x .060) Stainless Steel | 1 | ||||||
| 12 | 87-856156T04 | SWITCH | 1 | 856156A4 | |||||
| 13 | 32-885553 | HOSE | 1 | ||||||
| 14 | 22-424254 | FITTING | 1 | ||||||
| 15 | 19-887609 | PLUG | 1 | ||||||
| 16 | 12-4002318 | WASHER | 3 | ||||||
| 17 | 10-81893435 | SCREW, (M8 x 35) | 2 | ||||||
| 18 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 19 | 32-8752891 | HOSE | 1 | ||||||
| 20 | 22-858955 | CONNECTOR | 2 | ||||||
| 21 | 32-875283 | HOSE, (2.00 Inches) | 1 | ||||||
| 22 | 35-875284T01 | FILTER, Oil - In Line | 1 | 875284001 | |||||
| 23 | NSS | Plug | 2 | Not Sold Separate | |||||
| 24 | 32-892830053 | HOSE, (24.00 Inches Braided) (Cut to 22 Inches) | 1 | ||||||
| 25 | 10-81893460 | SCREW, (M8 x 60) | 1 | ||||||
| 26 | 21-858870 | CHECK VALVE | 6 | ||||||
| 27 | 859230T | RETAINER | 2 | ||||||
| 28 | 32-8M0054213 | HOSE, (40.00 Inches Bulk) (Cut to 34 Inches) | 1 | 85583466 | |||||
| 29 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 19.50 Inches) | 1 | 85606065 | |||||
| 30 | 56762 | TIE STRAP, (4.00 Inches) | AR | ||||||
| 31 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 11 Inches) | 1 | 85606065 | |||||
| 32 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 6 Inches) | 1 | 85606065 | |||||
| 33 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 4 Inches) | 1 | 85606065 | |||||
| 34 | 22-883988 | ELBOW | 2 | ||||||
| 35 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 22 Inches) | 1 | 85606065 | |||||
| 36 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 16.50 Inches) | 1 | 85606065 | |||||
| 37 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 7 Inches) | 2 | 85606065 |
