250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Gear Housing, Driveshaft-Standard/Counter-FleetMaster

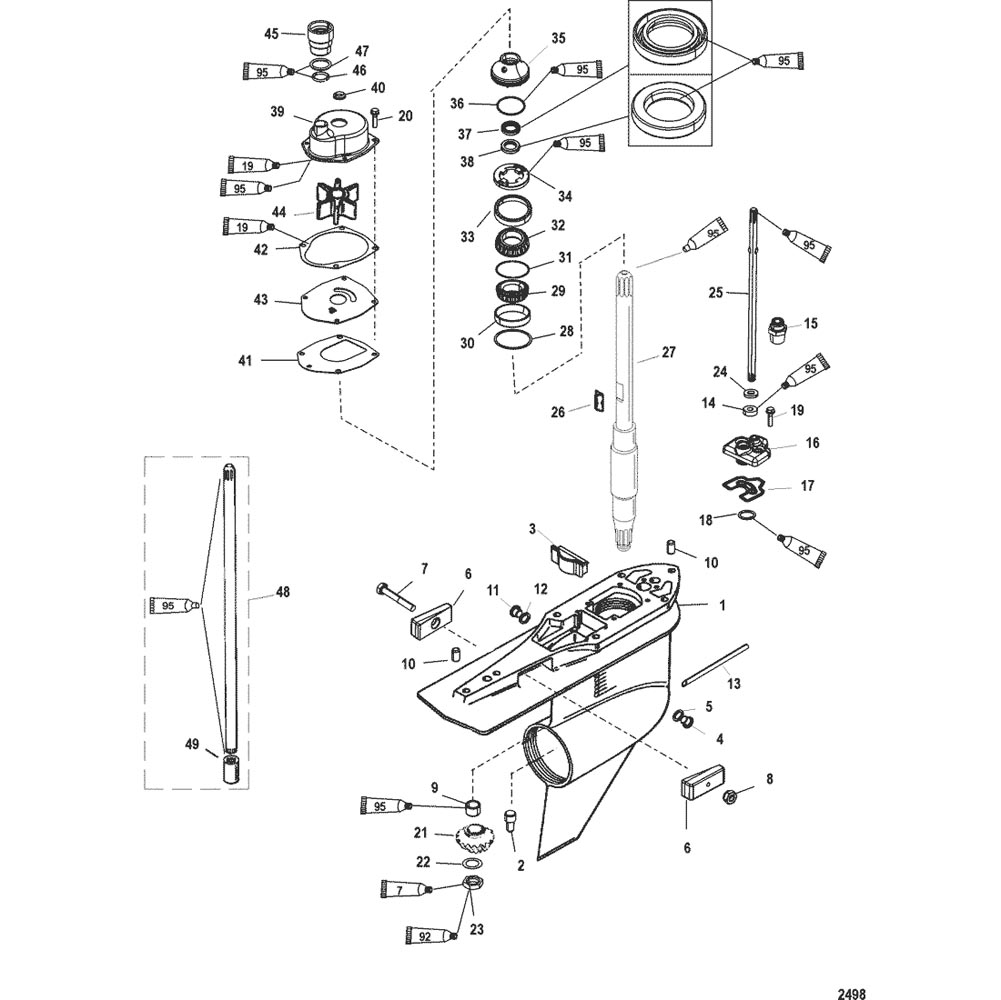

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1623-842004T04         GEAR HOUSING ASSEMBLY, Complete, Standard (X-Long) 1 859399T22
- 1623-842004T06         GEAR HOUSING ASSEMBLY, Complete, Standard (XX-Long) 1 859399T25
- 1623-842004T05         GEAR HOUSING ASSEMBLY, Complete, Counter Rotation (X-Long) 1 859399T23
- 1623-842004T07         GEAR HOUSING ASSEMBLY, Complete, Counter Rotation (XX-Long) 1 859399A26
1 1623-859399T24         GEAR HOUSING ASSEMBLY, Complete, Basic 1
2 17-379721         PIN 1
3 821526001         FILLER BLOCK 1 821526
4 10-79953Q04         SCREW KIT, (.375-16 x .250) Drain 1 79953Q2
5 12-191833         SEAL 1
6 97-826134Q         ANODE 2
7 10-4000333         SCREW, (M6 x 40) 1
8 11-401386         NUT, (M6) Stainless Steel 1
9 31-42647A1         BEARING ASSEMBLY, Roller 1
10 17-43044         PIN, Dowel - Without Hole (.375 x .625) 2
11 10-79953Q04         SCREW KIT, (.375-16 x .250) Drain 1 79953Q2
12 12-191833         SEAL 1
13 859402         PITOT TUBE 1
14 26-8164641         SEAL, Oil 1
15 22-881866         FITTING 1
16 858934         COVER 1
17 27-858935         GASKET 1
18 25-36318         O-RING, (.799) 2
19 10-82130016         SCREW, (M6 x 16) 2
20 10-82130016         SCREW, (M6 x 16) 4
21 NSS         Pinion Gear (PART OF 43-859321A3 or 43-828695A1) 1 Not Sold Separate
22 12-92721         WASHER 1
23 11-35921         NUT, (.625-18) 1
24 12-77674         WASHER 1
25 824145         SHIFT SHAFT, Lower 1
26 28-8M0032833         KEY 1 43037
27 45-859348         DRIVESHAFT 1
27 45-881943         DRIVESHAFT 1
28 15-38657A1         SHIM ASSEMBLY AR No Longer Available
29 31-48939A2         BEARING, Tapered Roller 1
30 NSS         Cup 1 Not Sold Separate
31 15-42637A1         SHIM SET AR No Longer Available
32 31-36387A1         BEARING ASSEMBLY, Roller/Cup 1
33 NSS         Cup 1 Not Sold Separate
34 8245191         RETAINER 1
35 807929A1         CARRIER ASSEMBLY 1
36 25-896523         O-RING, (2.175 x .175) 1 90011
37 26-66302         SEAL, Oil 1
38 26-66302         SEAL, Oil 1
39 817275A5         REBUILD KIT, Water Pump 1
40 26-816575A2         SEAL KIT 1
41 27-430331         GASKET 1
42 27-8172771         GASKET 1
43 8172761         FACEPLATE 1
44 47-43026T2         IMPELLER 1
45 832942A1         COUPLING ASSEMBLY 1
46 25-21836         O-RING, (.796 x .139) 1
47 25-35027         O-RING, (1.046) 1
48 45-827755A1         EXTENSION KIT, Driveshaft (X-Long) 1 No Longer Available
49 823902         COUPLING (X-Long) 1
- 26-816575A4         SEAL KIT, Gear Housing 1
- 817275A5         REBUILD KIT, Water Pump 1
