250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Starboard Center Main Oiling System

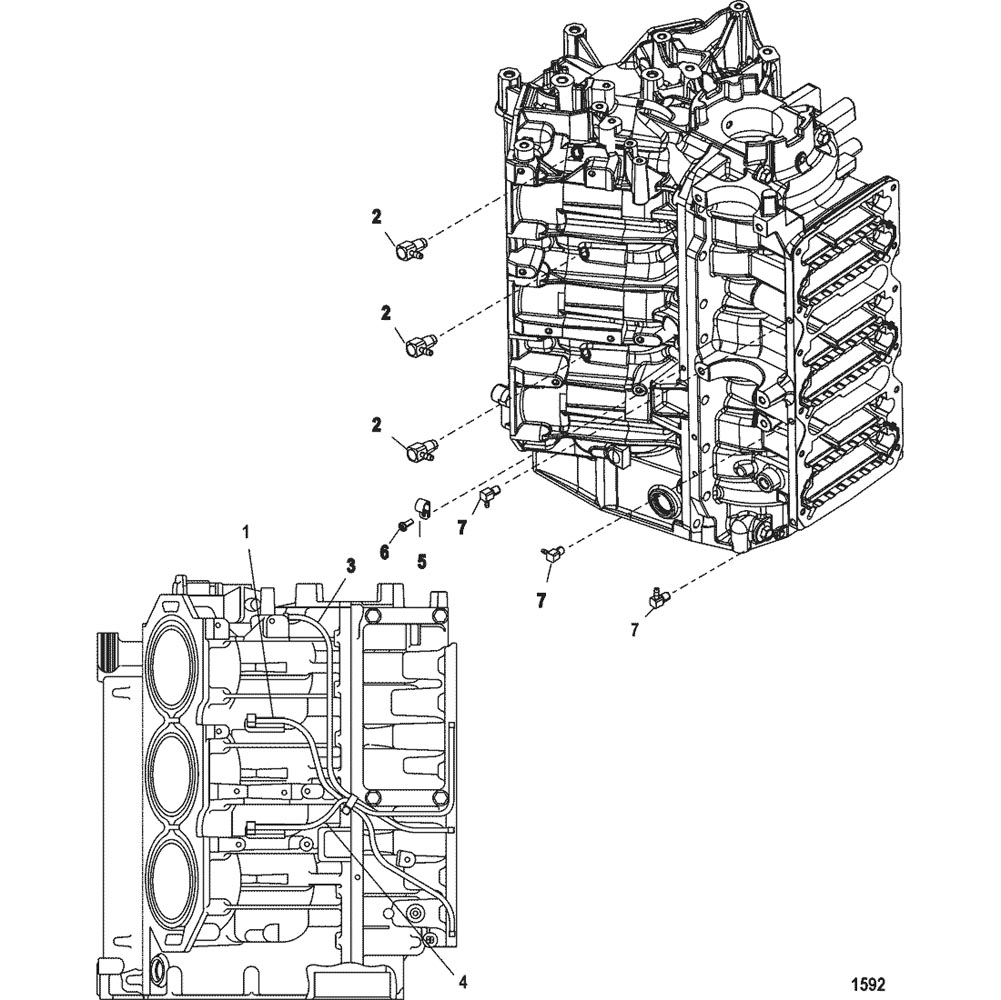

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-8M0054152         TUBING, (38.00 Inches Bulk) (Cut to 15.50 Inches) 1 85606065
2 21-8592352         CHECK VALVE, 90 Degree (.0625-27) 3
3 32-8M0054152         TUBING, (38.00 Inches Bulk) (Cut to 16.50 Inches) 1 85606065
4 32-8M0054152         TUBING, (38.00 Inches Bulk) (Cut to 15 Inches) 1 85606065
5 54-23567         CLIP 1
6 10-878608         SCREW, (#10-16 x .500) 1
7 22-887801         FITTING, Elbow 90 Degree (.0625-27) 3
- 61-843034A07         POWERHEAD ASSEMBLY 1
