250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Solenoid Plate

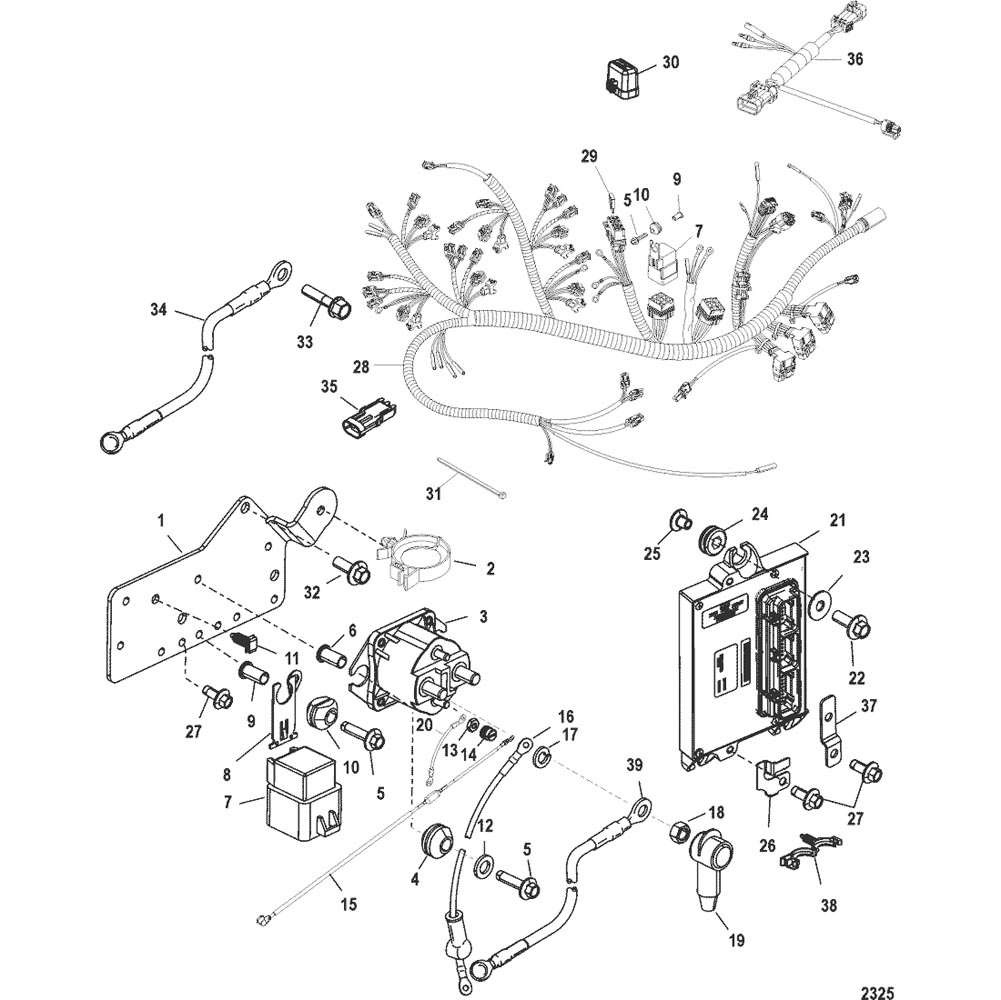

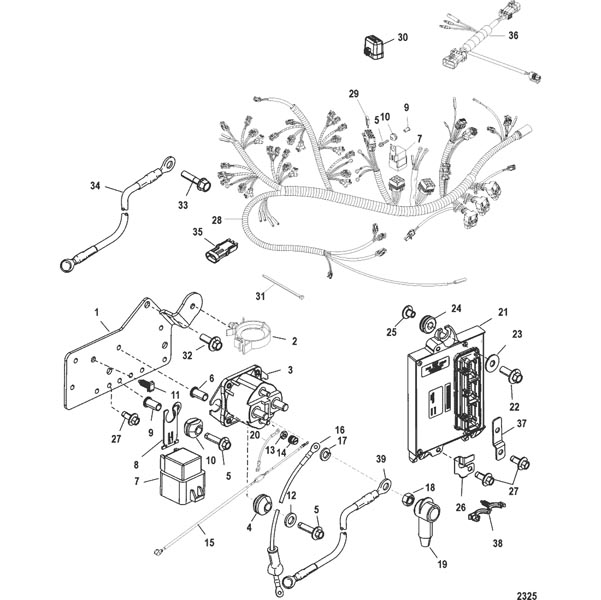

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Cap
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oiling System
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate
- Speedometer Pickup
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 858366T2 | PLATE | 1 | ||||||
| 2 | 54-858755 | CLIP, (1.00) | 1 | ||||||
| 3 | 89-817109A2 | SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) | 1 | ||||||
| 4 | 25-822179 | GROMMET | 2 | ||||||
| 5 | 10-82129125 | SCREW, (M6 x 25 MM) | 3 | ||||||
| 6 | 23-818968 | BUSHING | 2 | ||||||
| 7 | 882751A1 | RELAY ASSEMBLY | 1 | ||||||
| 8 | 828102 | BRACKET | 1 | ||||||
| 9 | 23-818968 | BUSHING | 1 | ||||||
| 10 | 25-818967 | GROMMET | 1 | ||||||
| 11 | 54-828991T | CLIP | 1 | 828991 | |||||
| 12 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 1 | ||||||
| 13 | 11-45076 | NUT, (#10-32) Brass | 2 | ||||||
| 14 | 11-813938 | CAP NUT, (#10-32) | 1 | ||||||
| 15 | 84-878231A6 | HARNESS ASSEMBLY, Fuse - 100 Ampere | 1 | ||||||
| 16 | 84-882829A1 | CABLE ASSEMBLY, Starter | 1 | ||||||
| 17 | 13-53166 | LOCKWASHER, (.312) | 2 | ||||||
| 18 | 11-68292 | NUT, (.312-18) | 2 | ||||||
| 19 | 85-8500671 | BOOT, Insulator - Red | 1 | ||||||
| 20 | 84-88807A16 | CABLE ASSEMBLY, (4.00 Inches) Black | 1 | ||||||
| 21 | 88555745T | PCM, Propulsion Control Module | 1 | 88555720S | |||||
| 22 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 23 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 24 | 25-834985 | GROMMET | 3 | ||||||
| 25 | 23-856954 | BUSHING | 3 | ||||||
| 26 | 8590881 | CLIP | 1 | ||||||
| 27 | 10-82129114 | SCREW, (M6 x 14) | 5 | ||||||
| 28 | 84-878082T8 | HARNESS ASSEMBLY, Engine Wiring | 1 | ||||||
| 29 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 4 | 83296920 | |||||
| 29 | 88-832969T05 | FUSE, Mini - Tan - 5 Ampere | 1 | 8329695 | |||||
| 30 | 858754 | COVER, Fuse | 1 | ||||||
| - | 84-879346A49 | HARNESS ASSEMBLY, Direct Injector | 1 | 858781A2 | |||||
| - | 84-879346A50 | HARNESS ASSEMBLY, Fuel Injector | 1 | 858780A2 | |||||
| - | 84-881262A2 | HARNESS ASSEMBLY, Alternator, Alternator | 1 | ||||||
| - | 84-879346A41 | HARNESS ASSEMBLY, TPS | 1 | 878073A2 | |||||
| 31 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 32 | 10-82130012 | SCREW, (M6 x 12) | 3 | ||||||
| 33 | 10-81893420 | SCREW, (M8 x 20) | 1 | ||||||
| 34 | 84-88439A26 | CABLE ASSEMBLY, Battery - Negative | 1 | ||||||
| 35 | 832948A1 | CONNECTOR ASSEMBLY | 1 | ||||||
| 36 | 84-859244T1 | HARNESS ASSEMBLY, Digital Adaptor, SmartCraft | 1 | ||||||
| 37 | 858953 | BRACKET | 1 | ||||||
| 38 | 54-859376 | CLIP | 1 | ||||||
| 39 | 84-88439A25 | CABLE ASSEMBLY, Battery - Positive | 1 |
