262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Crankshaft And Pistons

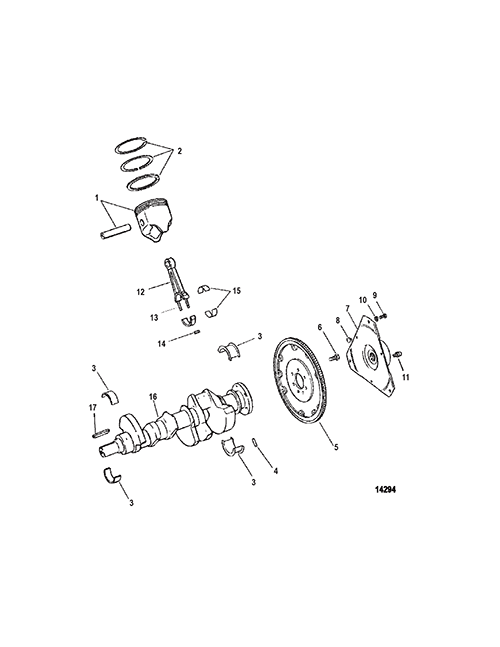

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold And Exhaust Elbow (2 Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust Sytem (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter (Fuel Cooled System)
- Fuel Pump And Fuel Cooler (Fuel Cooled System)
- Fuel Pump And Fuel Filter (VST Fuel System)
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter (With 16521T Adaptor)
- Remote Oil Filter (With 860091T Adaptor)
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Fuel Cooled System)
- Standard Cooling System (VST Fuel System)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0735 | OEM: 525-735-850097, Sierra: 676-18-4173 | PISTON ASSEMBLY | (STANDARD) | 6 | |
| 1 | 0735 | 850098 | PISTON ASSEMBLY | (.030 O.S.) | AR | [1] |
| 2 | 0039 | OEM: 525-39-17464, Sierra: 676-18-3937 | RING SET Piston (Standard) See Parts Bulletin 2001-2 For Proper Ring Selection | 6 | ||
| 2 | 0039 | OEM: 525-39-17465, Sierra: 676-18-3938 | RING Piston See Parts Bulletin 2001-2 For Proper Ring Selection | (.030 O.S.) | 6 | |
| 3 | 0023 | OEM: 525-23-818465, Sierra: 676-18-1300 | BEARING SET 5 Pair | (STANDARD) | 1 | [1] |
| 3 | 0023 | OEM: 525-23-818466 | BEARING SET 5 Pair | (.001 U.S.) | AR | [1] |
| 3 | 0023 | OEM: 525-23-818467 | BEARING SET 5 Pair | (.010 U.S.) | AR | [1] |
| 3 | 0023 | OEM: 525-23-818468 | BEARING SET 5 Pair | (.020 U.S.) | AR | [1] |
| 4 | 0017 | 35312 | PIN Dowel (1/4 In. Diameter) | 2 | ||
| 5 | 0222 | 824320 | FLYWHEEL | 1 | ||
| 6 | 0010 | 49845 | SCREW (.437-20 x 1.00) | 6 | ||
| 7 | 0000 | OEM: 530-18643A5, Sierra: 676-18-2323, GLM: 700-11532 | COUPLING ASSEMBLY | 1 | ||
| 8 | 0000 | OEM: 525-18644 | BUMPER Rubber | 3 | ||
| 9 | 0010 | OEM: 525-10-14883 | SCREW (.375-16 x 1.12) | 3 | ||
| 10 | 0012 | OEM: 525-12-13510 | WASHER | 3 | ||
| 11 | 0022 | OEM: 525-22-74036 | FITTING Grease | 1 | ||
| 12 | 0614 | 811839 | CONNECTING ROD | 6 | ||
| 13 | 0010 | OEM: 525-10-11969 | BOLT | 12 | ||
| 14 | 0011 | 37493 | NUT (.375-24) | 12 | ||
| 15 | 0023 | 11992 | BEARING | (STANDARD - PAIR) | 6 | |
| 15 | 0023 | OEM: 525-23-11993 | BEARING | (.001 U.S. - PAIR) | AR | [1] |
| 15 | 0023 | 811858 | BEARING | (.010 U.S. - PAIR) | AR | [1] |
| 15 | 0023 | OEM: 525-23-811859 | BEARING | (.020 U.S. - PAIR) | AR | [1] |
| 16 | 0429 | 9517A1 | CRANKSHAFT | 1 | ||
| 17 | 0028 | 818485 | KEY | 1 |
PART NOTES:
[1] - AS REQUIRED
