262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Flywheel Housing

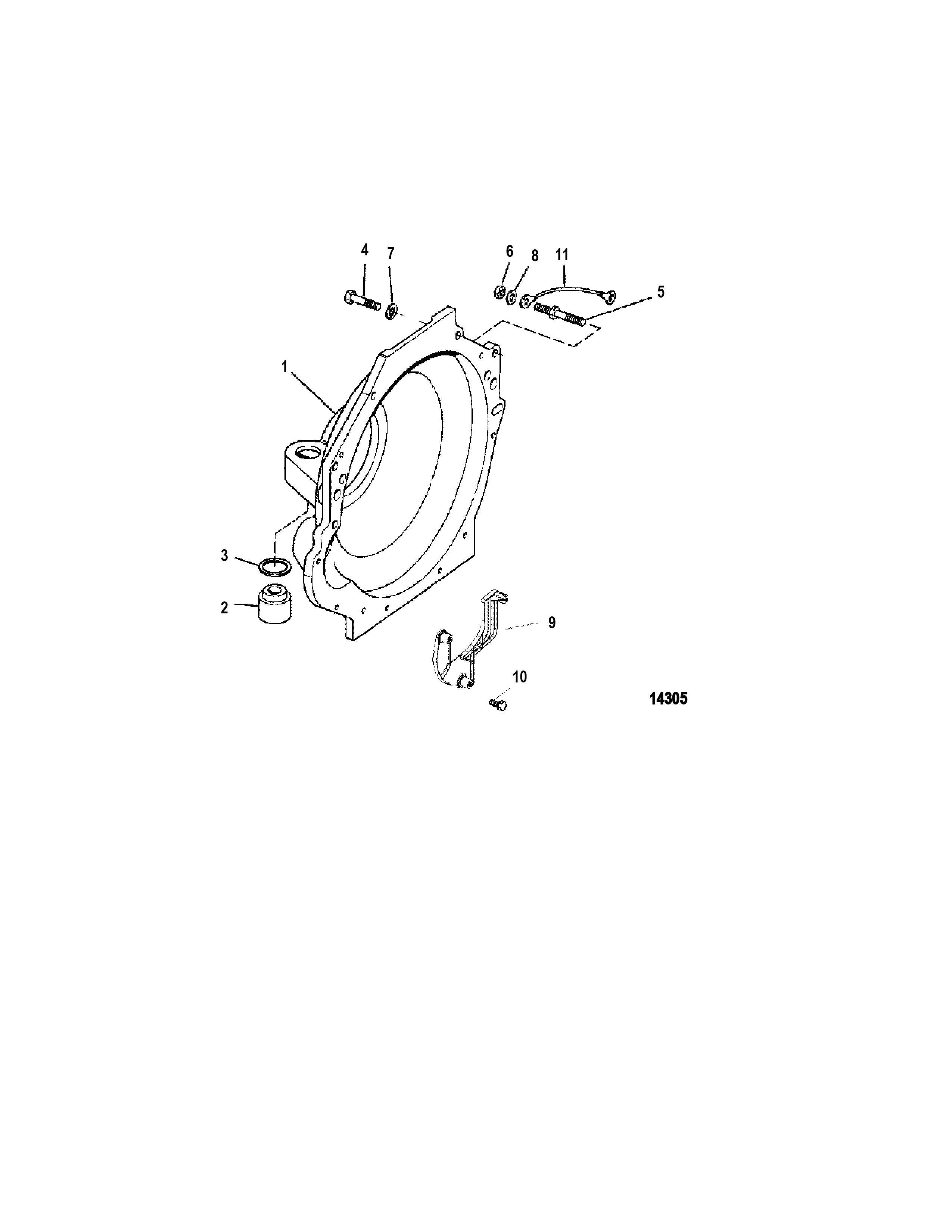

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 12675A5 HOUSING ASSEMBLY Flywheel   1
2 0000 99297A2 MOUNT Rubber   2
3 0023 OEM: 525-23-99322, GLM: 700-21050 SPACER   2
4 0010 OEM: 525-10-37612, GLM: 700-21755 SCREW (.375-16 x 1.250)   3
4 0010 OEM: 525-10-358701 SCREW (.375-16 x 2.00)   1
5 0016 OEM: 525-16-64066 STUD (.375-16 x 2.750) Special   2
6 0011 OEM: 525-11-32219 NUT (.375-16)   2
7 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375)   7
8 0012 OEM: 525-12-20572 WASHER (.390 x .750 x .093)   1
9 0000 OEM: 525-807456A2 COVER   1
10 0010 OEM: 525-10-32773 SCREW (.250-20 x .875)   2
10 0010 OEM: 525-10-76596 SCREW (.250-20 x 1.250)   2
11 0084 62826A6 CABLE ASSEMBLY Ground (13.00 Inches) Black   1
