262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Fuel Pump And Fuel Cooler (Fuel Cooled System)

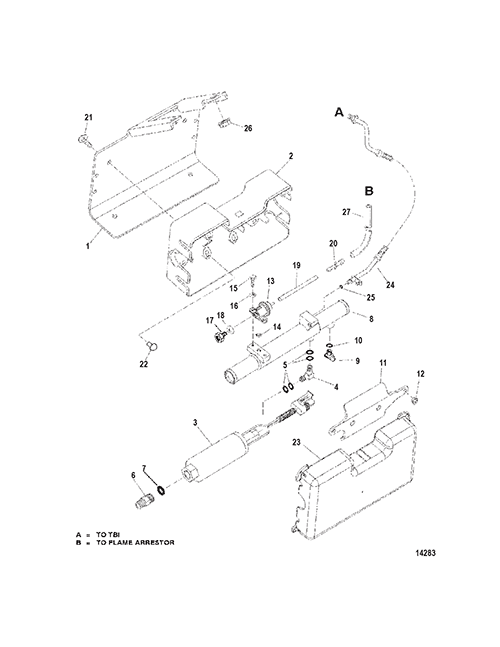

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold And Exhaust Elbow (2 Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust Sytem (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter (Fuel Cooled System)
- Fuel Pump And Fuel Cooler (Fuel Cooled System)
- Fuel Pump And Fuel Filter (VST Fuel System)
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter (With 16521T Adaptor)
- Remote Oil Filter (With 860091T Adaptor)
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Fuel Cooled System)
- Standard Cooling System (VST Fuel System)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-807951T | BRACKET Fuel Cooler | 1 | ||
| 2 | 0000 | OEM: 525-807685T | INSULATOR | 1 | ||
| 3 | 0000 | 807949A1 | PUMP ASSEMBLY Fuel | 1 | ||
| 4 | 0022 | OEM: 525-22-807783A1 | FITTING ASSEMBLY 90 Degree | 1 | ||
| 5 | 0025 | OEM: 525-25-805063 | O-RING (.301 x .070) | 4 | [1] | |
| 6 | 0022 | OEM: 525-22-808001A1 | FITTING ASSEMBLY | 1 | ||
| 7 | 0025 | OEM: 525-25-805062 | O-RING (.530 x .082) | 1 | [1] | |
| 8 | 0000 | OEM: 525-807950A1 | COOLER Fuel | 1 | ||
| 9 | 0022 | 806608A1 | PLUG KIT (.500-13) Royal Blue | 1 | [2] | |
| 10 | 0025 | 806609 | QUAD RING | 1 | [1] | |
| 11 | 0000 | OEM: 525-807979T | BRACKET | 1 | ||
| 12 | 0011 | OEM: 525-11-29598 | NUT (.250-28) Stainless Steel | 2 | ||
| 13 | 0000 | OEM: 530-807952A1 | REGULATOR KIT Fuel Pressure | 1 | ||
| 14 | 0035 | OEM: 525-35-805406 | FILTER | 1 | ||
| 15 | 0010 | OEM: 525-10-852368 | SCREW (#10-24 x .750) | 2 | ||
| 16 | 0012 | OEM: 525-12-89302 | WASHER (.203 x .406 x .040) | 2 | ||
| 17 | 0022 | OEM: 525-22-808002A1 | FITTING KIT | 1 | ||
| 18 | 0012 | OEM: 525-12-36533 | WASHER (.328 x .562 x .0312) Copper | 1 | ||
| 19 | 0032 | 80617370 | HOSE .1562 Inch Inside Diameter | 1 | ||
| 20 | 0022 | OEM: 525-22-807971 | CONNECTOR Hose | 1 | ||
| 21 | 0010 | OEM: 525-10-808005 | SCREW (.250-20 x .500) | 4 | ||
| 22 | 0000 | OEM: 525-269011 | BUMPER Rubber | 8 | ||
| 23 | 0000 | 807930T | INSULATOR Cover | 1 | ||
| 24 | 0032 | 860230T | LINE Fuel Fuel Cooler To TBI | 1 | ||
| 25 | 0025 | 805970 | O-RING | 1 | ||
| 26 | 0011 | OEM: 525-11-860069 | NUT (.375-16) | 2 | ||
| 27 | 0032 | 80804762 | HOSE (.2187 x .440) | 1 | ||
| - | 0027 | OEM: 525-27-807756A96 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Component Of Overhaul Gasket Set
[2] - Alternate part numbers:
806608A 1Service Part
806608Q01QS
