262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Throttle Body

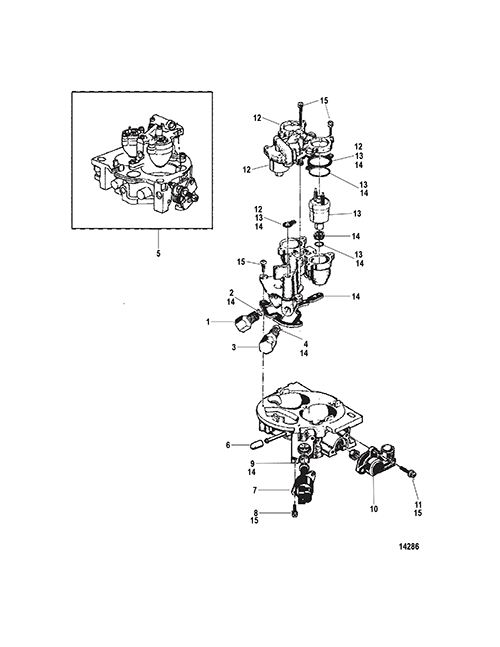

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold And Exhaust Elbow (2 Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust Sytem (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter (Fuel Cooled System)
- Fuel Pump And Fuel Cooler (Fuel Cooled System)
- Fuel Pump And Fuel Filter (VST Fuel System)
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter (With 16521T Adaptor)
- Remote Oil Filter (With 860091T Adaptor)
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Fuel Cooled System)
- Standard Cooling System (VST Fuel System)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0022 | OEM: 525-22-806653A1 | FITTING ASSEMBLY | (Inlet) | 1 | |
| 2 | 0026 | OEM: 525-26-806655 | SEAL | 1 | [1] | |
| 3 | 0022 | 806654A1 | FITTING ASSEMBLY | (VST Fuel System) [0K000000] & Below | 1 | |
| 3 | 0022 | OEM: 525-22-808024A1 | PLUG ASSEMBLY | (Fuel Cooled System) [0K001511] & Up | 1 | |
| 4 | 0026 | OEM: 525-26-806706 | SEAL | 1 | [1] | |
| 5 | 0000 | 806898A1 | THROTTLE BODY ASSEMBLY | 1 | ||
| 6 | 0000 | 806899 | PLUG | 1 | ||
| 7 | 0000 | OEM: 530-805224A1, Sierra: 676-18-7632-1 | MOTOR ASSEMBLY IAC | 1 | ||
| 8 | 0010 | OEM: 525-10-805400 | SCREW (#8-32 x .500) Stainless Steel | 2 | ||
| 9 | 0025 | OEM: 525-25-808547 | O-RING | 1 | ||
| 10 | 0000 | 805226A1 | SENSOR ASSEMBLY TPS | 1 | ||
| 11 | 0010 | OEM: 525-10-805400 | SCREW (#8-32 x .500) Stainless Steel | 2 | ||
| 12 | 0000 | 852955 | REGULATOR KIT Fuel Pressure | 1 | ||
| 13 | 0000 | OEM: 525-852956A1, Sierra: 676-18-7685 | INJECTOR KIT | 1 | ||
| 14 | 0027 | 852957 | GASKET KIT Overhaul | 1 | ||
| 15 | 0010 | OEM: 525-10-852958 | SCREW KIT | 1 | ||
| - | 0027 | OEM: 525-27-807756A96 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Component Of Overhaul Gasket Set
