262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Starter Motor

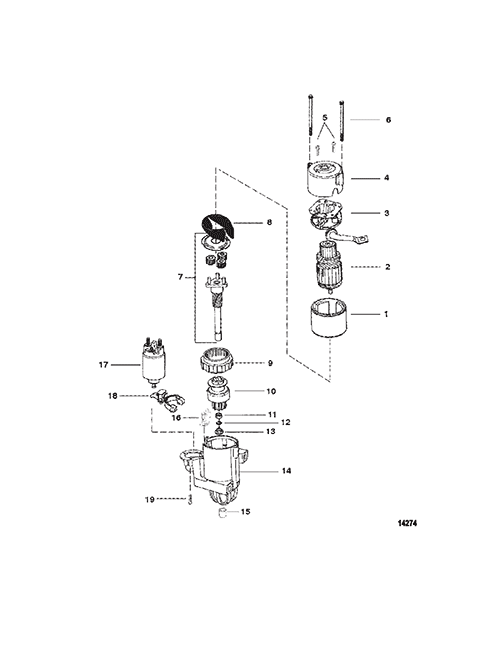

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold And Exhaust Elbow (2 Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust Sytem (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter (Fuel Cooled System)
- Fuel Pump And Fuel Cooler (Fuel Cooled System)
- Fuel Pump And Fuel Filter (VST Fuel System)
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter (With 16521T Adaptor)
- Remote Oil Filter (With 860091T Adaptor)
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Fuel Cooled System)
- Standard Cooling System (VST Fuel System)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0050 | 806964A3 | STARTER MOTOR ASSEMBLY | 1 | [1] | |
| 2 | NSS | NOT SOLD SEPARATE Armature | 1 | |||
| 3 | NSS | NOT SOLD SEPARATE Brush Holder And Spring | 1 | |||
| 4 | NSS | NOT SOLD SEPARATE Frame | 1 | |||
| 5 | NSS | NOT SOLD SEPARATE Screw | 2 | |||
| 6 | NSS | NOT SOLD SEPARATE Bolt Thru | 2 | |||
| 7 | NSS | NOT SOLD SEPARATE Shaft And Gear | 1 | |||
| 8 | NSS | NOT SOLD SEPARATE Gasket | 1 | |||
| 9 | NSS | NOT SOLD SEPARATE Gear | 1 | |||
| 10 | NSS | NOT SOLD SEPARATE Drive | 1 | |||
| 11 | 0000 | 33291 | COLLAR | 1 | ||
| 12 | 0053 | 33290 | RING Retaining | 1 | ||
| 13 | NSS | NOT SOLD SEPARATE Color Thrust | 1 | |||
| 14 | 0000 | 809459 | HOUSING | 1 | ||
| 15 | 0023 | 814476 | BUSHING | 1 | ||
| 16 | NSS | NOT SOLD SEPARATE Grommet | 1 | |||
| 17 | 0000 | OEM: 525-809463A1, Sierra: 676-18-5811, GLM: 700-72450 | SOLENOID KIT | 1 | ||
| 18 | NSS | NOT SOLD SEPARATE Lever | 1 | |||
| 19 | NSS | NOT SOLD SEPARATE Screw | 3 |
PART NOTES:
[1] - Alternate part numbers:
806964A 3QS
864340R02Reman
