262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Exhaust Manifold (1 Piece)

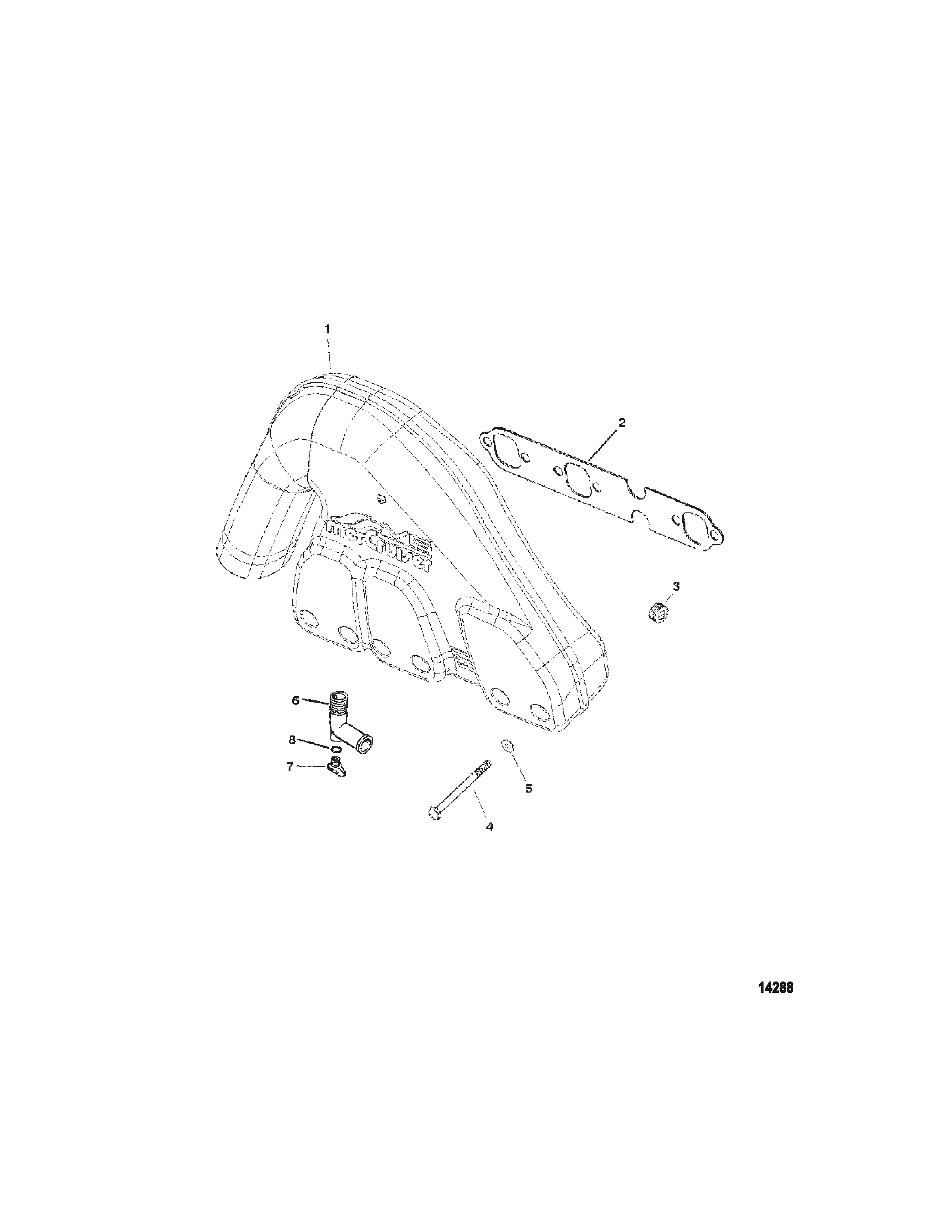

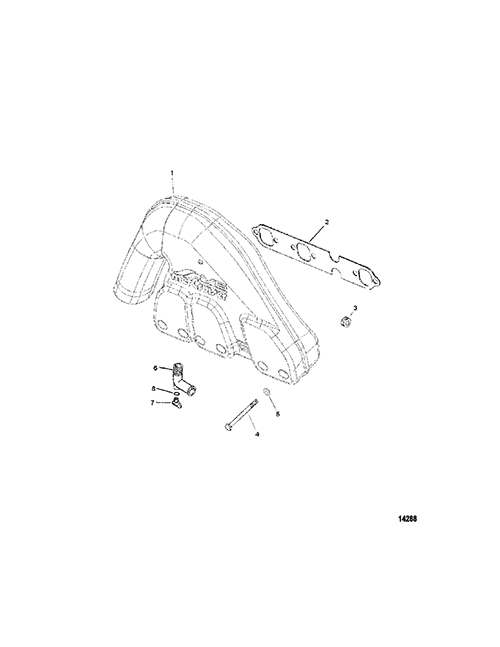

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold And Exhaust Elbow (2 Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust Sytem (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter (Fuel Cooled System)
- Fuel Pump And Fuel Cooler (Fuel Cooled System)
- Fuel Pump And Fuel Filter (VST Fuel System)
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter (With 16521T Adaptor)
- Remote Oil Filter (With 860091T Adaptor)
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Fuel Cooled System)
- Standard Cooling System (VST Fuel System)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 807293A2 | MANIFOLD ASSEMBLY Exhaust | (Starboard) | 1 | |
| 1 | 0000 | 807294A3 | MANIFOLD ASSEMBLY Exhaust | (Port) | 1 | |
| 2 | 0027 | OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 | GASKET | 2 | [1] | |
| 3 | 0022 | 33198A1 | PLUG (3/4-14) | 4 | ||
| 4 | 0010 | OEM: 525-10-53728, GLM: 700-21745 | SCREW (.375-16 x 4.75) | 12 | ||
| 5 | 0012 | OEM: 525-12-20553, GLM: 700-21675 | WASHER (.406 x .734 x .063) | 12 | ||
| 6 | 0022 | 806926A1 | ELBOW KIT Drain | 2 | ||
| 7 | 0022 | 806608A1 | PLUG KIT (.500-13) Royal Blue | 2 | [2] | |
| 8 | 0025 | 806609 | QUAD RING | 2 | [1] | |
| - | 0027 | OEM: 525-27-807756A96 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Component Of Overhaul Gasket Set
[2] - Alternate part numbers:
806608A 1Service Part
806608Q01QS
