4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Carburetor (Weber)

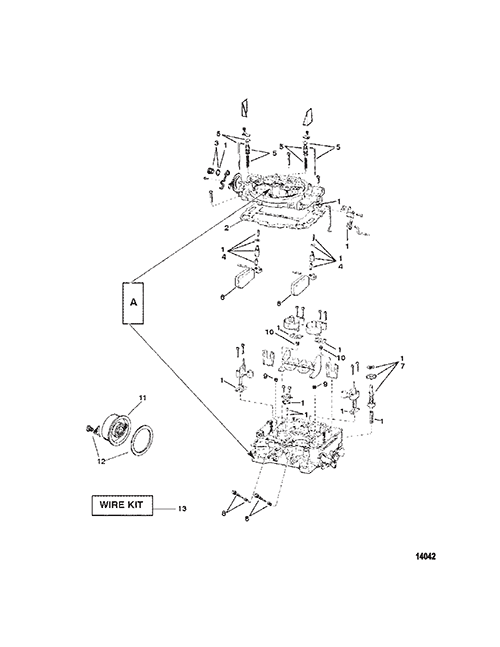

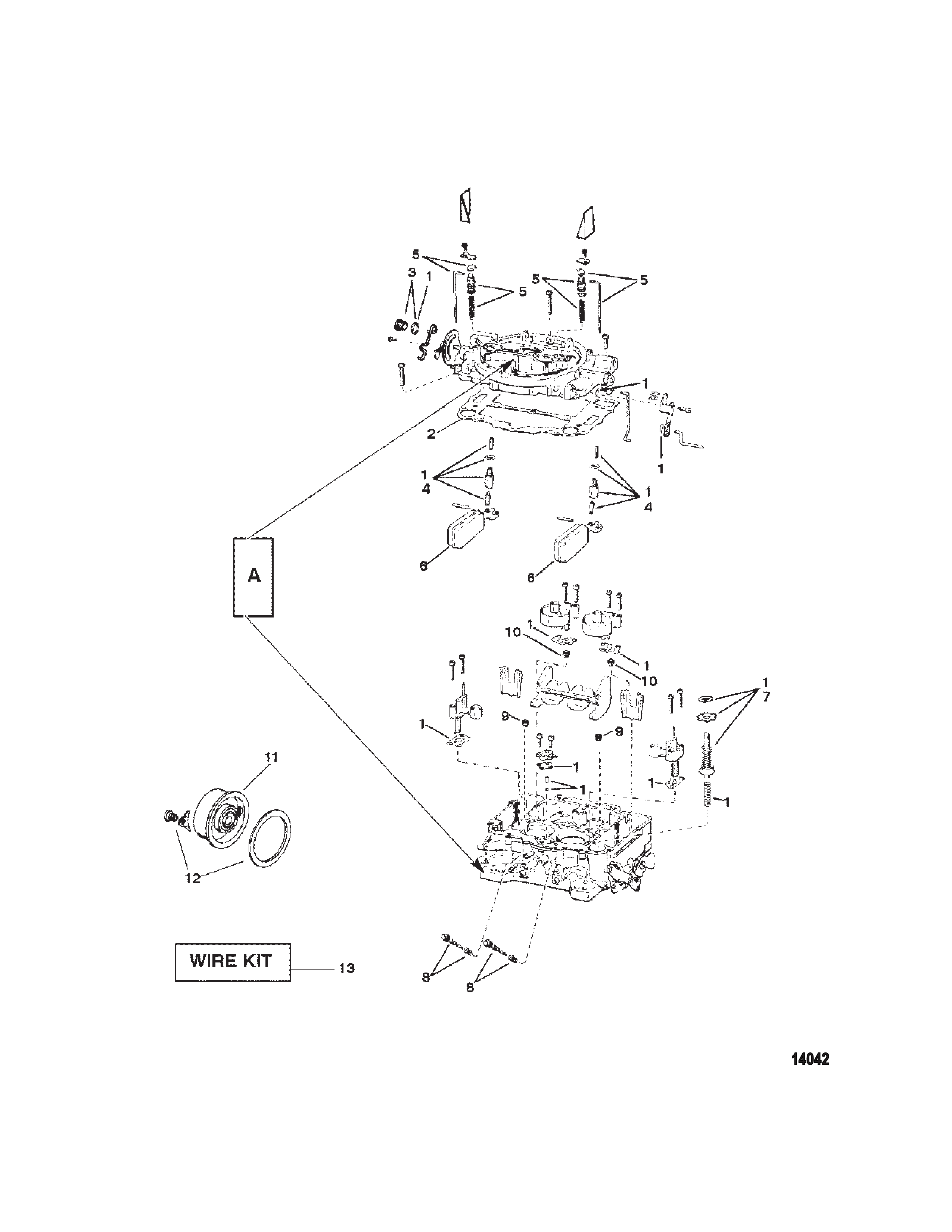

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-835076, Sierra: 676-18-7749 OVERHAUL KIT   1
2 0027 OEM: 525-27-809077 GASKET   1
3 0000 OEM: 525-811533 FITTING KIT Inlet   1
4 0000 OEM: 525-823727, GLM: 700-40780 NEEDLE/SEAT KIT Inlet   2
5 0000 835077 METERING ROD KIT   1
6 0000 OEM: 525-811536T, Sierra: 676-18-36906, GLM: 700-77240 FLOAT KIT   2
7 0000 OEM: 525-811537 PLUNGER KIT Pump   1
8 0000 OEM: 525-811539 SCREW KIT Idle Mixture   2
9 0000 835078 JET Metering - Primary   2
10 0000 OEM: 525-823724 JET Metering - Secondary   2
11 0000 809066 REPAIR KIT Electric Choke   1
12 0000 809095 RETAINER KIT Electric Choke   1
13 0084 809471A1 WIRE KIT   1
