4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Oil Pan And Oil Pump

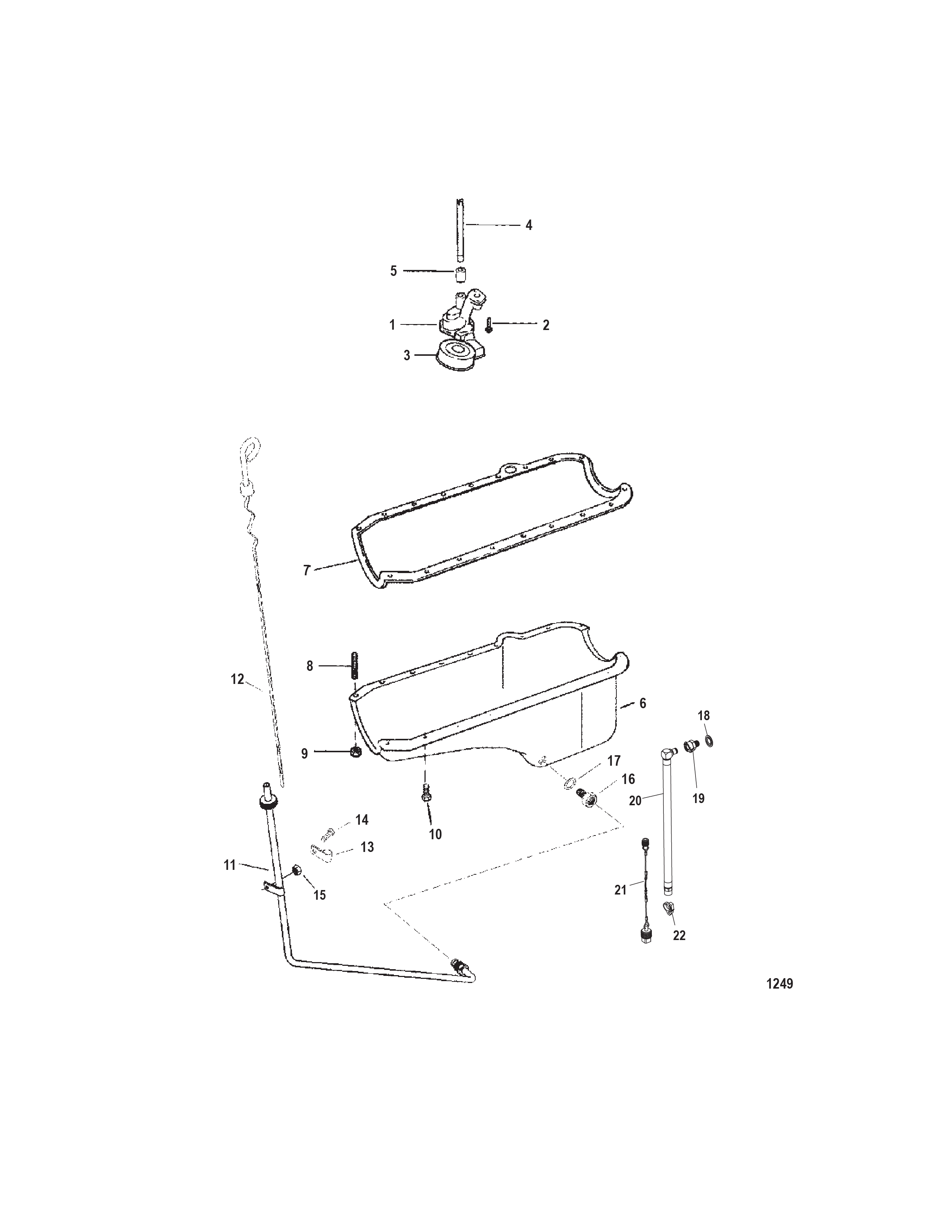

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 8099071 PUMP ASSEMBLY Oil   1
2 0010 OEM: 525-10-17346 SCREW   1
3 0000 OEM: 525-8099081 SCREEN   1
4 0000 OEM: 525-36184 SHAFT   1
5 0023 OEM: 525-23-36183 RETAINER   1
6 0000 809980T1 PAN Oil (ALUMINUM) (GM BLOCK CODES 8LK, 9LJ) 1
6 0000 804912 PAN Oil (ALUMINUM) (GM BLOCK CODES 9LK, 9LJ, 0LK, 0LJ) 1
7 0027 OEM: 525-27-14247T1, Sierra: 676-18-61513 GASKET SET   1 [1]
8 0016 OEM: 525-16-11989 STUD (.312-18 x 1.6718)   2
9 0011 OEM: 525-11-11971 NUT (.312-18)   2
10 0010 OEM: 525-10-726071 SCREW (5/16-18x x .875)   10
11 0000 OEM: 525-860209A1 TUBE Dipstick   1
12 0000 OEM: 525-861942T6 GAUGE Oil Level   1
13 0054 OEM: 525-54-805625 CLIP Dipstick Tube   1
14 0010 OEM: 525-10-35366 SCREW   1
14 0010 OEM: 525-10-40011126 SCREW (M6 x 13) Stainless Steel   1 [2]
15 0011 OEM: 525-11-29250 NUT (.312-24)   1
16 0022 OEM: 525-22-807804 FITTING   1
17 0027 49955 GASKET Drain   1 [1]
18 0027 49955 GASKET Drain   1
19 0022 862812 FITTING Quick Connect (Female)   1
20 0032 805505A4 HOSE Oil Drain   1
21 0000 OEM: 525-862827 TETHER ASSEMBLY   1
22 0054 OEM: 525-54-805524 CLIP   1
- 0027 OEM: 525-27-807756A96 GASKET SET Engine Overhaul   1

PART NOTES:

[1] - COMPONENT OF ENGINE OVERHAUL GASKET SET 807756A96

[2] - METRIC FASTENER CHANGE (S/N 0L320000 AND UP)
