4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Electrical Components

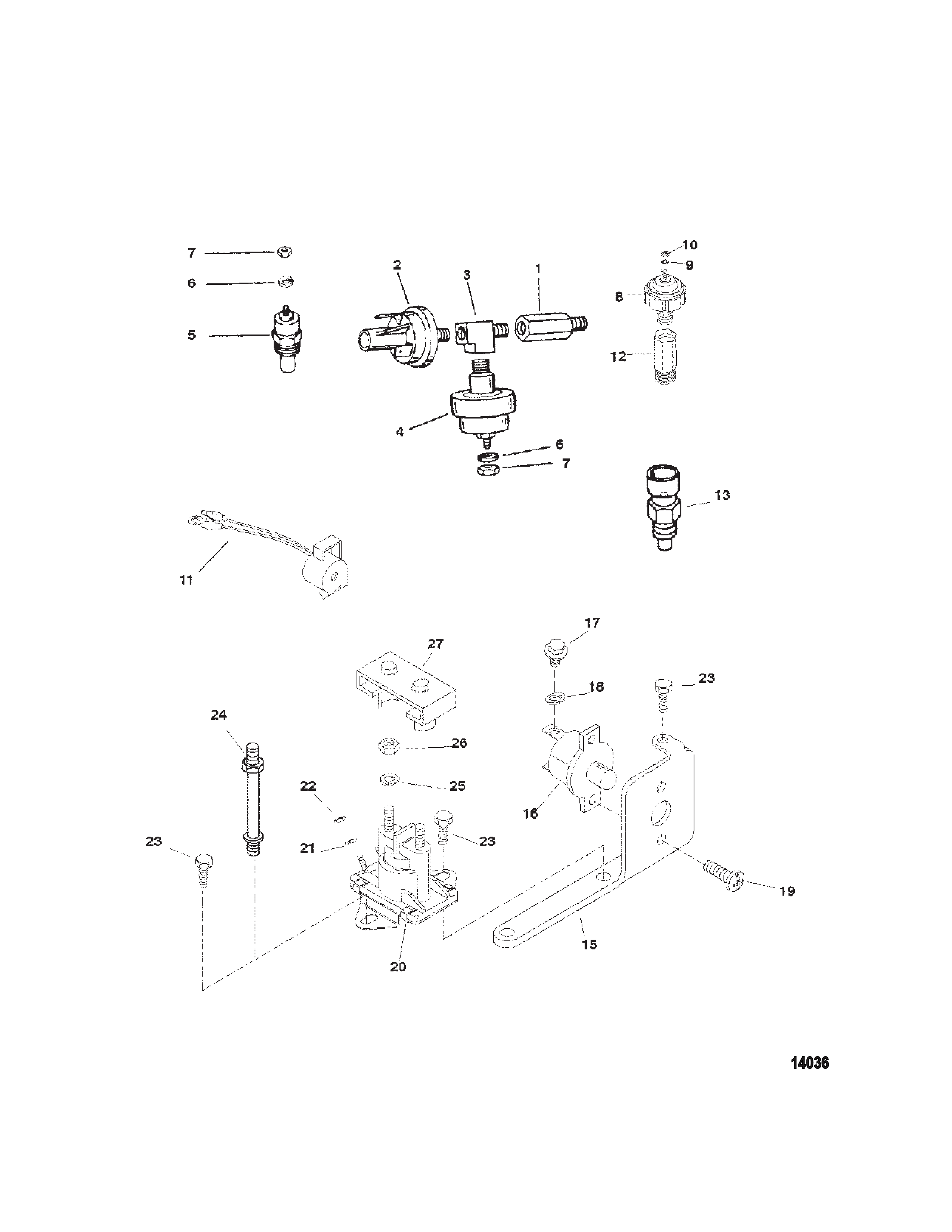

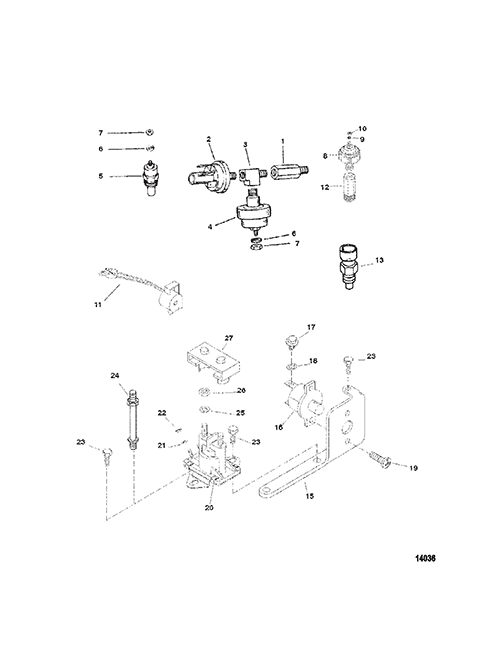

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0022 OEM: 525-22-805059 FITTING Bushing   1
2 0087 805024 SWITCH Oil Pressure [0M330610] & Below 1
2 0087 864252 SWITCH [0M330611] & Up 1
3 0022 286241 FITTING   1
4 0000 815425T SENDER ASSEMBLY   1
4 0000 OEM: 525-37293T SENDER ASSEMBLY (Dual Station) OPT.
5 0000 97257A1 SENDER ASSEMBLY Water Temperature   1
5 0000 OEM: 525-49734 SENDER (Dual Station) OPT.
6 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   2
7 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel   2
8 0087 OEM: 530-805605A1 SWITCH ASSEMBLY (Audio Warning System) 1
9 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel (Audio Warning System) 1
10 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel (Audio Warning System) 1
11 0000 OEM: 525-816492A6 ALARM KIT (Audio Warning System) 1
12 0022 OEM: 525-22-805059 FITTING   1
13 0000 OEM: 530-805218T, Sierra: 676-18-7600 SENSOR   1
14 0000 OEM: 525-830796A1 CONNECTOR ASSEMBLY   1
15 0000 805368T BRACKET Electrical   1
16 0088 806950 BREAKER Circuit - 50 Ampere   1
17 0010 OEM: 525-10-68513 SCREW (#10-32 x .375) Stainless Steel   2
18 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   2
19 0010 57583 SCREW (#8-32 x .375)   2
20 0089 OEM: 530-96158T, Sierra: 676-18-5817, GLM: 700-72400 SOLENOID   1
21 0013 OEM: 525-13-26995 LOCKWASHER (#8) Stainless Steel   2
22 0011 OEM: 525-11-26419 NUT (#8-32) Brass   2
23 0010 OEM: 525-10-805564 SCREW (.250-20 x .750) (Alpha) 2
24 0016 OEM: 525-16-805459 STUD Mercathode Mounting (Bravo) 1
25 0013 OEM: 525-13-26992 LOCKWASHER (.250) Stainless Steel   2
26 0011 OEM: 525-11-94330 NUT (.250-20) Brass   2
27 0085 OEM: 525-85-97861 INSULATOR   1
