4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Carburetor And Throttle Linkage (Four Barrel)

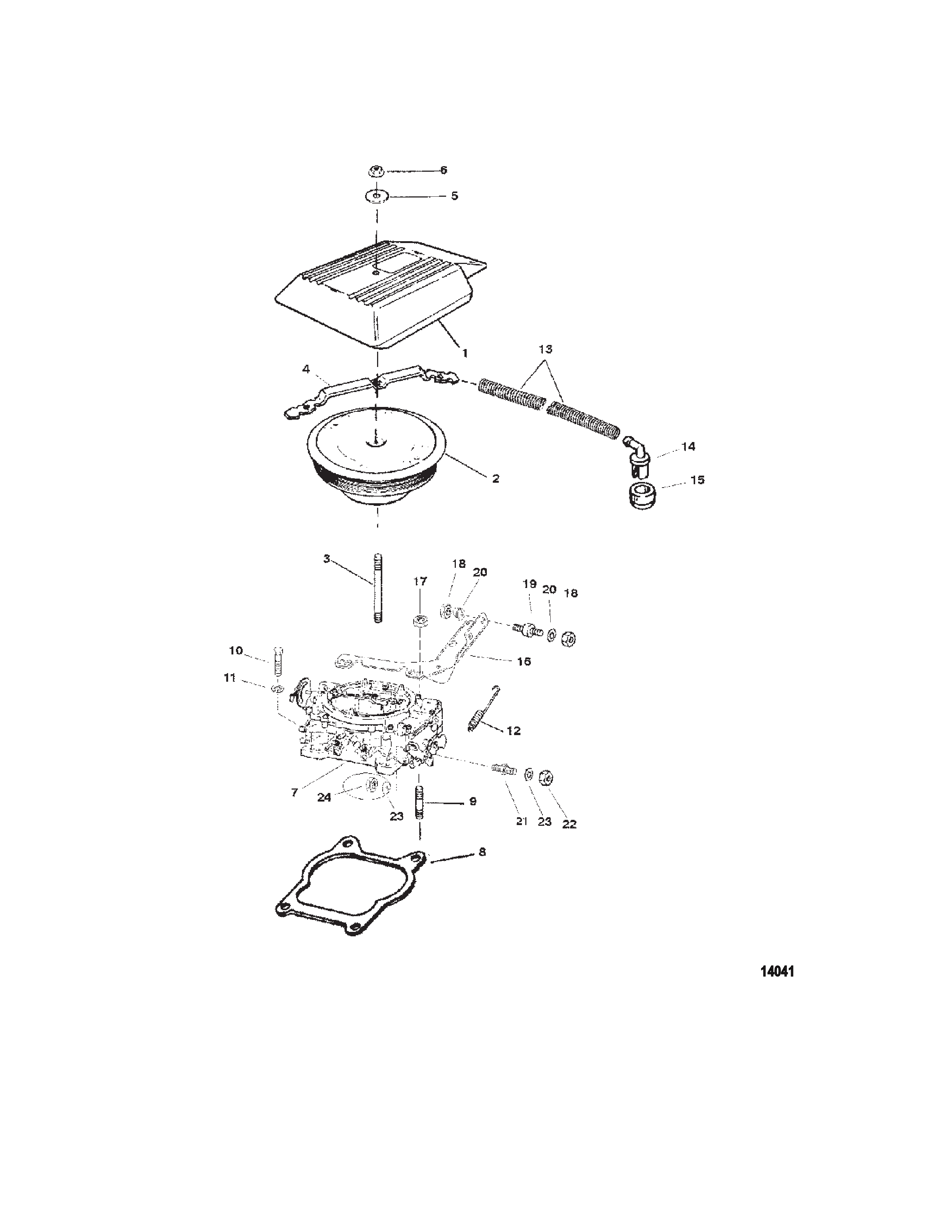

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Brackets (Mando)
- Carburetor (Mercarb - Two Barrel)
- Carburetor (Weber)
- Carburetor And Throttle Linkage (2 Barrel)
- Carburetor And Throttle Linkage (Four Barrel)
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Decals
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhast Manifold And Exhaust Elbow (Two Piece)
- Exhaust Manifold (One Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Serpentine Belts (S-N 0L010044 thru 0L618999)
- Serpentine Belts S-N 0L619000 And Above
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 and SAV1)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-18484A3 | COVER | 1 | ||
| 2 | 0000 | OEM: 525-805298A1 | FLAME ARRESTOR | 1 | ||
| 3 | 0016 | OEM: 525-16-805296 | STUD (4.50 Inch) | 1 | ||
| 4 | 0000 | OEM: 525-805314 | RETAINER Breather Hose | 1 | ||
| 5 | 0012 | OEM: 525-12-86400 | WASHER | 1 | ||
| 6 | 0011 | OEM: 525-11-826709109 | NUT (.250-28) Stainless Steel | 1 | ||
| 7 | 3310 | 807826A1 | CARBURETOR ASSEMBLY | (See "Carburetor (Weber)" For Breakdown) | 1 | [1] |
| 7 | 3310 | 860076A1 | CARBURETOR ASSEMBLY | Swiss Emissions (BSO1 And SAV1) (Breakdown Not Availbable At Time of Printing) | 1 | |
| 8 | 0027 | OEM: 525-27-524572, Sierra: 676-18-2848 | GASKET | 1 | [2] | |
| 9 | 0016 | OEM: 525-16-70236, GLM: 700-22482 | STUD (.312 x 1.500) | 2 | ||
| 10 | 0010 | OEM: 525-10-35386 | SCREW (.312-18 x 1.00) | 2 | ||
| 11 | 0013 | OEM: 525-13-39107, GLM: 700-21496 | LOCKWASHER (.312-24) | 2 | ||
| 12 | 0024 | 32817 | SPRING | 1 | ||
| 13 | 0032 | OEM: 525-32-1589424 | HOSE (16.50 Inches Bulk) | 2 | ||
| 14 | 0000 | 97850 | ELBOW 90 Degree Breather | 2 | ||
| 15 | 0025 | OEM: 525-25-827152 | GROMMET | 2 | ||
| 16 | 0000 | OEM: 525-805359T | BRACKET | 1 | ||
| 17 | 0011 | OEM: 525-11-29250 | NUT (.312-24) | 2 | ||
| 18 | 0011 | OEM: 525-11-826709109 | NUT (.250-28) Stainless Steel | 2 | ||
| 19 | 0016 | OEM: 525-16-818192 | STUD | 1 | ||
| 20 | 0012 | OEM: 525-12-24664 | WASHER (M4 x 20) | 2 | ||
| 21 | 0016 | 96112 | STUD (.250-28 x 2.00) Throttle Cable Anchor | 1 | ||
| 22 | 0011 | OEM: 525-11-8267089, Sierra: 676-18-3722 | NUT (.250-28) | 1 | ||
| 23 | 0012 | OEM: 525-12-29245, Sierra: 676-18-4275, GLM: 700-21490 | WASHER (.281 x .500 x .060) Stainless Steel | 2 | ||
| 24 | 0011 | OEM: 525-11-826709109 | NUT (.250-28) Stainless Steel | 1 | ||
| - | 0027 | 824326A96 | GASKET SET Overhaul | 1 |
PART NOTES:
[1] - Alternate part numbers:
807826A 1QS
807826R02Reman
[2] - Component Of Overhaul Gasket Set 824326A96
