4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Engine Mounting

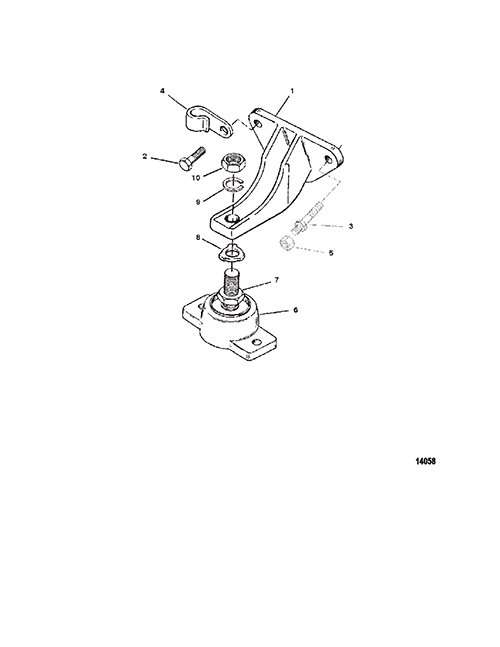

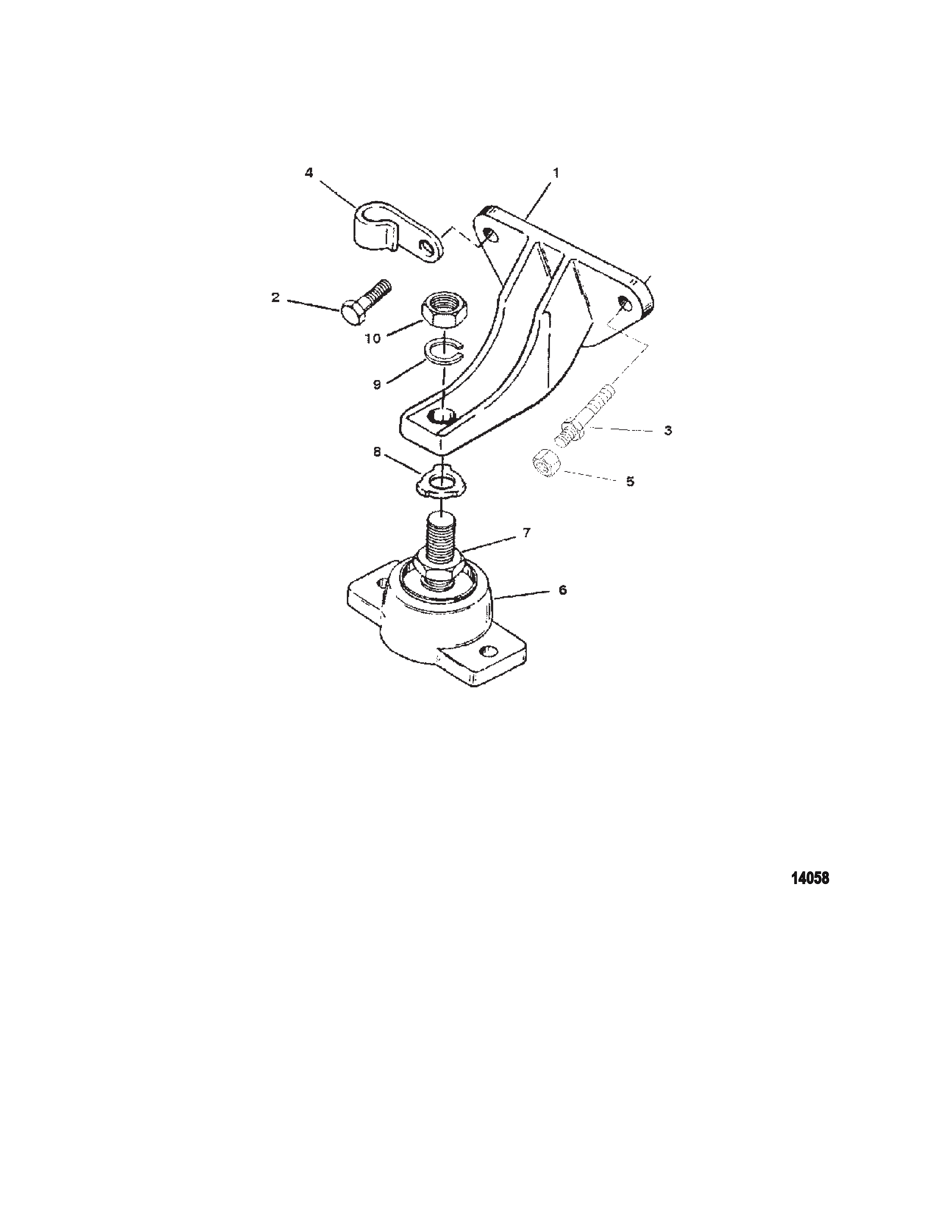

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-79550A1 BRACKET   2
2 0010 OEM: 525-10-68101 SCREW (.375-16 x 1.375) (With Out Remote Oil) 4
2 0010 OEM: 525-10-40001195 SCREW (M10 x 30) (With Out Remote Oil) 4
3 0016 805357 STUD (.375-16 x 2.130) (With Out Remote Oil) 2
3 0016 OEM: 525-16-861580 STUD (Metic-Double Ended) (With Out Remote Oil) 2
4 0054 OEM: 525-54-92850 CLAMP (With Out Remote Oil) 1
2 0010 OEM: 525-10-68101 SCREW (.375-16 x 1.375) (With Remote Oil) 3
2 0010 OEM: 525-10-40001195 SCREW (M10 x 30) (With Remote Oil) 4
3 0016 805357 STUD (.375-16 x 2.130) (With Remote Oil) 3
3 0016 OEM: 525-16-861580 STUD (Metric-Double Ended) (With Remote Oil) 2
4 0054 OEM: 525-54-816398 CLIP (With Remote Oil) 1
5 0011 OEM: 525-11-860069 NUT (.375-16)   1
5 0011 OEM: 525-11-4013610 NUT (M10) Stainless Steel   1
6 0000 OEM: 530-66284A2 BASE ASSEMBLY   2
7 0011 OEM: 525-11-20739 NUT (.750-16)   2
8 0014 OEM: 525-14-12657 TAB WASHER   2
9 0013 OEM: 525-13-68102 LOCKWASHER (.750)   2
10 0011 OEM: 525-11-20739 NUT (.750-16)   2
