4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Distributor And Ignition Components

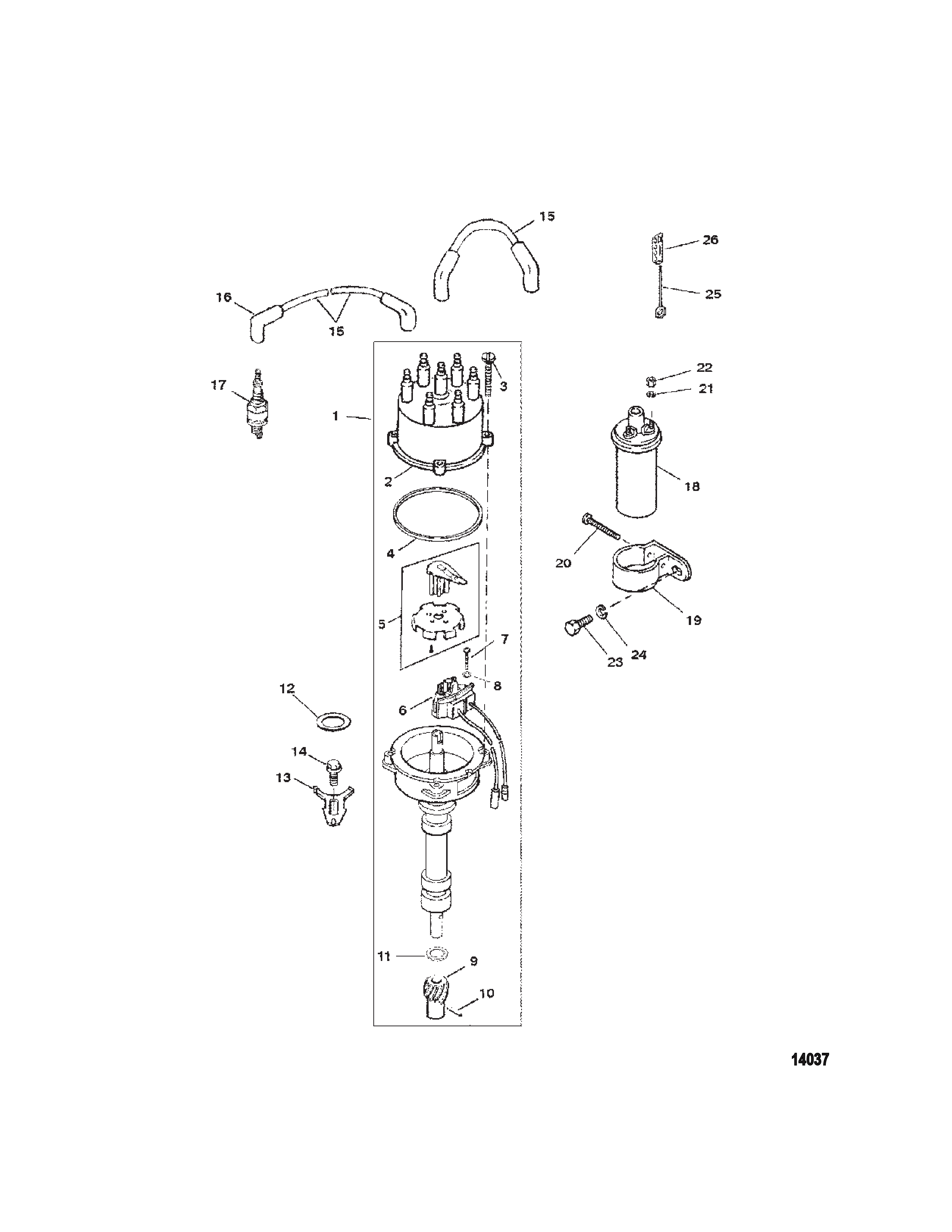

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Brackets (Mando)
- Carburetor (Mercarb - Two Barrel)
- Carburetor (Weber)
- Carburetor And Throttle Linkage (2 Barrel)
- Carburetor And Throttle Linkage (Four Barrel)
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Decals
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhast Manifold And Exhaust Elbow (Two Piece)
- Exhaust Manifold (One Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Serpentine Belts (S-N 0L010044 thru 0L618999)
- Serpentine Belts S-N 0L619000 And Above
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 and SAV1)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 805185A37 | DISTRIBUTOR ASSEMBLY | 1 | ||
| 2 | 0000 | OEM: 530-815407A2, Sierra: 676-18-5396, GLM: 700-71500 | CAP Distributor | 1 | [1] | |
| 3 | 0010 | OEM: 525-10-90926, GLM: 700-22305 | SCREW (#10-32 x .810) | 4 | ||
| 4 | 0027 | OEM: 525-27-805760, GLM: 700-32060 | GASKET | 1 | ||
| 5 | 0000 | OEM: 530-13524A6, Sierra: 676-18-5432, GLM: 700-72890 | ROTOR/SENSOR WHEEL | 1 | [2] | |
| 6 | 0087 | OEM: 530-892150Q02 | SENSOR ASSEMBLY | 1 | [3] | |
| 7 | 0010 | OEM: 525-10-66686, GLM: 700-22311 | SCREW (#10-32 x 1.00) | 1 | ||
| 7 | 0010 | OEM: 525-10-72202, GLM: 700-22312 | SCREW (#10-32 x 1.25) | 1 | ||
| 8 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 9 | 0043 | OEM: 525-43-818807, GLM: 700-19360 | GEAR | 1 | ||
| 10 | 0017 | OEM: 525-17-47617, GLM: 700-22195 | PIN | 1 | ||
| 11 | 0012 | OEM: 525-12-90931, GLM: 700-21661 | THRUST WASHER | 1 | ||
| 12 | 0027 | OEM: 525-27-344863, Sierra: 676-18-0874 | GASKET | 1 | [4] | |
| 13 | 0000 | OEM: 525-52185 | CLAMP | 1 | ||
| 14 | 0010 | OEM: 525-10-806681 | SCREW (.375-16 x .875) | 1 | ||
| 15 | 0084 | OEM: 530-816761Q16, Sierra: 676-18-8811-1 | CABLE KIT Spark Plugs And Coil | 1 | [5] | |
| 16 | 0085 | OEM: 525-85-63709A1 | BOOT/TERMINAL KIT | 8 | ||
| 17 | 0033 | OEM: 525-33-816336Q | SPARK PLUG | 6 | [6] | |
| 18 | 0392 | 805570A2 | COIL KIT | 1 | ||
| 19 | 0000 | OEM: 525-65970T1 | BRACKET | 1 | ||
| 20 | 0010 | 41408 | SCREW (#10-32 x 1.50) | 1 | ||
| 21 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 22 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 2 | ||
| 23 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 24 | 0012 | OEM: 525-12-20553, GLM: 700-21675 | WASHER (.406 x .734 x .063) | 1 | ||
| 25 | 0016 | OEM: 525-16-90096A1 | STUD ASSEMBLY (#10-32 x Special) | 2 | ||
| 26 | 0054 | OEM: 525-54-72821 | RETAINER | 2 | ||
| - | 0027 | OEM: 525-27-824326A02, GLM: 700-39014 | GASKET SET | 1 |
PART NOTES:
[1] - Alternate part numbers:
815407A 2Service Part
815407Q02QS
815407Q 5QS Kit
815407T 5MPP Kit
[2] - Alternate part numbers:
13524A 6Service Part
13524Q06QS
815407Q 5QS Kit
815407T 5MPP Kit
[3] - Alternate part numbers:
861780A 2Service Part
892150K02MPP
892150Q02QS
[4] - Component Of Overhaul Gasket Set 824326A96
[5] - Alternate part numbers:
816761A16Service Part
816761K16MPP
816761Q16QS
[6] - Alternate part numbers:
816336QQS
8M0176613QS Belgium
