4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Wiring Harness And Electrical Components

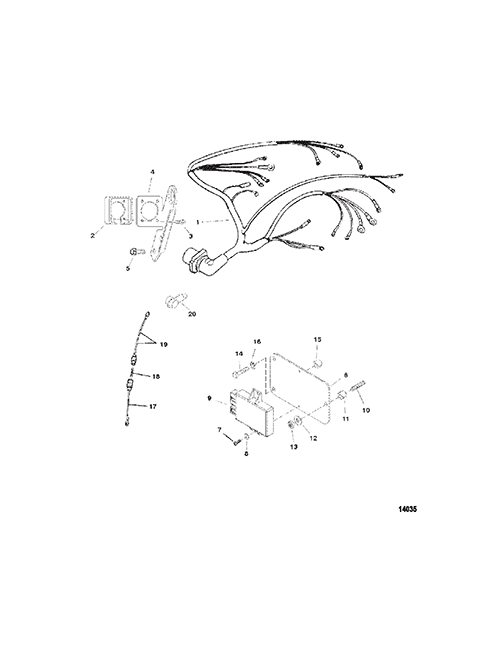

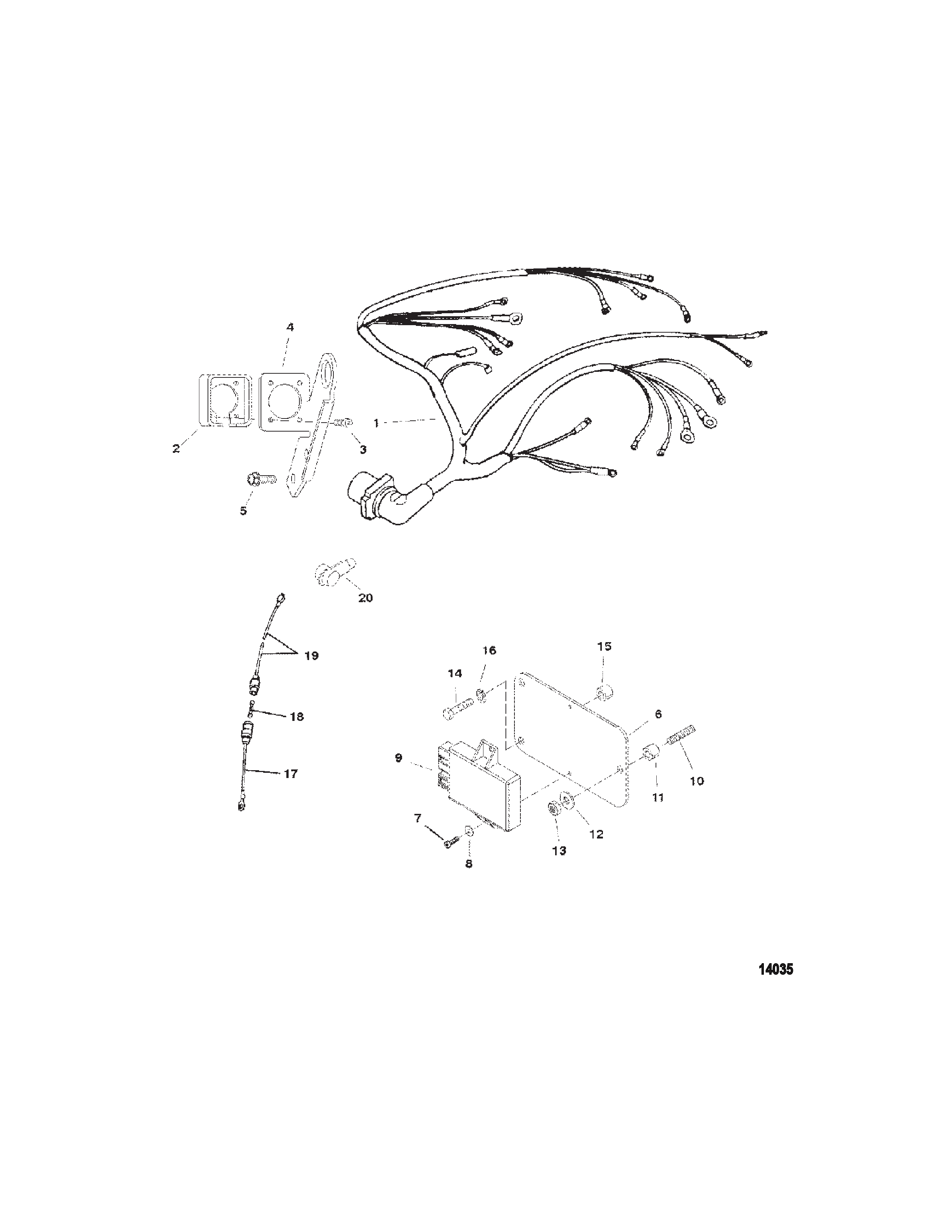

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Brackets (Mando)
- Carburetor (Mercarb - Two Barrel)
- Carburetor (Weber)
- Carburetor And Throttle Linkage (2 Barrel)
- Carburetor And Throttle Linkage (Four Barrel)
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Decals
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhast Manifold And Exhaust Elbow (Two Piece)
- Exhaust Manifold (One Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Serpentine Belts (S-N 0L010044 thru 0L618999)
- Serpentine Belts S-N 0L619000 And Above
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 and SAV1)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0084 | 861235A5 | HARNESS ASSEMBLY Wiring | (4.3L Alpha) [0L618999] & Below | 1 | |
| 1 | 0084 | OEM: 525-84-861235A6 | HARNESS ASSEMBLY Wiring | (4.3LH Alpha And 4.3L/LH Bravo) [0L618999] & Below | 1 | |
| 1 | 0084 | 862163T1 | HARNESS ASSEMBLY Wiring | [0L619000] THRU [0M330610] | 1 | [1] |
| 1 | 0084 | OEM: 525-84-862163T02 | HARNESS ASSEMBLY Wiring | [0M330611] & Up | 1 | |
| 2 | 0000 | OEM: 525-26079A2 | PLATE KIT Wire Harness Mount | 1 | ||
| 3 | 0010 | OEM: 525-10-15001 | SCREW (#8-16 x .875) | 4 | ||
| 4 | 0000 | 807453T | BRACKET Harness Mounting/Lifting Eye | 1 | ||
| 5 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 2 | ||
| 6 | 0000 | OEM: 525-861516 | BRACKET | 1 | ||
| 7 | 0010 | OEM: 525-10-861520 | SCREW (#10-32 x .500) | 2 | ||
| 8 | 0012 | OEM: 525-12-89302 | WASHER (.203 x .406 x .040) | 2 | ||
| 9 | 0000 | OEM: 530-861251T1 | ICM MODULE Ignition Control Module | (Alpha) | 1 | |
| 9 | 0000 | OEM: 525-861252T1 | ICM MODULE Ignition Control Module | (Bravo) | 1 | |
| 10 | 0010 | OEM: 525-10-24323, GLM: 700-22336 | SET SCREW (.250-20 x 1.25) | (Two Piece Exhaust Manifold) | 3 | |
| 11 | 0023 | OEM: 525-23-806981, GLM: 700-22198 | SPACER | (Two Piece Exhaust Manifold) | 3 | |
| 12 | 0012 | OEM: 525-12-35462 | WASHER (.2656 x .625 x .0625) Stainless Steel | (Two Piece Exhaust Manifold) | 3 | |
| 13 | 0011 | OEM: 525-11-64015 | NUT (.250-20) | (Two Piece Exhaust Manifold) | 3 | |
| 14 | 0010 | OEM: 525-10-98253 | SCREW (.250-20 x .500) | (OnePiece Exhaust Manifold) | 2 | |
| 14 | 0010 | OEM: 525-10-76630 | SCREW (.250-20 x 1.00) | (OnePiece Exhaust Manifold) | 1 | |
| 15 | 0023 | OEM: 525-23-91034 | SPACER (.380 x 1.00 x .530) | (OnePiece Exhaust Manifold) | 1 | |
| 16 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel | (OnePiece Exhaust Manifold) | 3 | |
| 17 | 0084 | OEM: 525-84-95084A9 | CABLE ASSEMBLY (91.00 Inches) Red/Purple Strip | (Bravo Engines) | 1 | |
| 18 | 0088 | OEM: 525-88-79091 | FUSE 20 Ampere | (Bravo Engines) | 1 | |
| 19 | 0084 | OEM: 525-84-95084A10 | CABLE ASSEMBLY (5.00 Inches) Red | (Bravo Engines) | 1 | |
| 20 | 0085 | 79695 | BOOT Insulator - Black | 1 |
PART NOTES:
[1] - Part Number Is New And Listed For The First Time
