4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0F601127 THRU 0F802999 - CARBURETOR AND THROTTLE LINKAGE (4 BARREL)

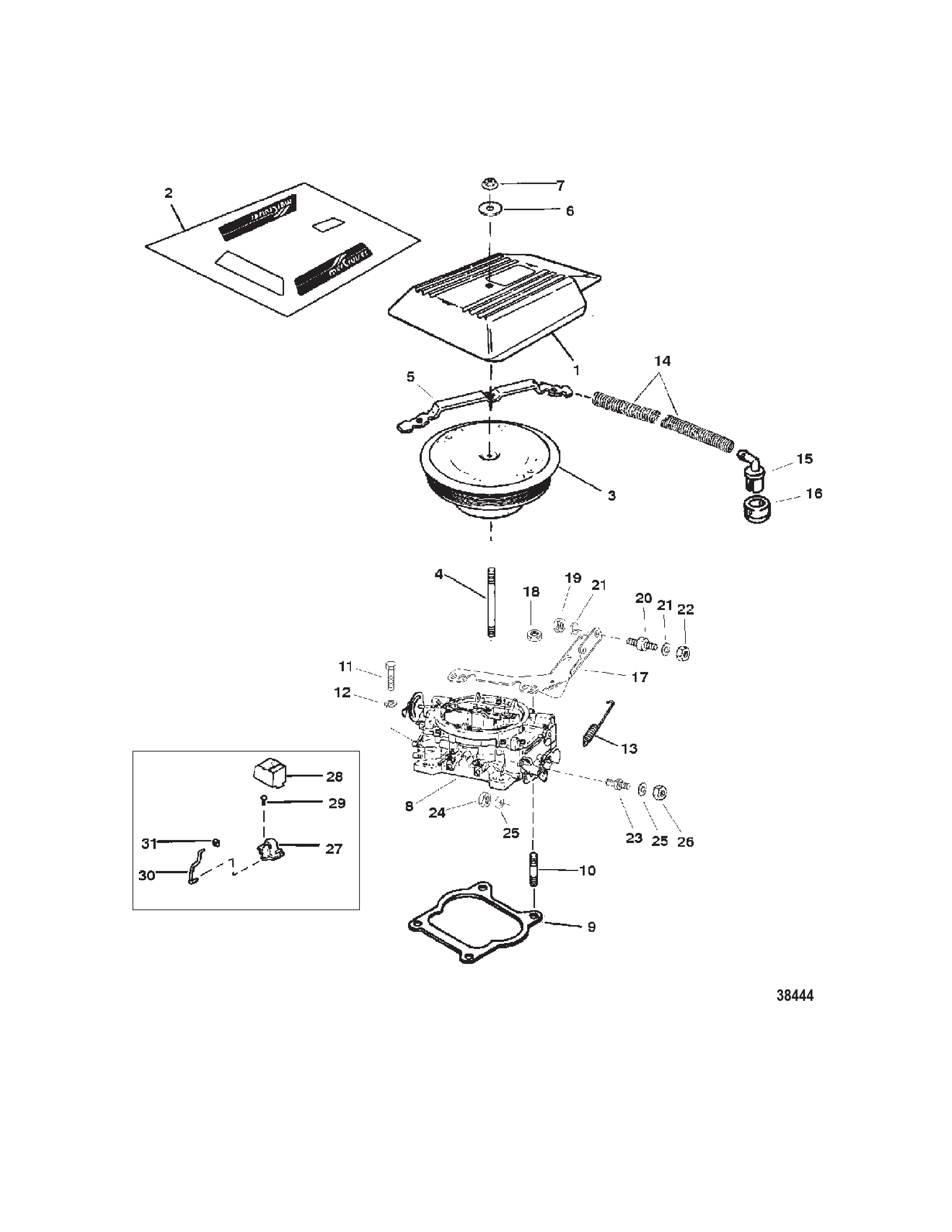

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST RISER
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- MERCATHODE COMPONENTS
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SEA WATER PUMP ASSEMBLY (USE WITH BRAVO ENGINES)
- SERVICE AND SUPPORT INFORMATION
- SHIFT BRACKET (USE WITH ALPHA ENGINES)
- SHIFT BRACKET (USE WITH BRAVO ENGINES)
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- SWISS EMISSIONS (BSO1 and SAV1)
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-18484A3 | COVER Carburetor | 1 | ||
| 2 | 0037 | 812776A23 | DECAL SET | 1 | ||
| 3 | 0000 | OEM: 525-805298A1 | FLAME ARRESTOR | 1 | ||
| 4 | 0016 | OEM: 525-16-805296 | STUD (4.50 Inch) | 1 | ||
| 5 | 0000 | OEM: 525-805314 | RETAINER Breather Hose | 1 | ||
| 6 | 0012 | OEM: 525-12-86400 | WASHER | 1 | ||
| 7 | 0011 | 35045 | NUT (.250-28) | 1 | ||
| 8 | 3310 | 818660A1 | CARBURETOR | (SEE "CARBURETOR (WEBER) FOR BREAKDOWN) | 1 | [1] |
| 8 | 3310 | 806120A1 | CARBURETOR | -SWISS EMISSIONS (BSO1 & SAV1) (SEE "CARBURETOR (WEBER) FOR BREAKDOWN) | 1 | |
| 9 | 0027 | OEM: 525-27-524572, Sierra: 676-18-2848 | GASKET | 1 | [2] | |
| 10 | 0016 | OEM: 525-16-70236, GLM: 700-22482 | STUD (.312 x 1.500) | 2 | ||
| 11 | 0010 | OEM: 525-10-35386 | SCREW (.312-18 x 1.00) | 2 | ||
| 12 | 0013 | OEM: 525-13-39107, GLM: 700-21496 | LOCKWASHER (.312-24) | 2 | ||
| 13 | 0024 | 32817 | SPRING | 1 | ||
| 14 | 0032 | 1589418 | HOSE Breather | 2 | ||
| 15 | 0000 | 97850 | ELBOW 90 Degree Breather | 2 | ||
| 16 | 0025 | OEM: 525-25-827152 | GROMMET | 2 | ||
| 17 | 0000 | OEM: 525-805359T | BRACKET | 1 | ||
| 18 | 0011 | OEM: 525-11-29250 | NUT (.312-24) | 2 | ||
| 19 | 0011 | 20361 | NUT (.250-28) | 1 | ||
| 20 | 0016 | OEM: 525-16-818192 | STUD Anchor | 1 | ||
| 21 | 0012 | OEM: 525-12-24664 | WASHER (M4 x 20) | 2 | ||
| 22 | 0011 | 35045 | NUT (.250-28) | 1 | ||
| 23 | 0016 | 96112 | STUD (.250-28 x 2.00) Throttle Cable Anchor | 1 | ||
| 24 | 0011 | 20361 | NUT (.250-28) | 1 | ||
| 25 | 0012 | OEM: 525-12-29245, Sierra: 676-18-4275, GLM: 700-21490 | WASHER (.281 x .500 x .060) Stainless Steel | 2 | ||
| 26 | 0011 | 35045 | NUT (.250-28) | 1 | ||
| 27 | 0000 | 66205 | CHOKE Automatic | 1 | ||
| 28 | 0000 | OEM: 525-63922 | COVER | 1 | ||
| 29 | 0010 | OEM: 525-10-69235 | SCREW (.190-24 x .500) | 1 | ||
| 30 | 0000 | 806936 | ROD Choke | 1 | ||
| 31 | 0053 | OEM: 525-53-818299 | E RING | 1 |
PART NOTES:
[1] - Alternate part numbers:
804631R02Reman
818660A 1QS
[2] - PART INCLUDED IN ENGINE OVERHAUL GASKET SET 824326A93
