4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0F601127 THRU 0F802999 - OIL PAN AND OIL PUMP

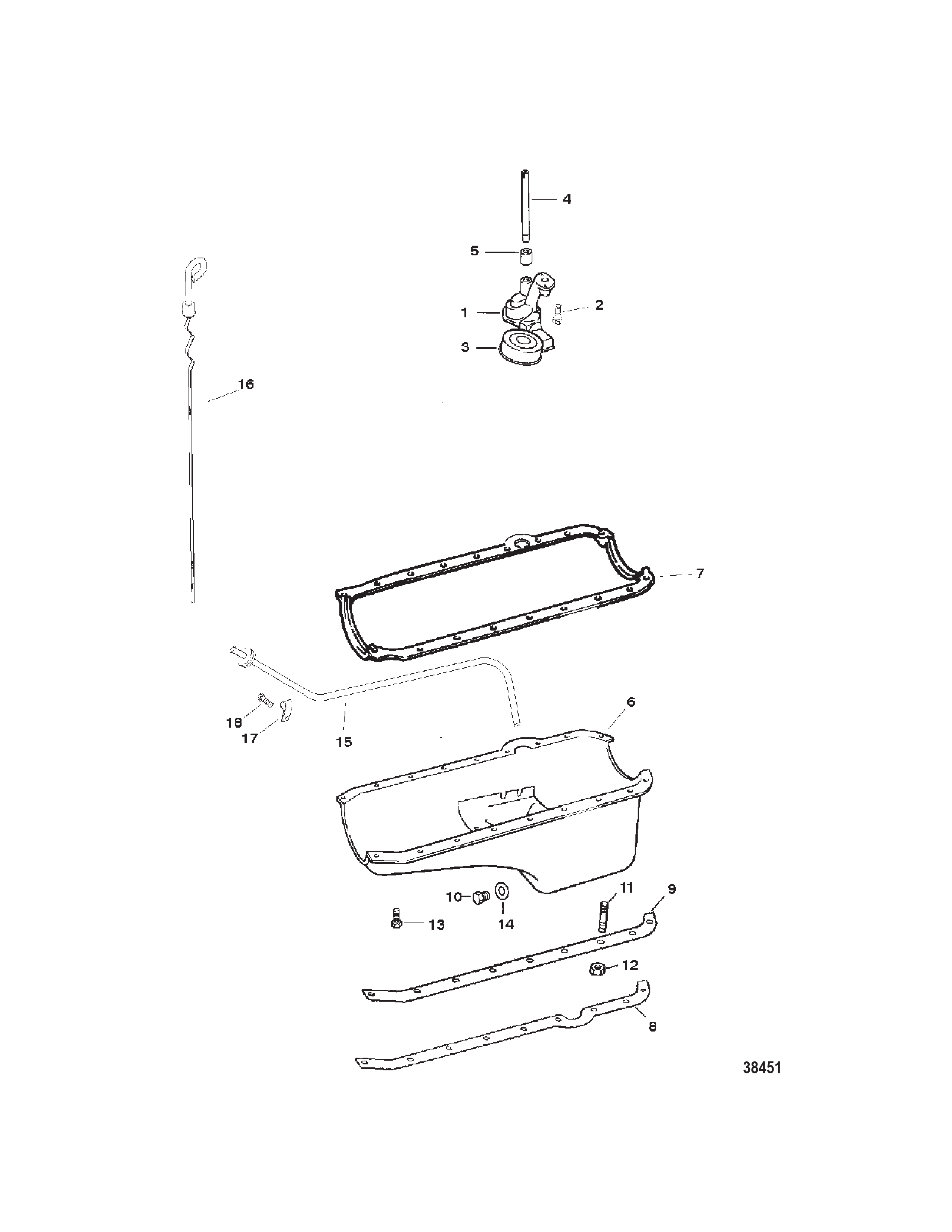

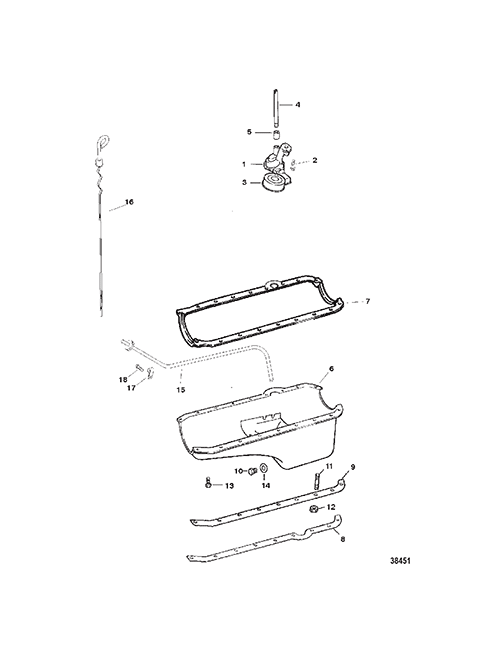

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST RISER
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- MERCATHODE COMPONENTS
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SEA WATER PUMP ASSEMBLY (USE WITH BRAVO ENGINES)
- SERVICE AND SUPPORT INFORMATION
- SHIFT BRACKET (USE WITH ALPHA ENGINES)
- SHIFT BRACKET (USE WITH BRAVO ENGINES)
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- SWISS EMISSIONS (BSO1 and SAV1)
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 17617 | PUMP Oil | (5/8 IN. I.D. PIPE HOLE) | 1 | |
| 1 | 0000 | 809907 | PUMP ASSEMBLY Oil | (3/4 IN. I.D. PIPE HOLE) | 1 | |
| 2 | 0010 | OEM: 525-10-17346 | SCREW (7/16-14 x 2-3/8 in.) | 1 | ||
| 3 | 0000 | 35354 | SCREEN ASSEMBLY | (5/8 IN. O.D. PIPE) | 1 | |
| 3 | 0000 | 809908 | SCREEN | (3/4 IN. O.D. PIPE) | 1 | |
| 4 | 0000 | OEM: 525-36184 | SHAFT | 1 | ||
| 5 | 0023 | OEM: 525-23-36183 | RETAINER | 1 | ||
| 6 | 0000 | 14244 | PAN Oil | (DRAIN HOLE HAS 1/2-20 THREADS) STAMPED STEEL | 1 | |
| 7 | 0027 | 14247 | GASKET SET | STAMPED STEEL | 1 | [1] |
| 8 | 0000 | 14245 | REINFORCEMENT | (STARBOARD) STAMPED STEEL | 1 | |
| 9 | 0000 | 14246 | REINFORCEMENT | (PORT) STAMPED STEEL | 1 | |
| 10 | 0010 | OEM: 525-10-49956 | SCREW Drain (1/2-20) | STAMPED STEEL | 1 | |
| 11 | 0016 | OEM: 525-16-11989 | STUD (.312-18 x 1.6718) | STAMPED STEEL | 4 | |
| 12 | 0011 | OEM: 525-11-11971 | NUT (.312-18) | STAMPED STEEL | 4 | |
| 13 | 0010 | OEM: 525-10-72607 | SCREW (.250-20 x .375) | STAMPED STEEL | 12 | |
| 6 | 0000 | 809980 | PAN Oil | (DRAIN HOLE HAS 12MM THREADS) ALUMINUM | 1 | |
| 7 | 0027 | OEM: 525-27-142471, Sierra: 676-18-61513 | GASKET SET | ALUMINUM | 1 | [1] |
| 8 | 0010 | 809981 | SCREW Drain (12MM) | ALUMINUM | 1 | |
| 11 | 0016 | OEM: 525-16-11989 | STUD (.312-18 x 1.6718) | ALUMINUM | 2 | |
| 12 | 0011 | OEM: 525-11-11971 | NUT (.312-18) | ALUMINUM | 2 | |
| 13 | 0010 | OEM: 525-10-726071 | SCREW (5/16-18x x .875) | ALUMINUM | 10 | |
| 14 | 0027 | 49955 | GASKET Drain | 1 | [1] | |
| 15 | 0000 | OEM: 525-12117A5 | TUBE | 1 | ||
| 16 | 0000 | 41092T2 | GAUGE Oil Level | 1 | ||
| 17 | 0054 | OEM: 525-54-805625 | CLIP Dipstick Tube | 1 | ||
| 18 | 0010 | OEM: 525-10-35366 | SCREW | 1 | ||
| 19 | 0027 | OEM: 525-27-824326A93, GLM: 700-39013 | GASKET SET |
PART NOTES:
[1] - PART INCLUDED IN ENGINE OVERHAUL GASKET SET 824326A93
