4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0F601127 THRU 0F802999 - POWER STEERING COMPONENTS

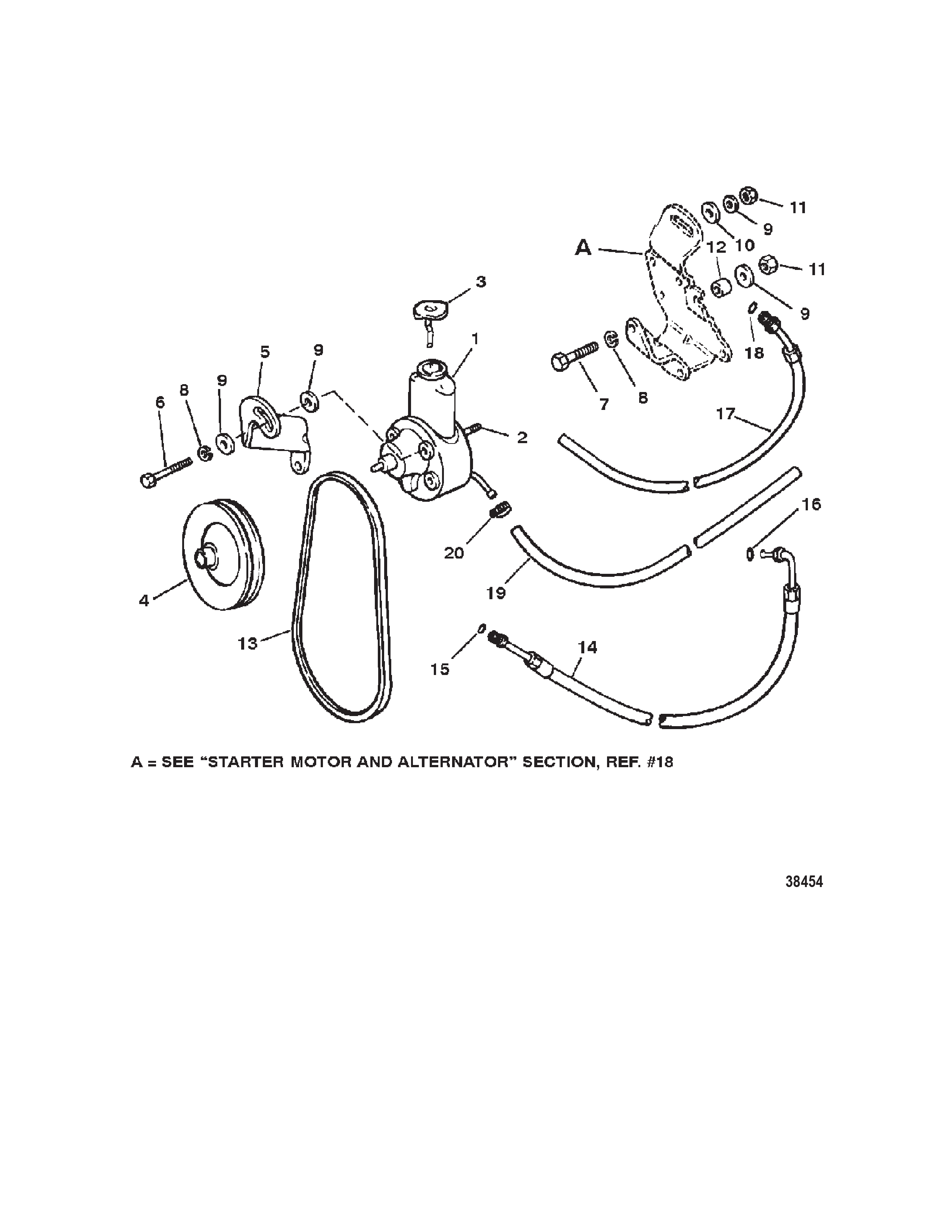

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 16792A1 PUMP ASSEMBLY Power Steering   1
2 0016 OEM: 525-16-41877 STUD (M10)   2
3 0036 OEM: 525-36-95805 CAP   1
4 0000 OEM: 525-73873A1, Sierra: 676-18-8227 PULLEY   1
5 0000 OEM: 525-15082T BRACE   1
6 0010 OEM: 525-10-40001192 SCREW (M10 x 25)   1
7 0010 OEM: 525-10-40001188 SCREW (M10 x 20)   1
8 0013 OEM: 525-13-400248 LOCKWASHER (M10)   2
9 0023 OEM: 525-23-72057 SPACER (1.00 Outside Diameter x .125 x Thick)   4
10 0012 OEM: 525-12-28105 WASHER   1
11 0011 OEM: 525-11-90517 NUT (M10)   2
12 0023 OEM: 525-23-45353 SPACER   1
13 0057 816295T V BELT   1
14 0032 OEM: 525-32-80622216 HOSE (FITTINGS ON BOTH ENDS) 1
15 0025 OEM: 525-25-89879 O-RING (.301 x .064)   1
16 0025 OEM: 525-25-806232 O-RING (.239 x .064)   1
17 0032 OEM: 525-32-80622142 HOSE ASSEMBLY (84.00 Inches Bulk) Return (FITTING ON ONE END) 1
18 0025 OEM: 525-25-89879 O-RING (.301 x .064)   1
19 0032 5251914 HOSE (53.00 Inches Bulk) Pump to Oil Cooler   1
20 0054 OEM: 525-54-815504105 CLAMP Worm Gear (11-18 mm)   3
