4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0F601127 THRU 0F802999 - INTAKE MANIFOLD AND FRONT COVER

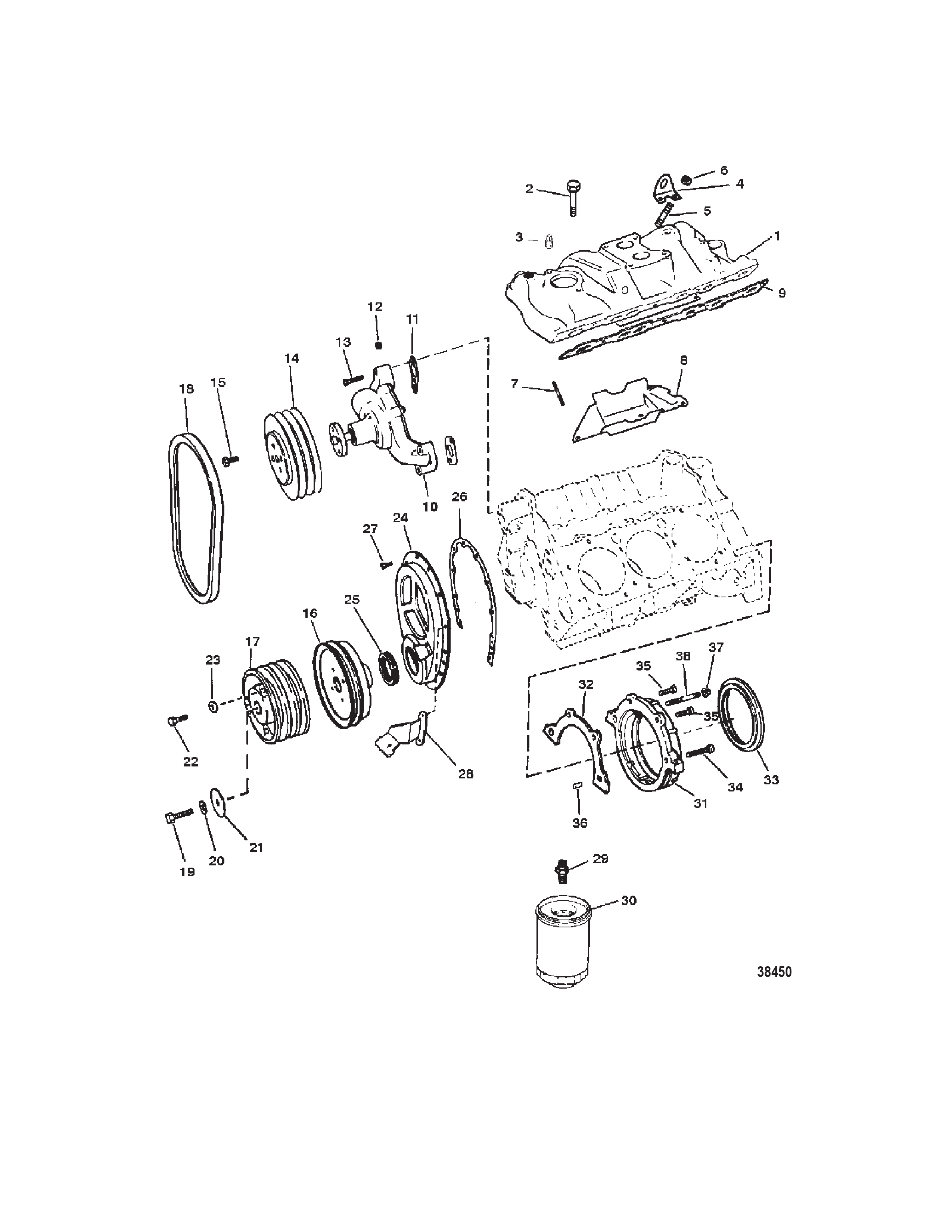

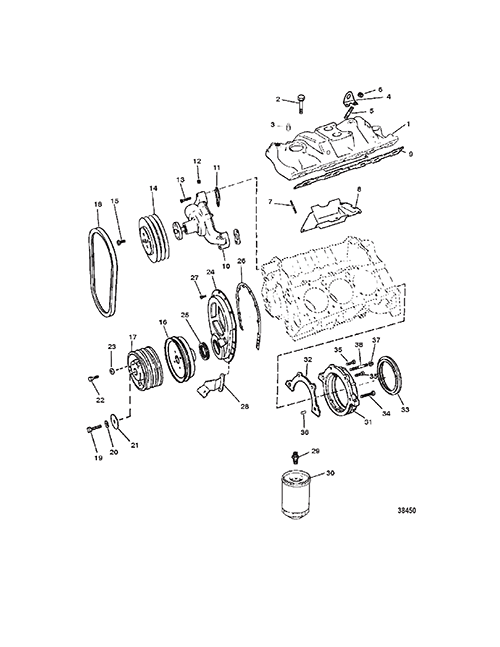

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST RISER
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- MERCATHODE COMPONENTS
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SEA WATER PUMP ASSEMBLY (USE WITH BRAVO ENGINES)
- SERVICE AND SUPPORT INFORMATION
- SHIFT BRACKET (USE WITH ALPHA ENGINES)
- SHIFT BRACKET (USE WITH BRAVO ENGINES)
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- SWISS EMISSIONS (BSO1 and SAV1)
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 824324 | MANIFOLD Intake | (2 BBL.) | 1 | |
| 1 | 0000 | 824330 | MANIFOLD Intake | (4 BBL.) | 1 | |
| 2 | 0010 | OEM: 525-10-11976 | SCREW (.375-16 x 1.00) | 8 | ||
| 3 | 0022 | OEM: 525-22-75983 | PLUG (1/2-14) | 1 | ||
| 4 | 0000 | 42453 | BRACKET Front | 1 | ||
| 4 | 0054 | 47512 | LIFTING EYE Rear | 1 | ||
| 5 | 0016 | 805357 | STUD (.375-16 x 2.130) | 4 | ||
| 6 | 0011 | OEM: 525-11-32219 | NUT (.375-16) | 4 | ||
| 7 | NSS | NOT SOLD SEPARATE STUD (GM#3959544) | 4 | [1] | ||
| 8 | 0000 | 824325 | GUARD | 1 | ||
| 9 | 0027 | OEM: 525-27-824326, Sierra: 676-18-1238 | GASKET SET | 1 | [2] | |
| 10 | 0000 | 850399 | PUMP ASSEMBLY Water | 1 | [3] | |
| 11 | 0027 | OEM: 525-27-34897, Sierra: 676-18-0891, GLM: 700-31380 | GASKET | 2 | [2] | |
| 12 | 0022 | OEM: 525-22-48336 | PLUG Water Pump Pipe (1/2-14) | 1 | ||
| 13 | 0010 | OEM: 525-10-32132 | SCREW (.375-16 x 1.750) | 1 | ||
| 13 | 0010 | OEM: 525-10-47688 | SCREW (.375-16 x 2.750) | 1 | ||
| 13 | 0010 | 52200 | SCREW (1.625 In.) (3/8-16 x 1-1/2 in.) | 1 | ||
| 13 | 0016 | 35342 | STUD (.312-24/.375-16 x 2.5625) | 1 | ||
| 14 | 0000 | 19692T | PULLEY (7 In. Diameter) | 1 | ||
| 15 | 0010 | OEM: 525-10-47277 | SCREW (.312-24 x .750) | 4 | ||
| 16 | 0000 | 824319 | BALANCER | (USE WITH STAMPED METAL TIMING COVER) | 1 | |
| 16 | 0000 | 809892 | BALANCER Harmonic | (USE WITH PLASTIC TIMING COVER) | 1 | |
| 17 | 0000 | 90081A1 | PULLEY | 1 | ||
| 18 | 0057 | 48120A1 | V BELT (46 Inch) | 1 | ||
| 19 | 0010 | 32515 | SCREW (.437-20 x 2.50) | 1 | ||
| 20 | 0013 | OEM: 525-13-39131 | LOCKWASHER (.437) | 1 | ||
| 21 | 0012 | 35332 | WASHER | 1 | ||
| 22 | 0010 | OEM: 525-10-53833 | BOLT (.375-24 x 2.00) | 3 | ||
| 23 | 0012 | OEM: 525-12-34714 | WASHER | 3 | ||
| 24 | 0000 | 824322 | COVER | STAMPED METAL TIMING COVER | 1 | |
| 24 | 0000 | 809893 | TIMING COVER ASSEMBLY (screws, grommets and oil seal are N.S.S.) | PLASTIC TIMING COVER | 1 | |
| 25 | 0026 | OEM: 525-26-97335, Sierra: 676-18-1213 | SEAL Oil | STAMPED METAL TIMING COVER | 1 | [2] |
| 26 | 0027 | 824323 | GASKET | STAMPED METAL TIMING COVER | 1 | |
| 27 | 0010 | OEM: 525-10-35366 | SCREW | STAMPED METAL TIMING COVER | 10 | |
| 28 | 0000 | OEM: 525-75435A1 | POINTER | STAMPED METAL TIMING COVER | 1 | |
| 29 | 0000 | 11972 | ADAPTER | W/O REMOTE OIL FILTER | 1 | |
| 30 | 0000 | 41815 | FILTER Oil | W/O REMOTE OIL FILTER | 1 | [4] |
| 31 | 0000 | OEM: 525-14239 | RETAINER Oil Seal | 1 | ||
| 32 | 0027 | 14241 | GASKET | 1 | [2] | |
| 33 | 0026 | OEM: 525-26-14240, Sierra: 676-18-0519, GLM: 700-85790 | SEAL Oil | 1 | [2] | |
| 34 | 0010 | 14243 | BOLT (.250-20 x 1.750) | 1 | ||
| 35 | 0010 | OEM: 525-10-14242 | BOLT (.250-20 x .875) | 2 | ||
| 36 | 0017 | OEM: 525-17-14263 | PIN Dowel | 1 | ||
| 37 | 0011 | OEM: 525-11-11996 | NUT (1/4-20) | 1 | ||
| 38 | 0016 | OEM: 525-16-14827 | STUD (.250-20 x 2.180) | 1 |
PART NOTES:
[1] - NOT SOLD SEPARATE
[2] - PART INCLUDED IN ENGINE OVERHAUL GASKET SET 824326A93
[3] - SUPERSEDES TO ANOTHER PART NUMBER
[4] - Alternate part numbers:
41815Service Part
883702KMPP
883702QQS
