4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0F601127 THRU 0F802999 - CYLINDER BLOCK AND CAMSHAFT

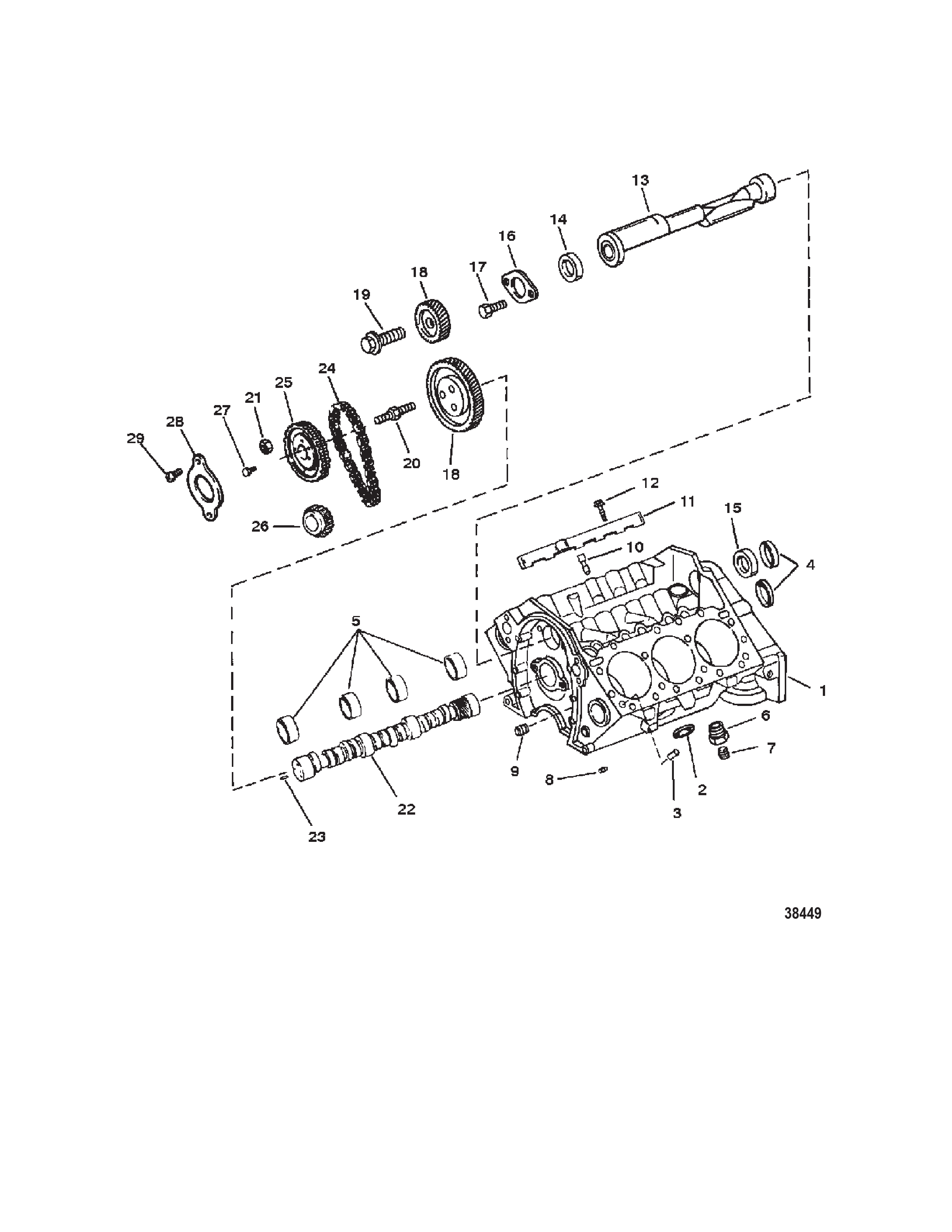

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST RISER
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- MERCATHODE COMPONENTS
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SEA WATER PUMP ASSEMBLY (USE WITH BRAVO ENGINES)
- SERVICE AND SUPPORT INFORMATION
- SHIFT BRACKET (USE WITH ALPHA ENGINES)
- SHIFT BRACKET (USE WITH BRAVO ENGINES)
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- SWISS EMISSIONS (BSO1 and SAV1)
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | NSS | NOT SOLD SEPARATE CYLINDER BLOCK ASSEMBLY | (Order Reman. Long Block 806347R2) | 1 | [1] | |
| 2 | 0019 | OEM: 525-19-34270 | EXPANSION PLUG (1.625) | 8 | ||
| 3 | 0017 | OEM: 525-17-35465 | PIN Dowel (.312) | 4 | ||
| 4 | 0022 | OEM: 525-22-72640 | PLUG Expansion | 2 | ||
| 5 | 0023 | OEM: 525-23-802999 | BEARING SET | 1 | ||
| 6 | 0022 | OEM: 525-22-48556 | BUSHING Reducer (.250 To .125) | 2 | ||
| 7 | 0022 | 328021 | PLUG Pipe (.125-27) | 2 | ||
| 8 | 0022 | OEM: 525-22-42796 | VALVE Oil Filter Bypass | 1 | ||
| 9 | 0019 | OEM: 525-19-816565 | PLUG Cup (.468) Expansion | 1 | ||
| 10 | 0000 | 811844 | LIFTER | 12 | ||
| 11 | 0000 | 824331 | RETAINER | 2 | ||
| 12 | 0010 | 824332 | SCREW | 4 | ||
| 13 | 0000 | 824148 | SHAFT Balanced | 1 | ||
| 14 | NSS | NOT SOLD SEPARATE BEARING, Ball (Front) | 1 | [1] | ||
| 15 | 0031 | OEM: 525-31-824150 | BEARING Needle | 1 | ||
| 16 | 0000 | 824153 | RETAINER Balance Shaft | 1 | ||
| 17 | 0010 | 17343 | SCREW (.250-20 x .500) | 2 | ||
| 18 | 0043 | OEM: 525-43-8241511 | GEAR KIT | 1 | [2] | |
| 19 | 0010 | 824152 | SCREW | 1 | ||
| 20 | 0016 | 824340 | STUD | 1 | ||
| 21 | 0011 | 824341 | NUT | 1 | ||
| 22 | 0431 | 824327 | CAMSHAFT | 1 | ||
| 23 | 0017 | 35312 | PIN Dowel (1/4 In. Diameter) | 1 | ||
| 24 | 0000 | 17161 | CHAIN Timing | 1 | ||
| 25 | 0043 | 824328 | SPROCKET Camshaft | 1 | ||
| 26 | 0043 | OEM: 525-43-17160 | SPROCKET Crankshaft | 1 | ||
| 27 | 0010 | 824329 | SCREW (.312-18 x .750) | 2 | ||
| 28 | 0000 | OEM: 525-824333 | RETAINER Camshaft | 1 | ||
| 29 | 0010 | OEM: 525-10-824334 | SCREW (.250-20 x .500) | 2 | ||
| - | 0000 | 806347R2 | LONGBLOCK ASSEMBLY | (2 & 4 Bbl.) | 1 | [2] |
| - | 0027 | OEM: 525-27-824326A93, GLM: 700-39013 | GASKET SET Engine Overhaul | 1 | ||
| - | 0092 | 809825 | RTV SILICONE (3 Ounce Tube) Metallic Blue | 1 | ||
| - | 0092 | 342271 | SEALING COMPOUND (16 Ounce) | 1 |
PART NOTES:
[1] - NOT SOLD SEPARATE
[2] - SUPERSEDES TO ANOTHER PART NUMBER
