4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0F601127 THRU 0F802999 - SWISS EMISSIONS (BSO1 and SAV1)

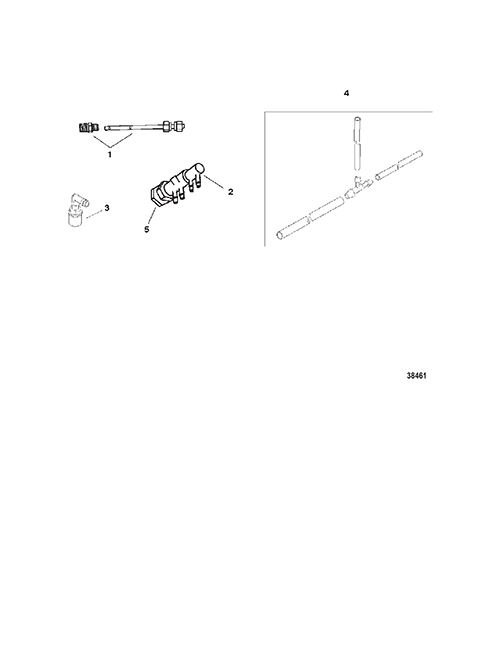

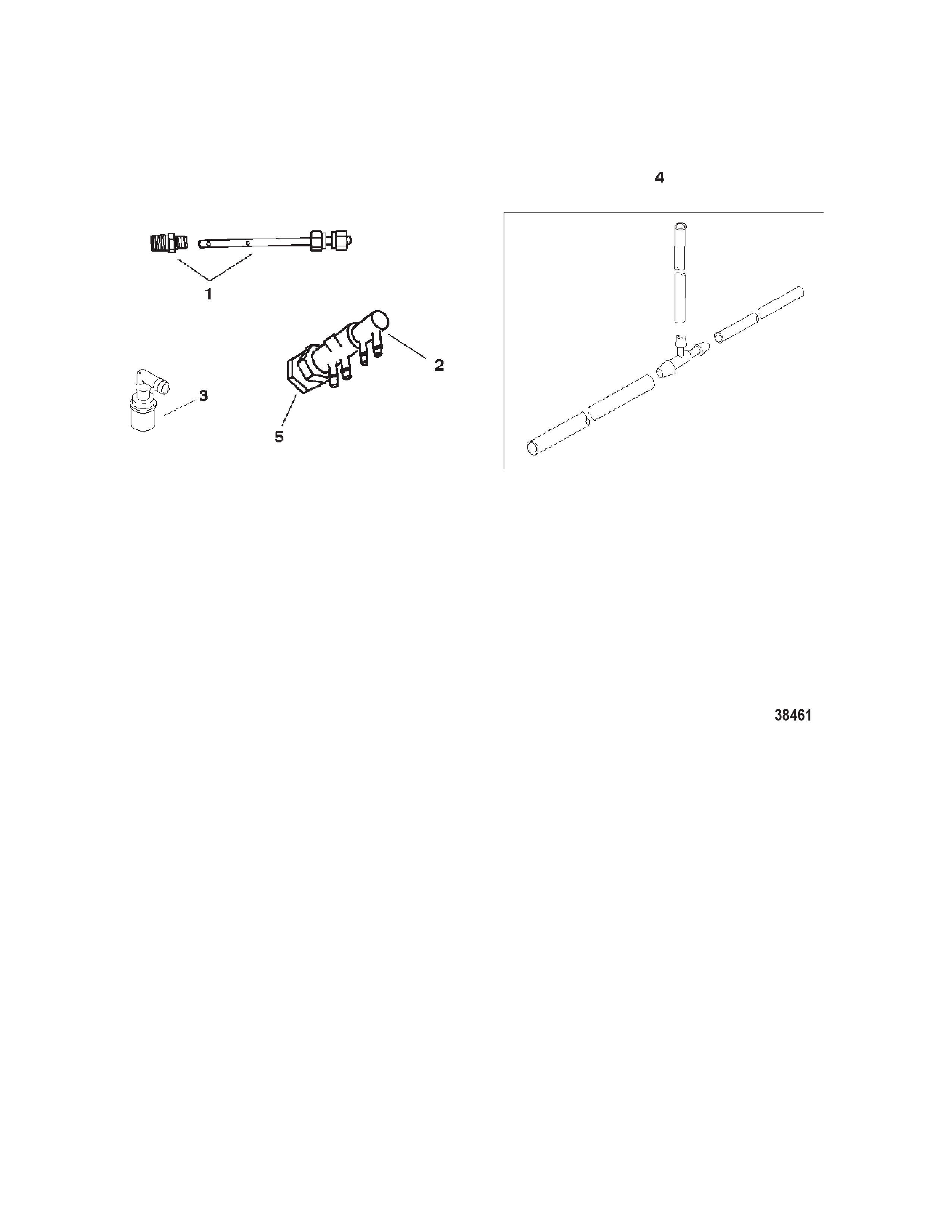

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST RISER
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- MERCATHODE COMPONENTS
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SEA WATER PUMP ASSEMBLY (USE WITH BRAVO ENGINES)
- SERVICE AND SUPPORT INFORMATION
- SHIFT BRACKET (USE WITH ALPHA ENGINES)
- SHIFT BRACKET (USE WITH BRAVO ENGINES)
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- SWISS EMISSIONS (BSO1 and SAV1)
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0091 | OEM: 525-91-806141A1 | PROBE ASSEMBLY | 2 | ||
| 2 | 0020 | 806119 | PVS EMISSIONS | 1 | ||
| 3 | 0021 | 806118 | VALVE PVC | 1 | ||
| 4 | 0022 | 806175A1 | T-FITTING ASSEMBLY (With Hoses) | 1 | ||
| 5 | 0022 | OEM: 525-22-52382 | BUSHING Reducer | 1 |
