4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0F601127 THRU 0F802999 - STANDARD COOLING SYSTEM

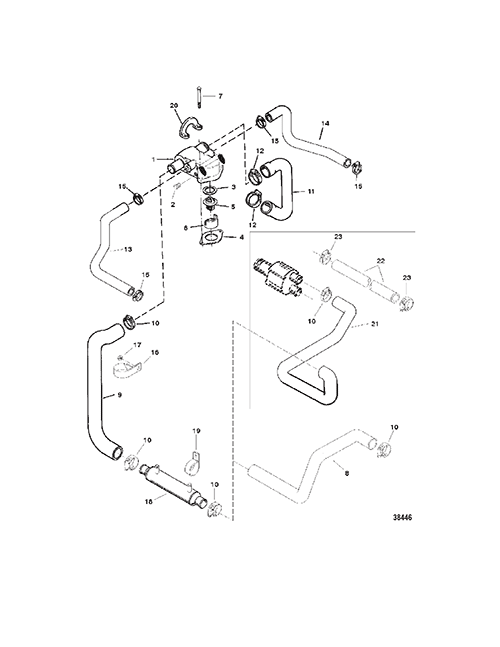

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST RISER
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- MERCATHODE COMPONENTS
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SEA WATER PUMP ASSEMBLY (USE WITH BRAVO ENGINES)
- SERVICE AND SUPPORT INFORMATION
- SHIFT BRACKET (USE WITH ALPHA ENGINES)
- SHIFT BRACKET (USE WITH BRAVO ENGINES)
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- SWISS EMISSIONS (BSO1 and SAV1)
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 860256A1 | HOUSING ASSEMBLY Thermostat | (ALPHA) | 1 | |
| 1 | 0000 | 860256A2 | HOUSING ASSEMBLY Thermostat | (BRAVO) | 1 | |
| 2 | 0022 | OEM: 525-22-32803, Sierra: 676-18-4264, GLM: 700-21894 | PLUG Pipe (.375-18) Brass | 2 | ||
| 3 | 0027 | OEM: 525-27-806871 | GASKET | 1 | [1] | |
| 4 | 0027 | OEM: 525-27-530451, Sierra: 676-18-2917 | GASKET | 1 | [2] | |
| 5 | 0000 | 8072522 | THERMOSTAT 71°C (160°F) | 1 | [3] | |
| 6 | 0023 | OEM: 530-806922 | SLEEVE | 1 | ||
| 7 | 0010 | OEM: 525-10-98508 | SCREW (.375-16 x 3.00) | 2 | ||
| 8 | 0032 | 8153641 | HOSE Oil Cooler to Drive Unit | (ALPHA) | 1 | |
| 9 | 0032 | OEM: 525-32-806856, Sierra: 676-18-70935 | HOSE Thermostat Housing to Oil Cooler | 1 | ||
| 10 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) | 4 | ||
| 11 | 0032 | 806825 | HOSE Thermostat Housing to Water Pump | 1 | ||
| 12 | 0054 | OEM: 525-54-815504232 | CLAMP Worm Gear (2.50 Diameter) | 2 | ||
| 13 | 0032 | OEM: 525-32-8066351, Sierra: 676-18-70938 | HOSE Thermostat Housing | Port Exhaust Manifold | 1 | |
| 14 | 0032 | OEM: 525-32-8066361, Sierra: 676-18-70939 | HOSE Thermostat Housing | Starboard Exhaust Manifold | 1 | |
| 15 | 0054 | OEM: 525-54-815504220 | CLAMP Worm Gear | 4 | ||
| 16 | 0054 | OEM: 525-54-47715 | CLIP | 1 | ||
| 17 | 0011 | OEM: 525-11-29250 | NUT (.312-24) | 1 | ||
| 18 | 0000 | 807292T | COOLER Power Steering Oil | 1 | ||
| 19 | 0054 | OEM: 525-54-816398 | CLIP | 1 | ||
| 20 | 0000 | OEM: 525-12552, GLM: 700-13237 | LIFTING EYE | 1 | ||
| 21 | 0032 | OEM: 525-32-88795 | HOSE Oil Cooler to Sea Water Pump | BRAVO | 1 | |
| 22 | 0032 | 1743579 | HOSE (96.00 Inches Bulk) Sea Water Pump to Drive Unit | BRAVO | 1 | |
| 23 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) | BRAVO | 2 |
PART NOTES:
[1] - PART INCLUDED IN ENGINE OVERHAUL GASKET SET 824326A93
[2] - Alternate part numbers:
53045 1Service Part
53045Q01QS
PART INCLUDED IN ENGINE OVERHAUL GASKET SET 824326A93
[3] - Alternate part numbers:
807252 2Service Part
807252Q 5QS Kit
807252T 5MPP Kit
