5.7L EFI GM 350 V-8 1999-2001 - Serial 0L325977 Thru 0M299999 - Alternator And Brackets (Delco)

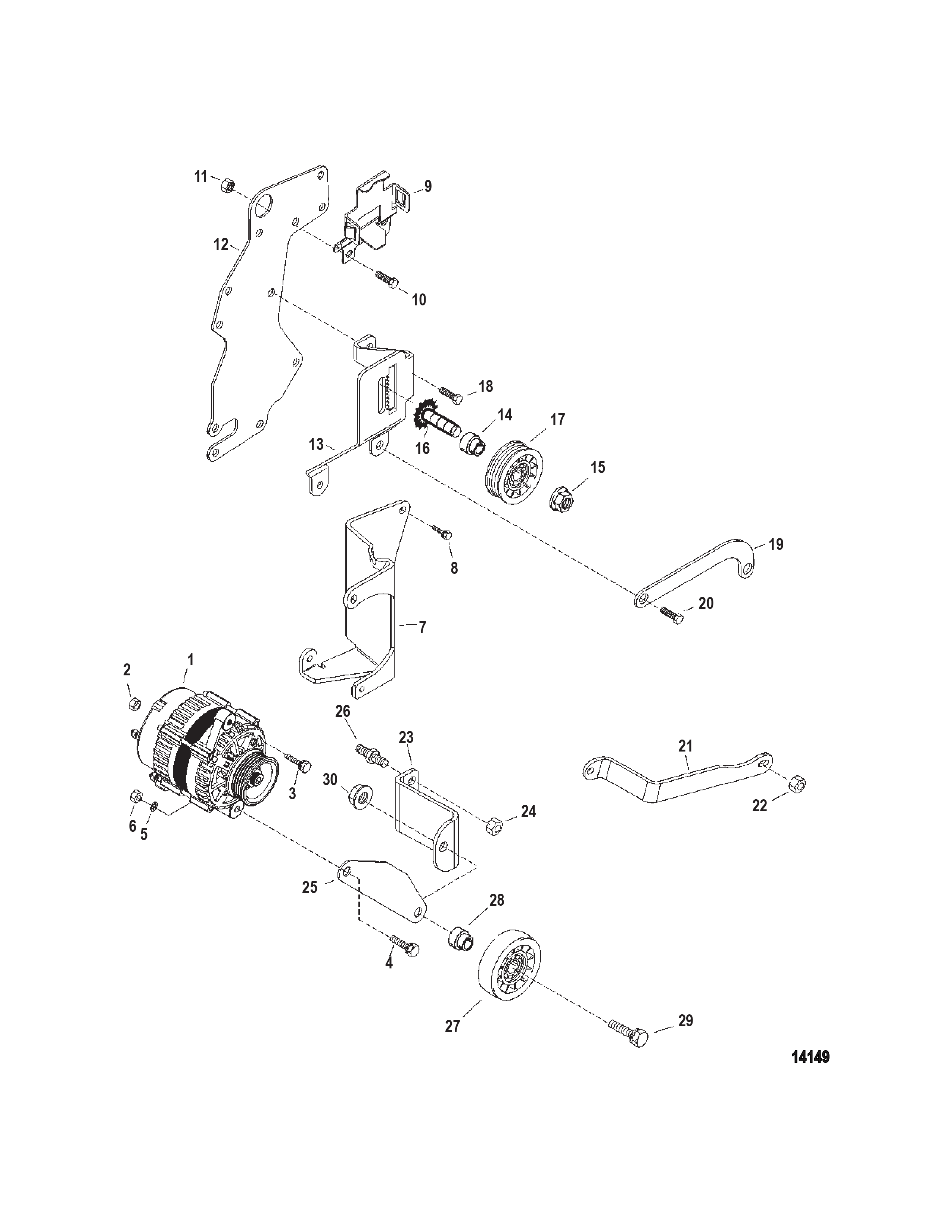

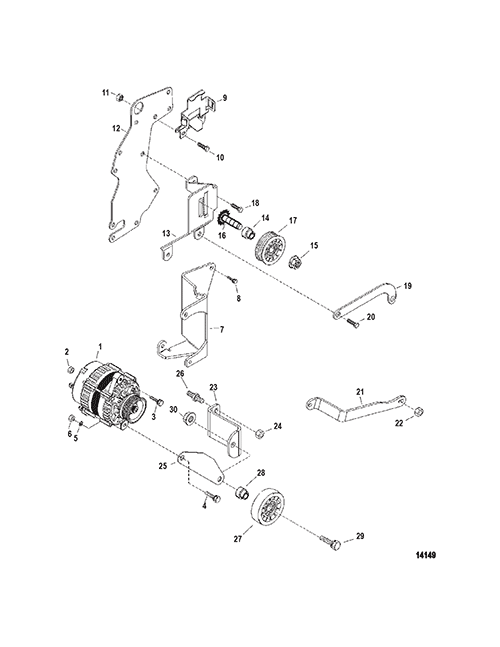

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Compentents
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor (PG260-F1)
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 862031T | ALTERNATOR ASSEMBLY (65 AMP) | (NON-SERVICEABLE) | 1 | [1] |
| 2 | 0011 | OEM: 525-11-400212 | NUT (M6) Stainless Steel | 1 | ||
| 3 | 0010 | OEM: 525-10-40001134 | SCREW (M8 x 25) | 1 | ||
| 4 | 0010 | OEM: 525-10-828213 | SCREW (.312-18 x 1.500) Hex Flange | 2 | ||
| 5 | 0012 | OEM: 525-12-57792 | WASHER | 2 | ||
| 6 | 0011 | OEM: 525-11-26484 | NUT (.312-18) | 2 | ||
| 7 | 0000 | 862055T | BRACKET Alternator Mounting | 1 | ||
| 8 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 3 | ||
| 9 | 0000 | OEM: 525-860065A1 | BRACKET KIT Oil Bottle | 1 | ||
| 10 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 6 | ||
| 11 | 0011 | OEM: 525-11-32219 | NUT (.375-16) | 2 | ||
| 12 | 0000 | 862056T | BRACKET | 1 | ||
| 13 | 0000 | OEM: 525-862083T | BRACKET Idler Adjustment | 1 | ||
| 14 | 0000 | 818380T | BUSHING | 1 | ||
| 15 | 0011 | 817618 | NUT (.437-20) | 1 | ||
| 16 | 0043 | OEM: 525-43-8183812 | PINION STUD (.437-20) Stainless Steel | 1 | ||
| 17 | 0000 | OEM: 530-807757T, Sierra: 676-18-6457 | PULLEY ASSEMBLY Idler - Black | 1 | ||
| 18 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) | 2 | ||
| 19 | 0000 | OEM: 525-862082T | BRACE Power Steering | 1 | ||
| 20 | 0010 | OEM: 525-10-40001188 | SCREW (M10 x 20) | 1 | ||
| 21 | 0000 | 862123T | BRACKET Alternator Brace | (ALPHA) | 1 | |
| 22 | 0011 | OEM: 525-11-29250 | NUT (.312-24) | (ALPHA) | 1 | |
| 23 | 0000 | OEM: 525-862084T | BRACKET Idler | (BRAVO) | 1 | |
| 24 | 0011 | OEM: 525-11-32219 | NUT (.375-16) | (BRAVO) | 2 | |
| 25 | 0000 | OEM: 525-862085T | BRACE Idler Bracket | (BRAVO) | 1 | |
| 26 | 0016 | OEM: 525-16-860102 | STUD (.375-16 x 1.730) | (BRAVO) | 2 | |
| 27 | 0000 | 818382 | PULLEY | (BRAVO) | 1 | |
| 28 | 0000 | 818380T | BUSHING | (BRAVO) | 1 | |
| 29 | 0010 | OEM: 525-10-56393 | SCREW (.437-20 x 1.75) | (BRAVO) | 1 | |
| 30 | 0011 | 817618 | NUT (.437-20) | (BRAVO) | 1 |
PART NOTES:
[1] - Alternate part numbers:
862031R01Reman
862031TQS
