5.7L EFI GM 350 V-8 1999-2001 - Serial 0L325977 Thru 0M299999 - Mercathode Compentents

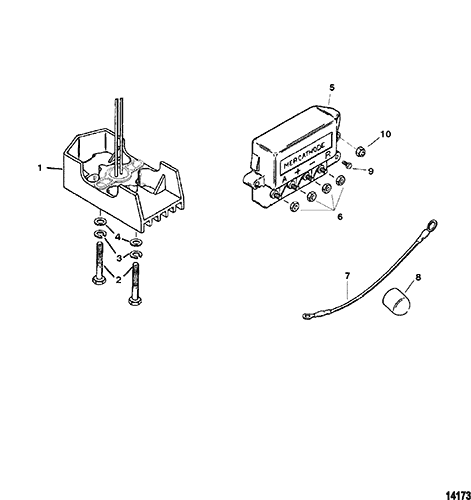

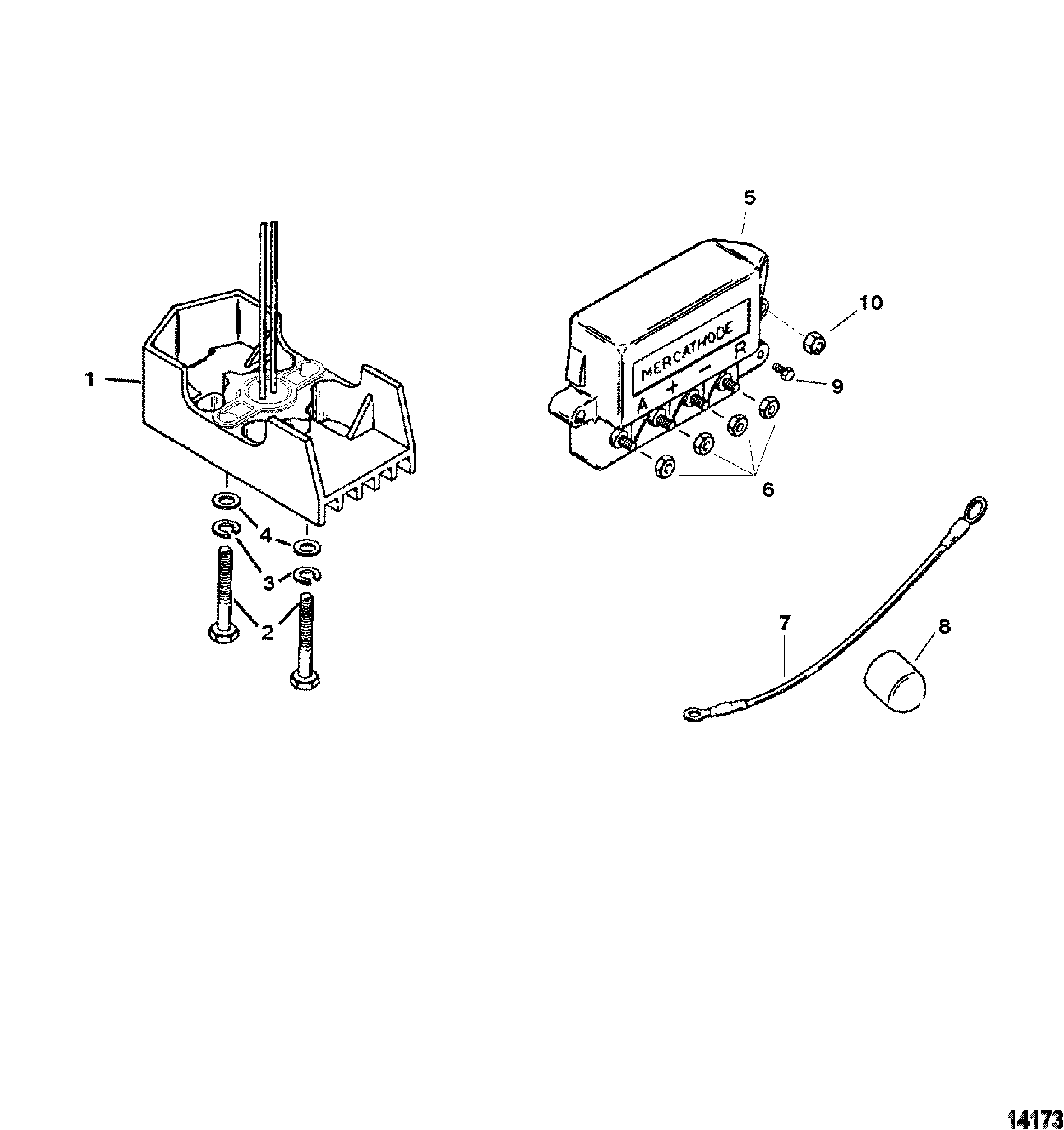

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Compentents
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor (PG260-F1)
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 98869A17 | ELECTRODE ASSEMBLY | 1 | 98869A11 | |||||
| 2 | 10-69067 | SCREW, (.250-20 x 1.375) | 2 | ||||||
| 3 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 4 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 5 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
| 6 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 7 | 84-88543A3 | CABLE ASSEMBLY | 1 | ||||||
| 8 | 44574T | CAP | 2 | 44574 | |||||
| 9 | 10-62568 | SCREW, (#10-16 x .375) | 1 | ||||||
| 10 | 11-29488 | 700-21163 | NUT, (#10-32) | 2 | No longer made, limited availability |
