5.7L EFI GM 350 V-8 1999-2001 - Serial 0L325977 Thru 0M299999 - Power Steering Components

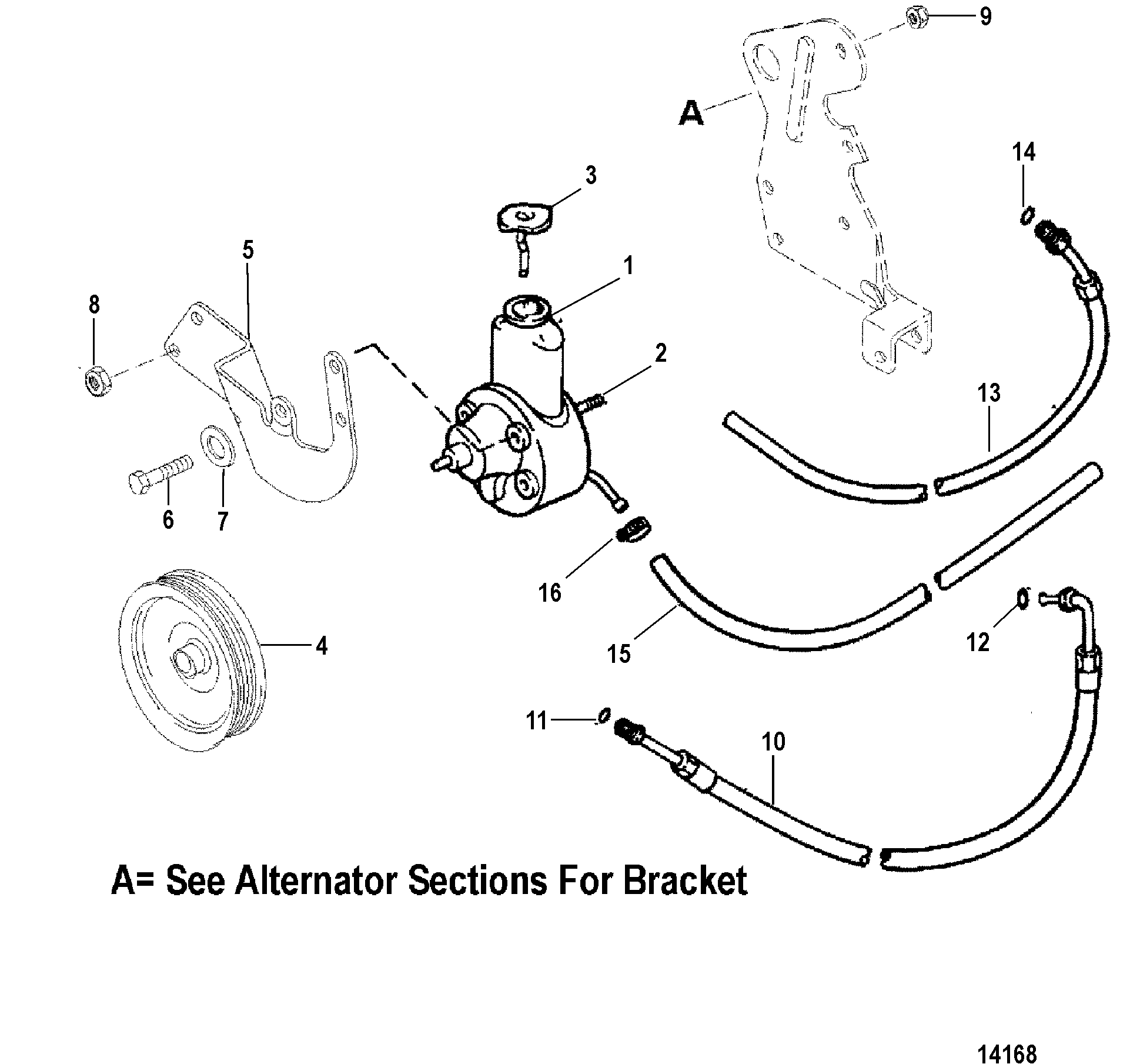

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Compentents
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor (PG260-F1)
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | PUMP ASSEMBLY | 1 | Pump DOES NOT come with pulley | |||||
| 2 | 16-41877 | STUD, (M10) | 2 | ||||||
| 3 | 36-95805 | CAP | 1 | ||||||
| 4 | 861578 | PULLEY | 1 | Pulley NOT included with pump | |||||
| 5 | 807751T01 | BRACE | 1 | 807751T | |||||
| 6 | 10-40001188 | SCREW, (M10 x 20) | 3 | ||||||
| 7 | WASHER | 3 | |||||||
| 8 | 11-32219 | NUT, (.375-16) | 3 | ||||||
| 9 | 11-90517 | NUT, (M10) | 1 | ||||||
| 10 | 32-80622216 | HOSE | 1 | (Fittings On Both Ends) | |||||
| 11 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 12 | 25-806232 | O-RING, (.239 x .064) | 1 | ||||||
| 13 | 32-80622142 | HOSE ASSEMBLY, (84.00 Inches Bulk), Return | 1 | (Fitting On One End) | |||||
| 14 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 15 | 32-8M0062341 | HOSE, (53.00 Inches Bulk), Pump To Oil Cooler | 1 | 32-5251914 | |||||
| 16 | 54-815504105 | CLAMP, Worm Gear | 3 | ||||||
| NS | 19-8079921 | COVER, Hose Clamp End | AR | No longer made, limited availability |
