5.7L EFI GM 350 V-8 1999-2001 - Serial 0L325977 Thru 0M299999 - Throttle Linkage

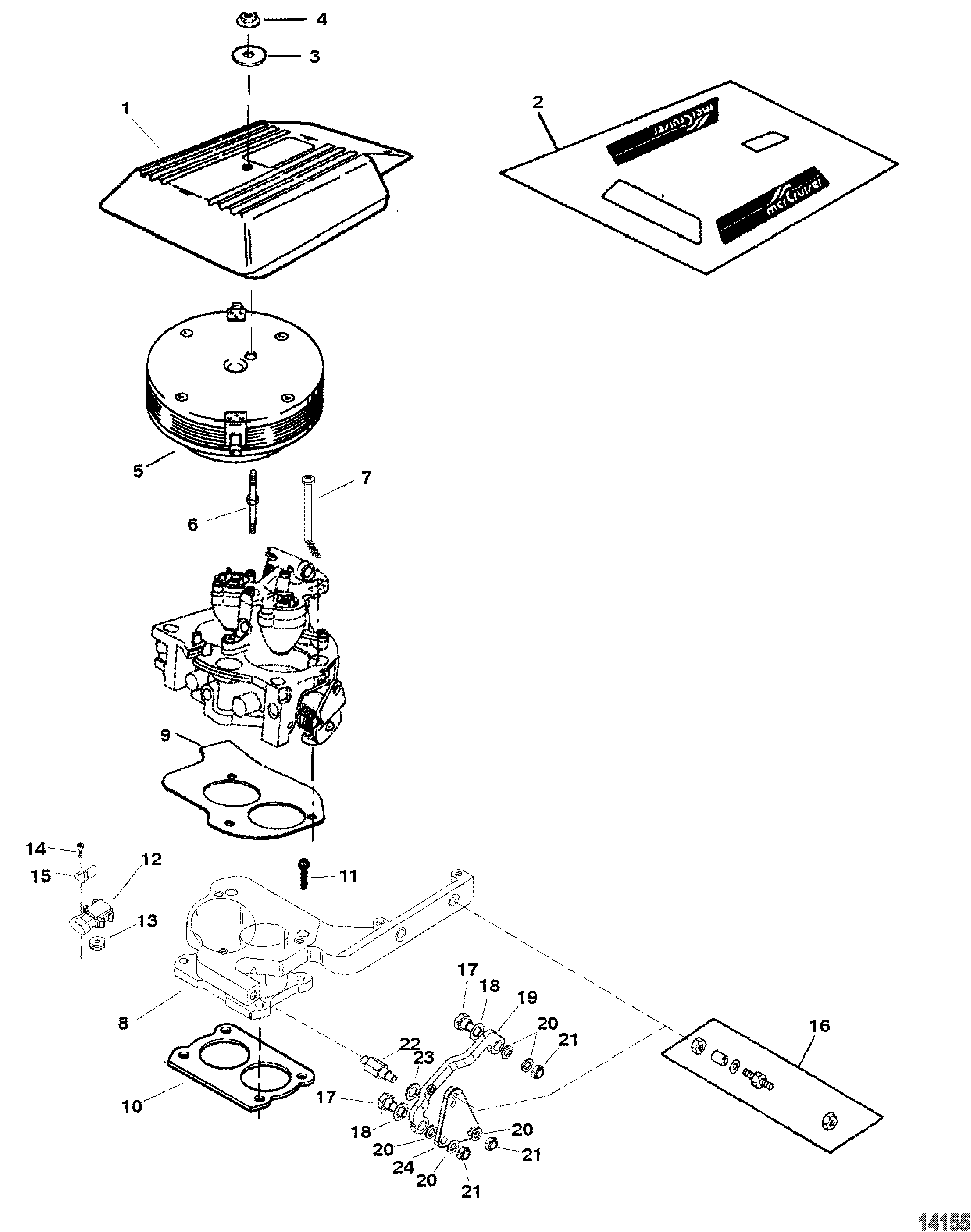

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Compentents
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor (PG260-F1)
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 18484A3 | COVER | 1 | ||||||
| 2 | 37-861314A6 | DECAL SET | 1 | This Part is No Longer Available (5.0L) | |||||
| 2 | 37-861314A5 | DECAL SET | 1 | This Part is No Longer Available (5.7L) | |||||
| 3 | 12-86400 | WASHER | 1 | ||||||
| 4 | 11-826709109 | 525-11-826709109 | NUT, (.250-28) Stainless Steel | 1 | |||||
| 5 | 806637A1 | FLAME ARRESTOR | 1 | 806637T1 | This Part is No Longer Available | ||||
| 6 | 16-806703 | STUD | 1 | ||||||
| 7 | 10-805390 | SCREW, (.312-18 x 2.250) | 3 | ||||||
| 8 | 861189A1 | ADAPTOR ASSEMBLY, TBI | 1 | ||||||
| 9 | 27-806640 | GASKET | 1 | 2 | |||||
| 10 | 27-8079821 | 676-9-61011 | GASKET | 1 | 2 | ||||
| 11 | 10-861846 | SCREW, (.312-18 x .750) Stainless Steel | 4 | ||||||
| 12 | 861249A1 | 676-9-33600 | SENSOR ASSEMBLY, Manifold Air Pressure | 1 | |||||
| 13 | 26-805412 | SEAL | 1 | ||||||
| 14 | 10-806826 | SCREW, (#8-32 x .250) | 1 | ||||||
| 14 | 10-821579 | SCREW, (#10-24 x .500) | 1 | ||||||
| 15 | 861198 | CLIP | 1 | ||||||
| 16 | 16-97477A3 | STUD KIT | 2 | ||||||
| 17 | 10-806946 | BOLT | 2 | ||||||
| 18 | 12-861854 | 525-12-861854 | WASHER, (.453 x .750 x .032) Stainless Steel | 2 | |||||
| 19 | 807097T | CONNECTOR | 1 | ||||||
| 20 | 12-20084 | 700-21664 | WASHER, (.328 x .562 x .062) | 5 | |||||
| 21 | 11-826709111 | 700-21190 | NUT, (.312-24) | 3 | 11-45592 | ||||
| 22 | 806915 | SHAFT | 1 | ||||||
| 23 | 12-79552 | WASHER, (.453 x .750 x .062) Stainless Steel | 1 | ||||||
| 24 | 806916T | PLATE | 1 | ||||||
| - | 27-861246A05 | 700-39016 | GASKET SET | 1 | 27-861246A98 |
