5.7L EFI GM 350 V-8 1999-2001 - Serial 0L325977 Thru 0M299999 - Oil Reservoir Bottle And Bracket

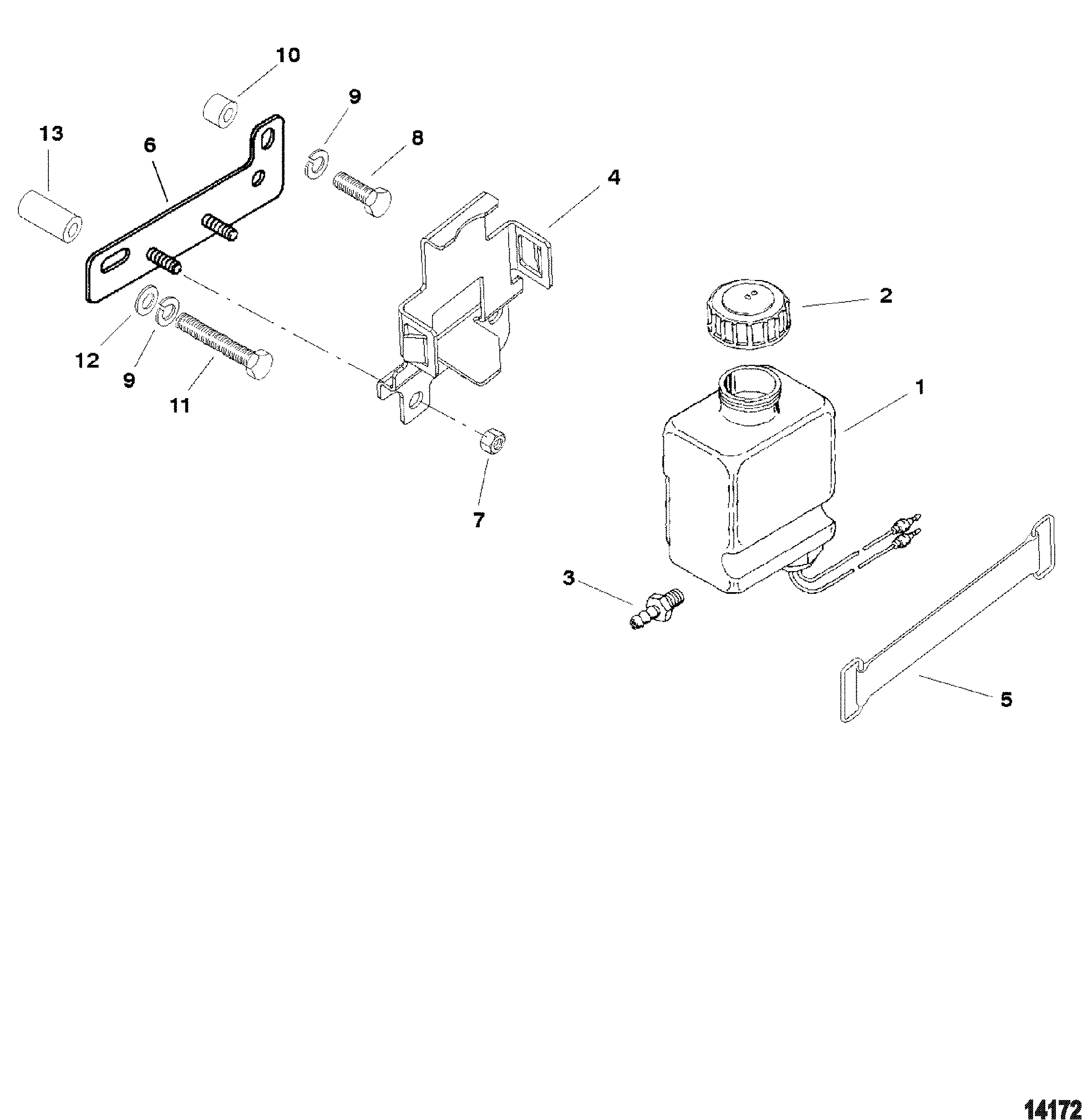

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Compentents
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor (PG260-F1)
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806193A46 | RESERVOIR | 1 | 806193A30 | |||||
| 2 | 36-8067271 | CAP, Drive Lube Monitor, Oil Bottle | 1 | 36-808625 | |||||
| 3 | 22-808624 | CONNECTOR | 1 | ||||||
| 4 | 860065A1 | BRACKET KIT | 1 | ||||||
| 5 | 808023T | STRAP, Bracket | 1 | ||||||
| 6 | 805367T | BRACKET | 1 | ||||||
| 7 | 11-29250 | NUT, (.312-24) | 2 | ||||||
| 8 | 10-37612 | SCREW, (.375-16 x 1.250) | 1 | (Standard Cooling) | |||||
| 9 | 13-35048 | LOCKWASHER, (.375) | 2 | (Standard Cooling) | |||||
| 10 | 23-91034 | SPACER, (.380 x 1.00 x .530) | 1 | (Standard Cooling) No longer made, limited availability | |||||
| 11 | 10-26486 | SCREW, (.375-16 x 2.375) | 1 | (Tank, And Drives To Laidson Dahtand Cooling) | |||||
| 12 | 12-20553 | WASHER, (.406 x .734 x .063) | 1 | (Standard Cooling) | |||||
| 13 | 23-15895 | SPACER, (.38 x 1.00 x 1.44) | 1 | (Standard Cooling) No longer made, limited availability | |||||
| 8 | 10-34353 | SCREW, (.375-16 x 1.00) | 1 | ||||||
| 9 | 13-35048 | LOCKWASHER, (.375) | 2 | (Closed Cooling | |||||
| 10 | 23-905201 | SPACER, (.750 x .250) | 1 | (Closed Cooling) | |||||
| 11 | 10-358701 | SCREW, (.375-16 x 2.00) | 1 | (Clesed Cooling) | |||||
| 12 | 12-20553 | WASHER, (.406 x .734 x .063) | 1 | (Closed Cooling) | |||||
| 13 | 23-861360 | SPACER, (1.1875) | 1 | This Part is No Longer Available (Closed Cooling) |
