5.7L EFI GM 350 V-8 1999-2001 - Serial 0L325977 Thru 0M299999 - Fuel Pump And Fuel Cooler

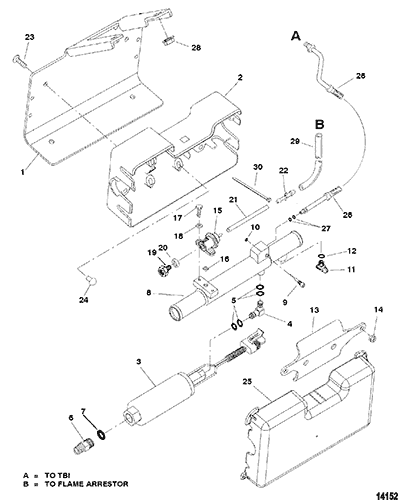

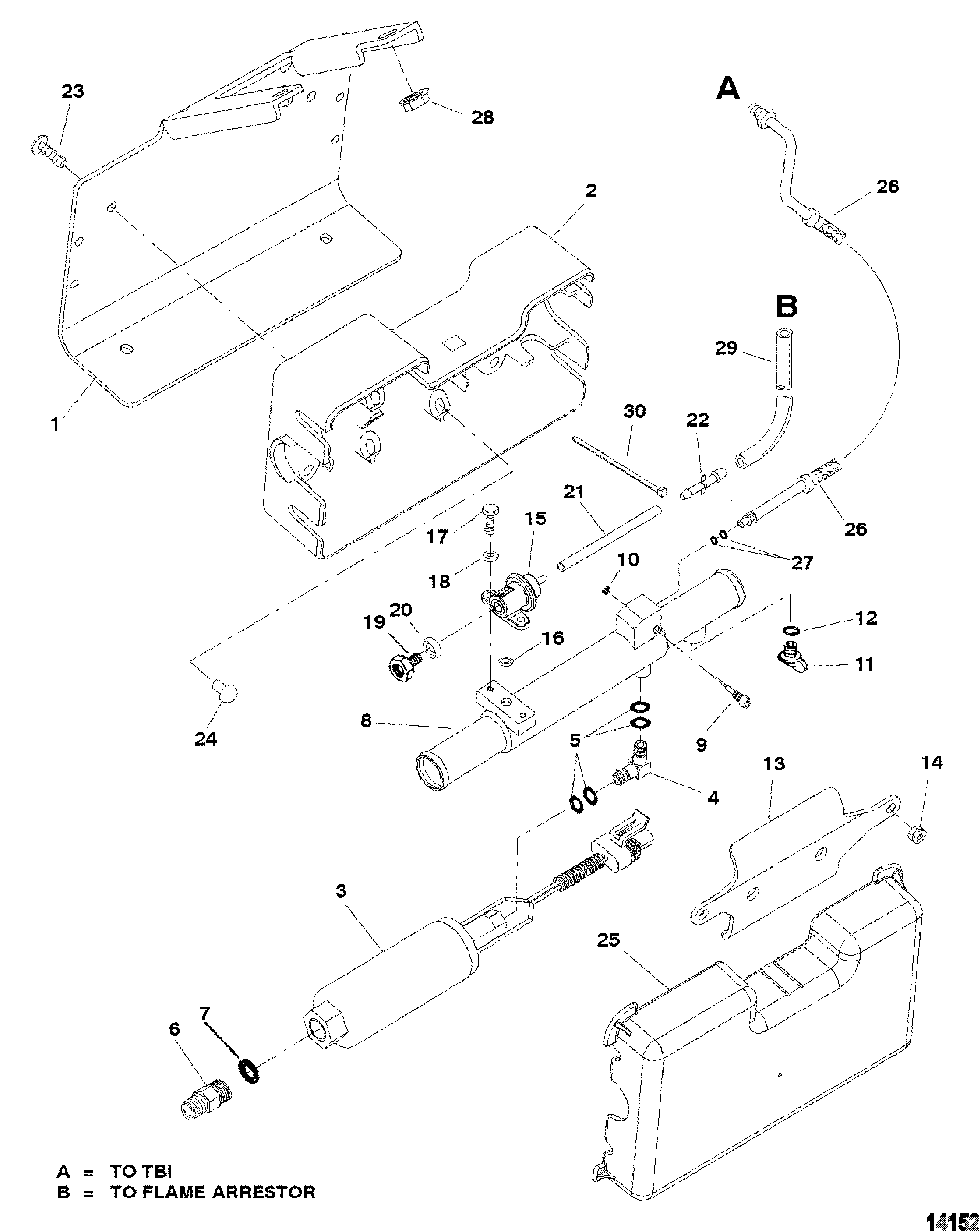

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Compentents
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor (PG260-F1)
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807951T | BRACKET, Fuel Cooler | 1 | ||||||
| 2 | 807685T | INSULATOR | 1 | ||||||
| 3 | 861156A1 | PUMP ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 4 | 22-807783A1 | FITTING ASSEMBLY, 90 Degree | 1 | ||||||
| 5 | 25-805063 | O-RING, (.301 x .070) | 4 | 2 | |||||
| 6 | 22-808001A1 | FITTING ASSEMBLY | 1 | ||||||
| 7 | 25-805062 | O-RING, (.530 x .082) | 1 | 2 | |||||
| 8 | 861267A1 | COOLER KIT, Fuel | 1 | ||||||
| 9 | 10-866114 | SCREW, (.250-28) Special | 1 | 10-861303 | |||||
| 10 | 53-861414 | RING, Retaining | 1 | ||||||
| 11 | 22-806608A02 | 700-13992 | PLUG KIT, (.500-13) Royal Blue | 1 | 22-806608A1 | ||||
| 12 | 25-32509 | O-RING, (.489 x .070) | 1 | 2 | |||||
| 13 | 807979T | BRACKET | 1 | ||||||
| 14 | 11-29598 | NUT, (.250-28) Stainless Steel | 2 | ||||||
| 15 | 807952A1 | 676-9-33205 | REGULATOR KIT, Fuel Pressure | 1 | |||||
| 16 | 35-805406 | FILTER | 1 | ||||||
| 17 | 10-852368 | SCREW, (#10-24 x .750) | 2 | ||||||
| 18 | 12-89302 | WASHER, (.203 x .406 x .040) | 2 | ||||||
| 19 | 22-808002A1 | FITTING KIT | 1 | ||||||
| 20 | 12-36533 | WASHER, (.328 x .562 x .0312) Copper | 1 | ||||||
| 21 | 32-8M0063567 | HOSE, (52.00 Inches Bulk) | 1 | 32-80617379 | |||||
| 22 | 22-807971 | CONNECTOR, Hose | 1 | ||||||
| 23 | 10-808005 | SCREW, (.250-20 x .500) | 4 | ||||||
| 24 | 269011 | BUMPER, Rubber | 8 | ||||||
| 25 | 807930T01 | INSULATOR | 1 | 807930 | |||||
| 26 | 32-861564A1 | LINE ASSEMBLY, Fuel Cooler To Fuel Rail | 1 | ||||||
| 27 | 25-805063 | O-RING, (.301 x .070) | 2 | 2 | |||||
| 28 | 11-860069 | NUT, (.375-16) | 2 | ||||||
| 29 | 32-8M0062600 | HOSE, (.2187 x .440) | 1 | 32-80804762 | |||||
| 30 | 54-816311T | 700-21465 | TIE STRAP, (8.00 Inches) | AR | |||||
| - | 27-861246A05 | 700-39016 | GASKET SET | 1 | 27-861246A98 |
