5.7L EFI GM 350 V-8 1999-2001 - Serial 0L325977 Thru 0M299999 - Crankshaft And Flywheel

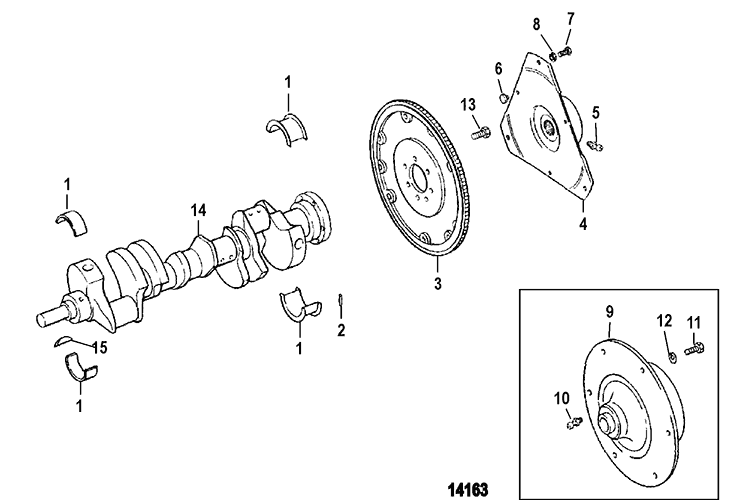

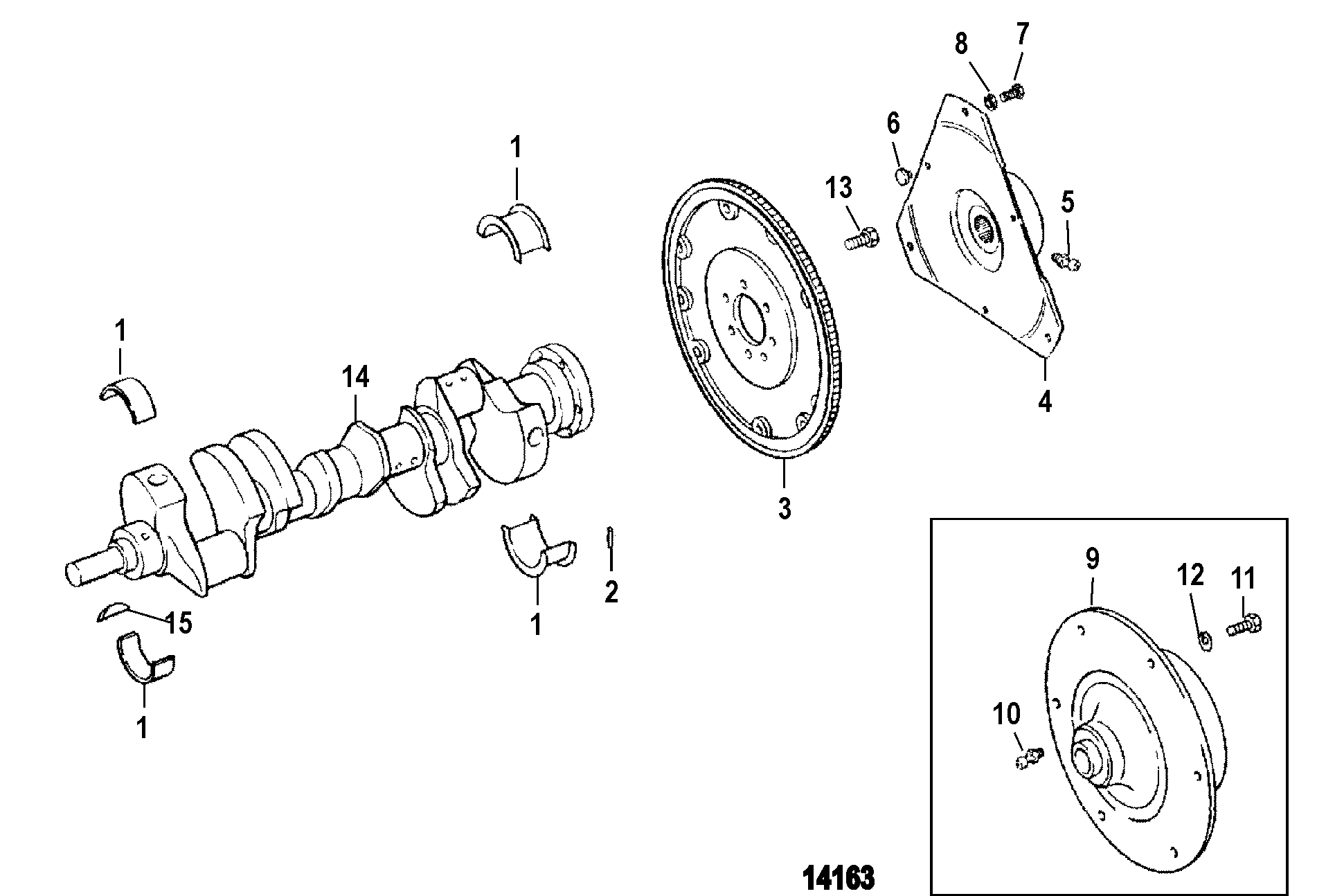

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Compentents
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor (PG260-F1)
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 23-818465 | BEARING SET, 5 Pair | 1 | (Standard) 4 | |||||
| 1 | 23-818466 | BEARING SET, 5 Pair | AR | (.001 USA) | |||||
| 1 | 23-818467 | BEARING SET, 5 Pair | AR | (.010 USA) | |||||
| 1 | 23-818468 | BEARING SET, 5 Pair | AR | (.020 USA) | |||||
| 2 | 17-43504 | PIN, Dowel (.250 Inch) | 2 | 4 | |||||
| 3 | 8M0047213 | FLYWHEEL | 1 | 222-9520 | 4 | ||||
| 4 | 18643A5 | 676-9-72507 | 700-11532 | COUPLING ASSEMBLY | 1 | (5.0L/5.7L Alpha Engines 5.0L Bravo Engines) | |||
| 5 | 22-74036 | FITTING, Grease | 1 | (5.0L/5.7L Alpha Engines 5.0L Bravo Engines) | |||||
| 6 | 18644 | BUMPER, Rubber | 3 | (5.0L/5.7L Alpha Engines 5.0L Bravo Engines) | |||||
| 7 | 10-14883 | SCREW, (.375-16 x 1.12) | 3 | (5.0L/5.7L Alpha Engines 5.0L Bravo Engines) | |||||
| 8 | 12-13510 | WASHER | 3 | (5.0L/5.7L Alpha Engines 5.0L Bravo Engines) | |||||
| 9 | 861523A9 | 676-9-72503 | 525-861523A9 | COUPLER ASSEMBLY, Engine - Short Aluminium Hub | 1 | (5.7L Bravo Engines) | |||
| 9 | 861523A11 | COUPLER ASSEMBLY, Engine, Steel Hub For Work Applications | OPT | ||||||
| 10 | 22-49099 | FITTING | 2 | (5.7L Bravo Engines) | |||||
| 11 | 10-14883 | SCREW, (.375-16 x 1.12) | 6 | (5.7L Bravo Engines) | |||||
| 12 | 12-20572 | WASHER, (.390 x .750 x .093) | 6 | (5.7L Bravo Engines) | |||||
| 13 | 10-845757 | SCREW, (.437-20 x 1.00) | 6 | 10-49845 | 4 | ||||
| 14 | 429-8M0054508 | CRANKSHAFT | 1 | 429-95211 | 4 | ||||
| 15 | 28-34466 | KEY | 2 | 4 |
