5.7L EFI GM 350 V-8 1999-2001 - Serial 0L325977 Thru 0M299999 - Pistons And Connecting Rods

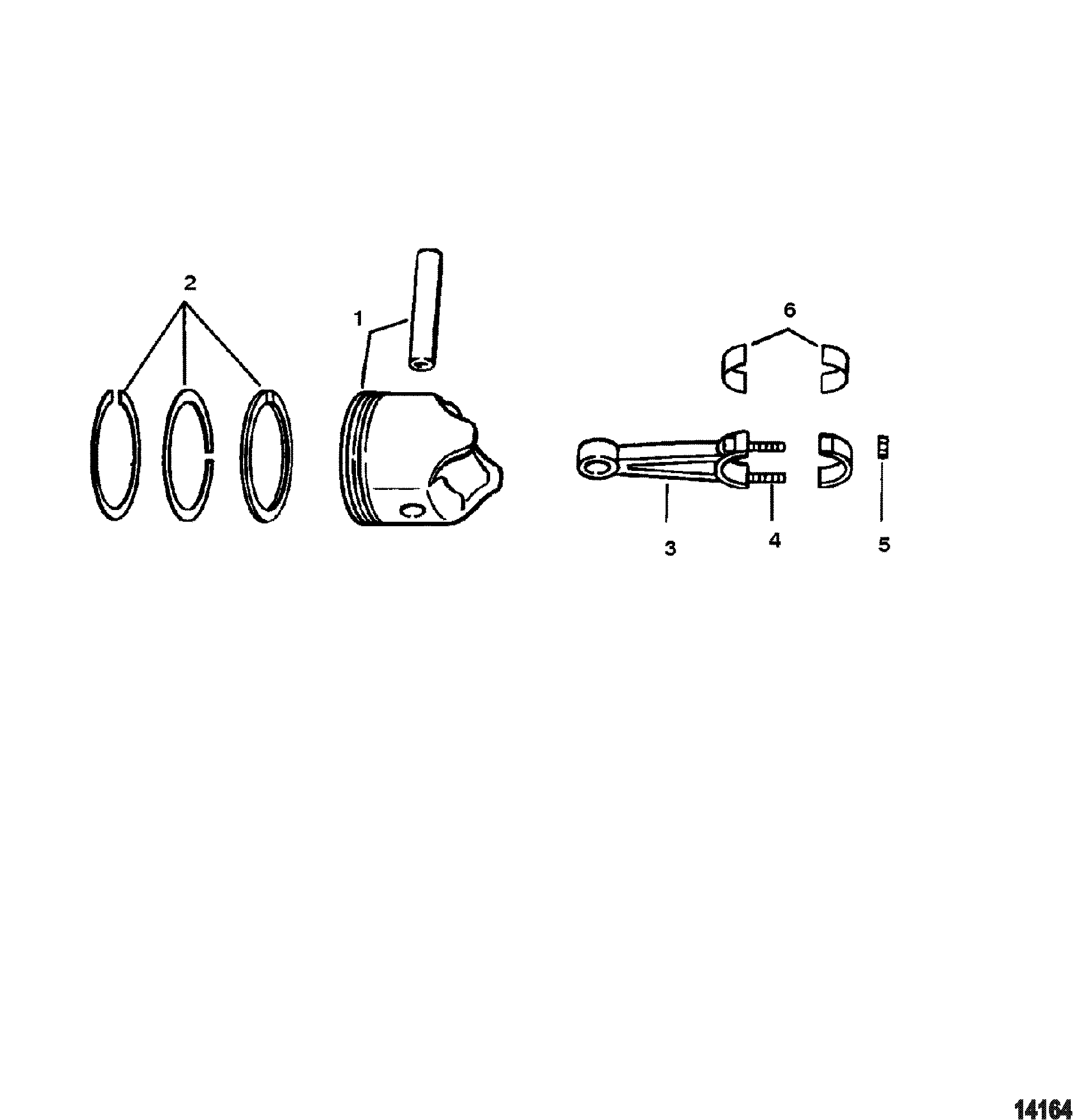

Section Drawing: (Hover or click to view larger)

Untitled Document

Ref.	OEM Part #	Hardin #	Mallory #	GLM #	Other #	Description	Num Req.	Superceded From	Special Notes
1	735-802557T					PISTON ASSEMBLY, Standard	8		(Standard) 5.0L)
1	735-802558T					PISTON ASSEMBLY, .030 Oversize	AR		(.030 Over Size) 5.0L)
2	39-802559					RING SET	8		(Standard) 5.0L) 4
2	39-808570					RING SET	AR	39-802560	(.030 Over Size) 5.0L)
1	735-835001T					PISTON ASSEMBLY	8		(Standard) 5.7L) 4
1	735-835002T					PISTON ASSEMBLY	AR		(.5MM Over Size) 5.7L)
2	39-8018611					RING SET, Piston	8	39-801861T1	(Standard) 5.7L) 4
2	39-835000					RING SET, Piston	AR		(.5MM Over Size) 5.7L)
3	614-8164T					CONNECTING ROD ASSEMBLY	8		4
4	10-85802					SCREW, (.375-24 x Special)	16		This Part is No Longer Available
5	11-37493					NUT, (.375-24)	16
6	23-85701					BEARING	8		(Pair, Standard) 4
6	23-85702					BEARING	AR		(Pair - .001 USA)
6	23-85703					BEARING	AR		(Pair - .002 USA)
6	23-85704					BEARING	AR		(Pair - .010 USA)
6	23-85705					BEARING	AR		(Pair - .020 USA)
