525 EFI - Serial 0M900146 Thru 0M953619 - Electrical Components (Ignition)

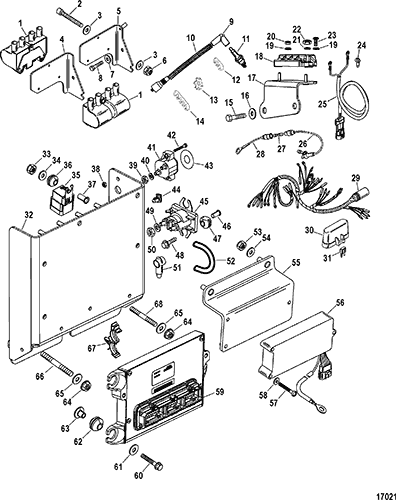

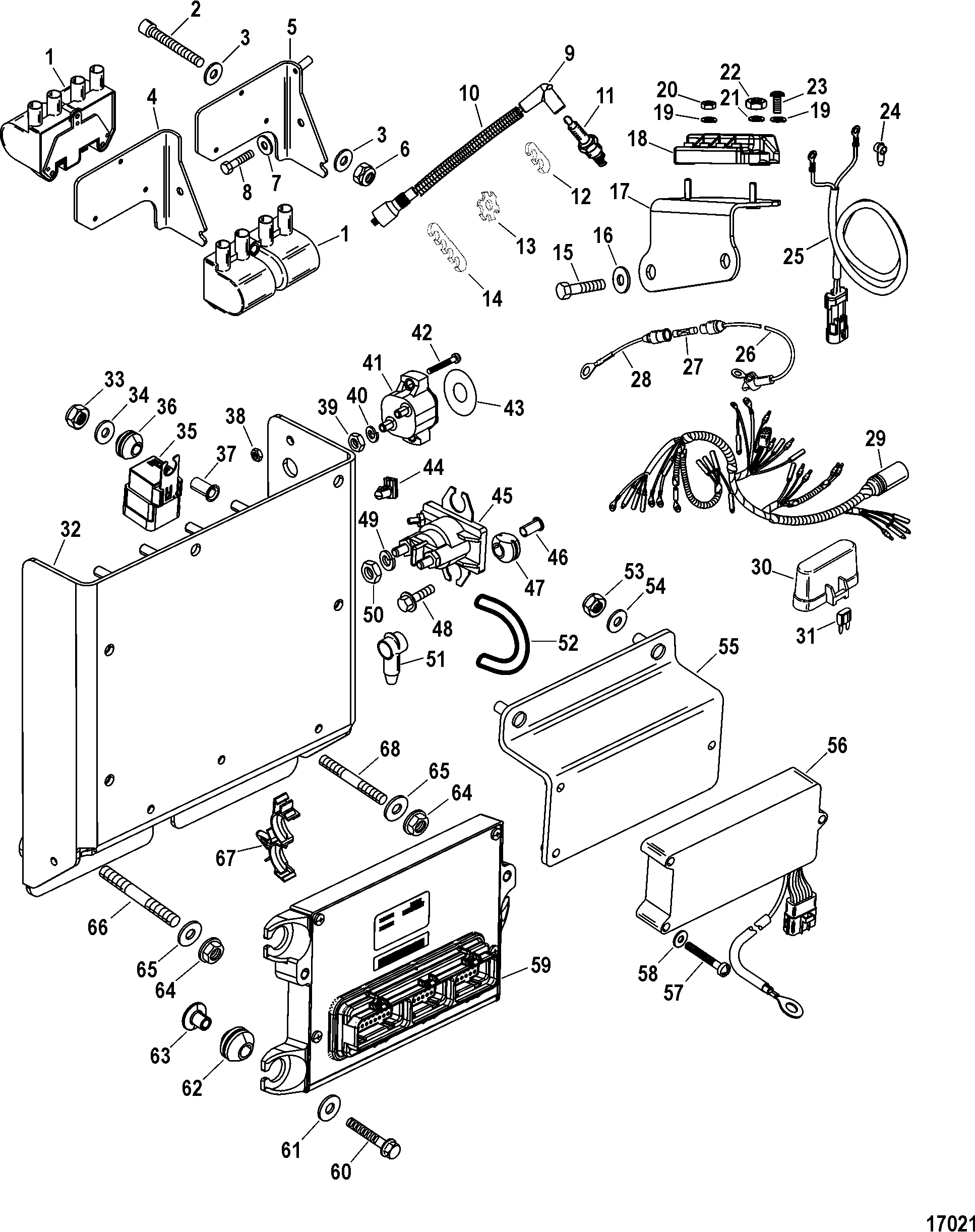

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 841203T | COIL, Ignition | 2 | ||||||
| - | 37-841205 | DECAL SHEET, Coils And Relays, Four Sets Per Sheet | 1 | ||||||
| 2 | 10-848920 | SCREW, (.250-20 x 2.50) | 3 | ||||||
| 3 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 6 | ||||||
| 4 | 841214002 | BRACKET | 1 | 8412141 | Design I - Coil Mount | ||||
| 5 | 841214002 | BRACKET | 1 | Design II - Coil Mount/Fuel Filter | |||||
| 6 | 11-8267098 | NUT, (.250-20) Stainless Steel | 3 | ||||||
| 7 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 1 | ||||||
| 8 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 1 | ||||||
| 9 | 84-840955T01 | CABLE SET, Ignition - Blue Wires | 1 | ||||||
| 10 | 32-828547253 | CONDUIT, (.250 Inside Diameter x 3.00 Feet Bulk), Cut As Required | AR | ||||||
| - | 843137A01 | MARKER SET, Ignition Cables, Includes Two Each Of 1 Thru 8 Numbers | 1 | ||||||
| 11 | 33-810883 | SPARK PLUG | 8 | 5 | |||||
| 12 | 54676 | RETAINER, Two Wire | 4 | ||||||
| 13 | 32783 | RETAINER, Three Wire | 2 | ||||||
| 14 | 32784 | RETAINER, Four Wire | 2 | ||||||
| 15 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 2 | ||||||
| 16 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 17 | 840954T01 | BRACKET, Controller Mount | 1 | ||||||
| 18 | 42600A09 | CONTROLLER ASSEMBLY, Mercathode | 1 | 42600A3 | |||||
| 19 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 5 | ||||||
| 20 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 21 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | ||||||
| 22 | 11-826709106 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 23 | 10-62568 | SCREW, (#10-16 x .375) | 1 | ||||||
| 24 | 85-65208 | BOOT, Insulator - Black | 2 | ||||||
| 25 | 84-865181A01 | HARNESS ASSEMBLY, Mercathode | 1 | No longer made, limited availability | |||||
| 26 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip, Red/Purple Stripe | 1 | ||||||
| 27 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
| 28 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red, Red | 1 | ||||||
| 29 | 84-840945T06 | HARNESS ASSEMBLY, Engine | 1 | 84-840945T04 | |||||
| 30 | 858754 | COVER, Fuse | 2 | ||||||
| 31 | 88-832969T05 | FUSE, Mini - Tan - 5 Ampere | 1 | 88-8329695 | |||||
| 31 | 88-83296915 | FUSE, Mini - Blue - 15 Ampere | 3 | ||||||
| 31 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 5 | 88-83296920 | |||||
| 31 | 88-83296930 | FUSE, Mini - Green - 30 Ampere | 1 | ||||||
| 32 | 840984T01 | BRACKET, PCM Mount | 1 | ||||||
| 33 | 11-8267098 | NUT, (.250-20) Stainless Steel | 4 | ||||||
| 34 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 4 | ||||||
| 35 | 882751A1 | 700-73040 | RELAY ASSEMBLY | 4 | |||||
| 36 | 25-818967 | GROMMET | 4 | ||||||
| 37 | 23-818968 | BUSHING | 4 | ||||||
| 38 | 11-61356 | NUT, (#10-32) Reduced Hex | 2 | ||||||
| 39 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 40 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 41 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 42 | 10-96113 | SCREW, (#10-32 x .880) Stainless Steel | 2 | ||||||
| 43 | 37-72554 | DECAL, Circuit Breaker | 1 | ||||||
| 44 | 54-879962 | CLIP, Connector | 3 | ||||||
| 45 | 89-850187T1 | SOLENOID ASSEMBLY, Starter | 1 | ||||||
| 46 | 23-818968 | BUSHING | 2 | ||||||
| 47 | 25-818967 | GROMMET | 2 | ||||||
| 48 | 10-828478 | SCREW, (.250-20 x 1.00) Stainless Steel | 2 | ||||||
| 49 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 50 | 11-94330 | NUT, (.250-20) Brass | 2 | ||||||
| 51 | 85-880787 | BOOT, Insulator - Yellow | 1 | ||||||
| 51 | 85-880786 | BOOT, Insulator - Red | 3 | ||||||
| 52 | 8M0062940 | SEAL, 6 Inches | 1 | ||||||
| 53 | 11-8267098 | NUT, (.250-20) Stainless Steel | 2 | ||||||
| 54 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 55 | 8424491 | BRACKET, Module Mount | 1 | ||||||
| 56 | 841155T01 | MODULE ASSEMBLY | 1 | ||||||
| 57 | 10-40019111 | SCREW, (M5 x 35) | 3 | ||||||
| 58 | 12-843486 | WASHER, (.203 x .438 x .037) Stainless Steel | 3 | ||||||
| 59 | 879148T73 | PCM, Propulsion Control Module, Programmed Control Module | 1 | 840947005 | |||||
| 60 | 10-828478 | SCREW, (.250-20 x 1.00) Stainless Steel | 3 | ||||||
| 61 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 62 | 25-834985 | GROMMET | 3 | ||||||
| 63 | 23-856954 | BUSHING | 3 | ||||||
| 64 | 11-859135 | 676-9-78116 | NUT, (.437-20) Brass/Nickel Plated | 2 | |||||
| 65 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 66 | 16-57984 | STUD, (.437-14/.437-20 x 2.380) | 1 | 16-579841 | |||||
| 67 | 54-858954 | CLIP, (.625), Harness Support | AR | ||||||
| 67 | 54-883066 | CLIP, (.865), Harness Support | AR | ||||||
| 67 | 54-858755 | CLIP, (1.00), Harness Support | AR | ||||||
| 68 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 1 | ||||||
| - | 841178A1 | PARTIAL ENGINE ASSEMBLY | 1 |
