525 EFI - Serial 0M900146 Thru 0M953619 - Electrical Components (Starter And Alternator Mount)

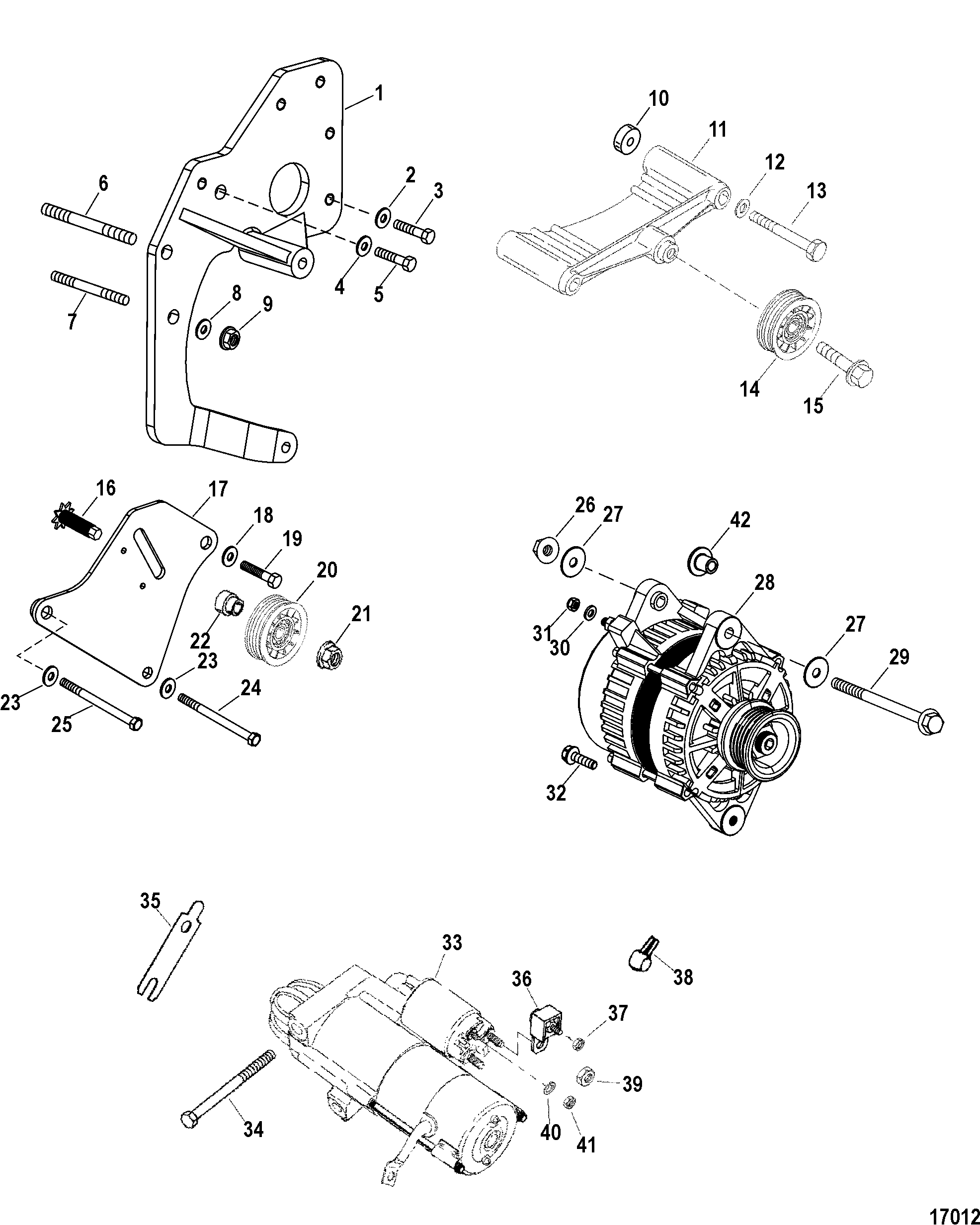

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0050829 | BRACKET, Alternator/Power Steering Mount | 1 | 8409351 | |||||
| 2 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 3 | 10-825427 | SCREW, (.437-14 x 1.250) Stainless Steel | 1 | ||||||
| 4 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | Non Power Steering Models | |||||
| 5 | 10-65210 | SCREW, (.375-16 x 1.00) | 1 | Non Power Steering Models | |||||
| 6 | 16-59579 | STUD, (.437-14/.437-20 x 2.812) | 1 | ||||||
| 7 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 1 | ||||||
| 8 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 9 | 11-859135 | 676-9-78116 | NUT, (.437-20) Brass/Nickel Plated | 2 | |||||
| 10 | 23-669952 | SPACER, (.410 x 1.00 x .500) Aluminium - Black | 2 | Non Power Steering Models | |||||
| 11 | 849297T1 | BRACKET, Idler Pulley, Idler Pulley | 1 | Non Power Steering Models | |||||
| 12 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | Non Power Steering Models | |||||
| 13 | 10-841154 | SCREW, (.375-16 x 3.375) | 2 | Non Power Steering Models | |||||
| 14 | 864625T | PULLEY ASSEMBLY, Idler - Black | 1 | 849296T | Non Power Steering Models | ||||
| 15 | 10-82130130 | SCREW, (M10 x 30) | 1 | Non Power Steering Models | |||||
| 16 | 43-8183812 | PINION STUD, (.437-20) Stainless Steel | 1 | ||||||
| 17 | 8M0065011 | BRACKET, Tensioner | 1 | 8424431 | |||||
| 18 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 1 | ||||||
| 19 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 1 | ||||||
| 20 | 807757T | PULLEY ASSEMBLY, Idler - Black, Idler | 1 | ||||||
| 21 | 11-859135 | 676-9-78116 | NUT, (.437-20) Brass/Nickel Plated | 1 | |||||
| 22 | 845117 | BUSHING | 1 | ||||||
| 23 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 24 | 10-87302 | SCREW, (.375-16 x 5.00) Stainless Steel | 1 | ||||||
| 25 | 10-841118 | SCREW, (.437-14 x 5.50) Stainless Steel | 1 | ||||||
| 26 | 11-82670910 | NUT, (.312-18) Stainless Steel | 1 | ||||||
| 27 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 2 | SN# 0M900146 THRU 0M951500 | ||||
| 27 | 12-F506186 | WASHER, (.340 x .734 x .105) Stainless Steel | 2 | SN# 0M953031 THRU 0M953619 | |||||
| 28 | 863077T02 | ALTERNATOR ASSEMBLY, Blue, Service Complete | 1 | ||||||
| 29 | 10-39001 | SCREW, (.312-18 x 4.50) | 1 | ||||||
| 30 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 31 | 11-401386 | NUT, (M6) Stainless Steel | 2 | ||||||
| 32 | 10-82155025 | SCREW, (M8 x 25 MM) Stainless Steel | 1 | ||||||
| 33 | 50-8M8021116 | STARTER MOTOR ASSEMBLY | 1 | NOTE: See Starter Assembly Section For Parts Breakdown | |||||
| 34 | 10-8053432 | SCREW, (.375-16 x 4.33) | 2 | ||||||
| 35 | 15-8172721 | SHIM, Special | 1 | ||||||
| 36 | 88-79023A91 | FUSE ASSEMBLY, 90 Ampere | 1 | 0.375 Mounting Hole SN# 0M900146 THRU 0M951500 | |||||
| 36 | 88-79023T90 | FUSE ASSEMBLY, 90 Ampere | 1 | 88-79023A90 | 0.312 Mounting Hole SN# 0M953031 THRU 0M953619 | ||||
| 37 | 11-826709109 | NUT, (.250-28) Stainless Steel | 1 | ||||||
| 38 | 85-79695T | BOOT, Insulator - Black | 1 | 85-79695 | |||||
| 39 | 11-401388 | NUT, (M8) Stainless Steel | 1 | ||||||
| 40 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 41 | 11-400211 | NUT, (M5) Stainless Steel | 1 | ||||||
| 42 | 23-841940 | BUSHING, Flanged | 1 | SN# 0M953031 THRU 0M953619 |
