525 EFI - Serial 0M900146 Thru 0M953619 - Pump-Motor Assembly (Design II - 14336A25)

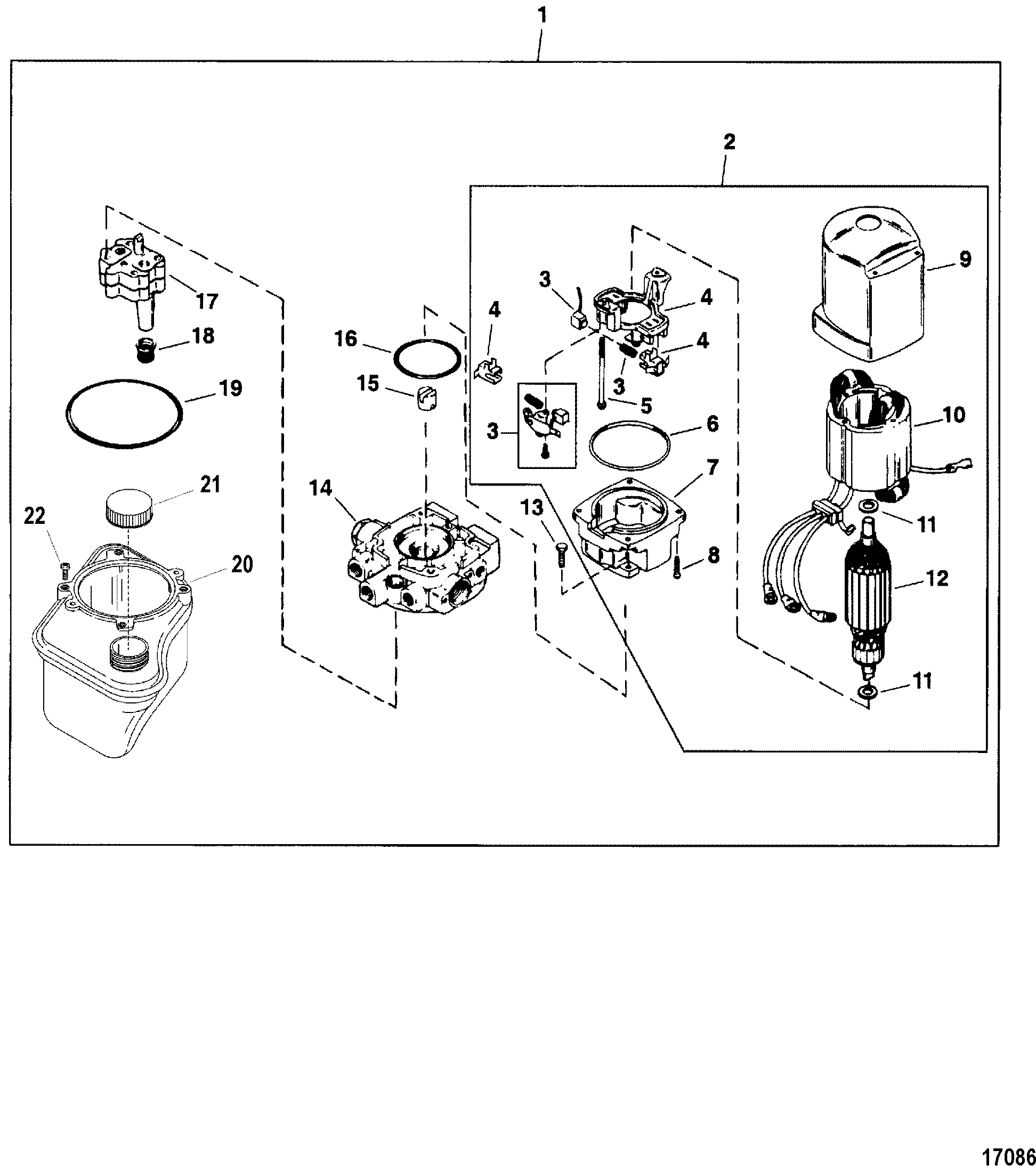

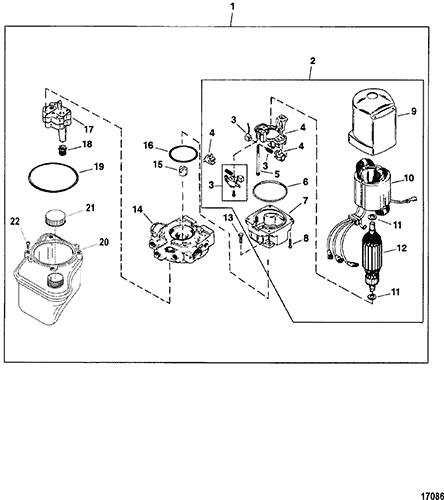

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865380A13 | PUMP/MOTOR ASSEMBLY | 1 | 14336A25 | Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line | ||||
| 2 | 891736T | MOTOR ASSEMBLY | 1 | Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line | |||||
| 3 | 891737 | BRUSH KIT | 1 | ||||||
| 4 | 891738 | HOLDER ASSEMBLY, Brushes | 1 | ||||||
| 5 | 10-891739 | SCREW, Brush Holder | 2 | ||||||
| 6 | 25-891740 | O-RING | 1 | ||||||
| 7 | NSS | NOT SOLD SEPARATE, End Cap Assembly - With Bearing | 1 | This Part is not sold separately | |||||
| 8 | 10-891741 | SCREW | 4 | ||||||
| 9 | NSS | NOT SOLD SEPARATE, Cover Assembly - With Bearing | 1 | This Part is not sold separately | |||||
| 10 | NSS | NOT SOLD SEPARATE, Field And Frame Assembly | 1 | This Part is not sold separately | |||||
| 11 | NSS | NOT SOLD SEPARATE, Thrust Washer | 2 | This Part is not sold separately | |||||
| 12 | NSS | NOT SOLD SEPARATE, Armature | 1 | This Part is not sold separately | |||||
| 13 | 10-823444 | SCREW | 2 | ||||||
| 14 | 808728T | ADAPTER ASSEMBLY | 1 | ||||||
| 15 | 803852 | COUPLING | 1 | ||||||
| 16 | 25-89498 | O-RING, Motor End | 1 | ||||||
| 17 | 18529 | PUMP ASSEMBLY, Includes Screws | 1 | Does not include filters | |||||
| 18 | 35-89496 | FILTER | 2 | ||||||
| 19 | 25-17645 | O-RING, Reservoir End | 1 | ||||||
| 20 | 883166A2 | RESERVOIR KIT, With Filters - Ref 18 And O-Ring - Ref 19 | 1 | The resevoir with single mount screw is no longer made, this resevoir mounts with 4 screws and may require a new pump adapter. | |||||
| 21 | 36-865448A01 | CAP | 1 | 36-861597 | |||||
| 22 | 10-883167 | SCREW, (#8-32) | 4 | ||||||
| - | 812498A1 | VALVE KIT, Relief, Up Pressure | 1 | ||||||
| - | 812499A1 | VALVE KIT, Relief, Up Pressure | 1 | ||||||
| - | 95353A1 | VALVE KIT, Relief, Thermal | 1 | ||||||
| - | 18545A1 | REPAIR KIT, Overhaul | 1 |
