525 EFI - Serial 0M900146 Thru 0M953619 - Intake Manifold And Components

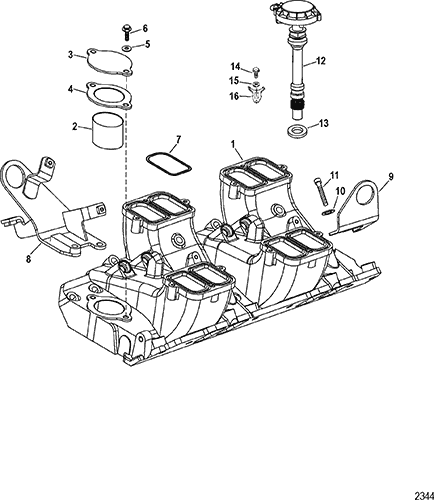

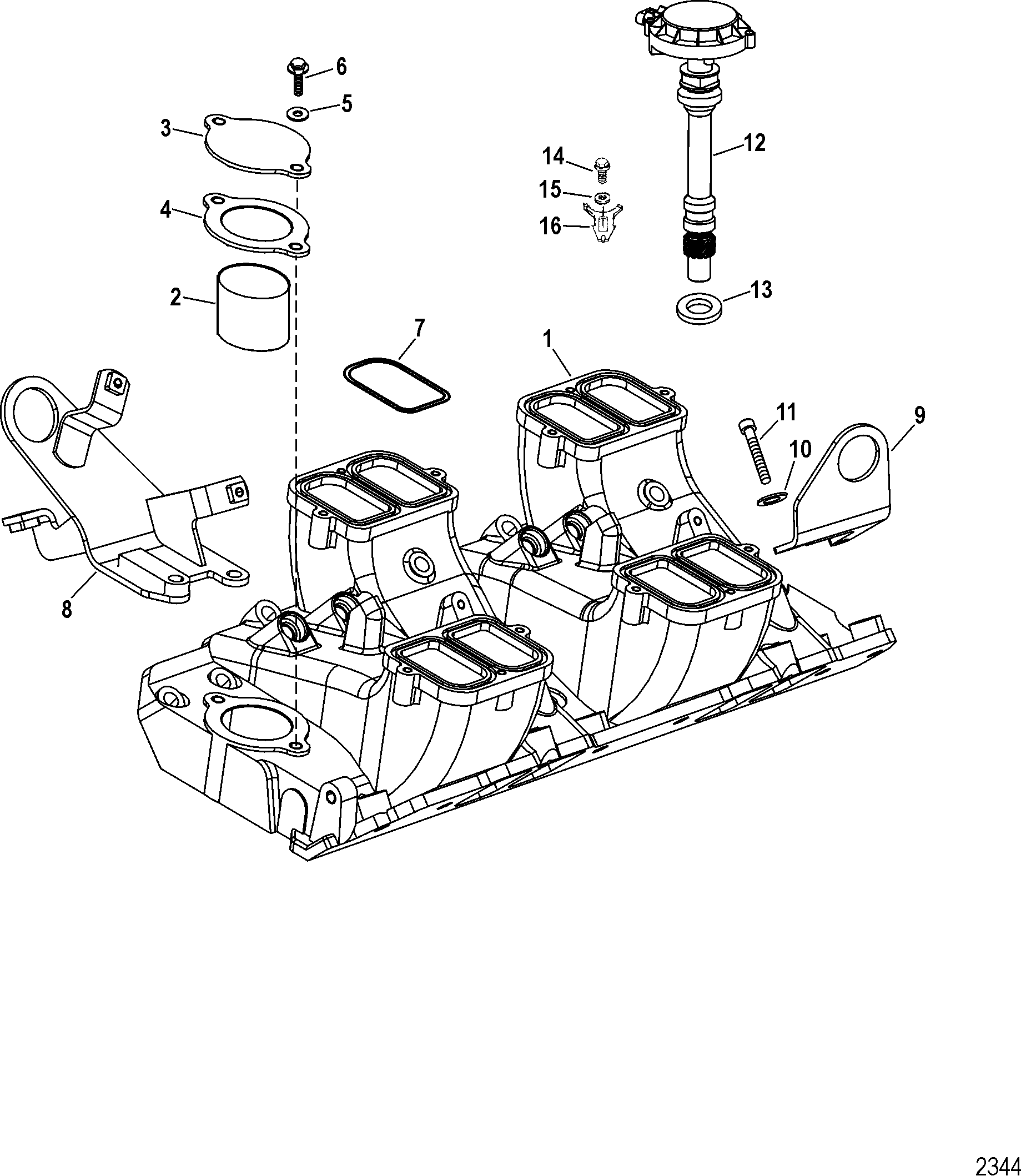

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 840930A04 | MANIFOLD ASSEMBLY, Intake - Blue | 1 | 5 | |||||
| 2 | 841119 | TUBE, Coolant Restrictor | 1 | 5 | |||||
| 3 | 17494A02 | COVER KIT, Coolant Tube - Blue | 1 | 5 | |||||
| 4 | 27-331792 | GASKET | 1 | 2,5 | |||||
| 5 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | 5 | |||||
| 6 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 2 | 5 | |||||
| 7 | 25-805732 | O-RING, (2.612 x .103) | 8 | 2,5 | |||||
| 8 | 840983T01 | BRACKET, Lift - Starboard | 1 | 5 | |||||
| 9 | 54-8499981 | LIFTING EYE, Black, Port | 1 | 5 | |||||
| 10 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 16 | 5 | |||||
| 11 | 10-822168 | SCREW, (.375-16 x 1.750) Stainless Steel | 7 | 5 | |||||
| 11 | 10-842787 | SCREW, (.375-16 x 2.00) | 3 | 10-47432 | 5 | ||||
| 11 | 10-847919 | SCREW, (.375-16 x 2.250) | 2 | 5 | |||||
| 11 | 10-849994 | SCREW, (.375-16 x 5.250) | 4 | 5 | |||||
| 12 | 840982T01 | SENSOR ASSEMBLY, Oil Drive/Camshaft | 1 | 840982A1 | |||||
| 13 | 27-344863 | GASKET | 1 | ||||||
| 14 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 1 | ||||||
| 15 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 16 | 52185 | CLAMP | 1 | ||||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | 27-843073A03 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | ||||
| - | 841178A1 | PARTIAL ENGINE ASSEMBLY | 1 |
