525 EFI - Serial 0M900146 Thru 0M953619 - Engine Components (Water Pump And Front Cover)

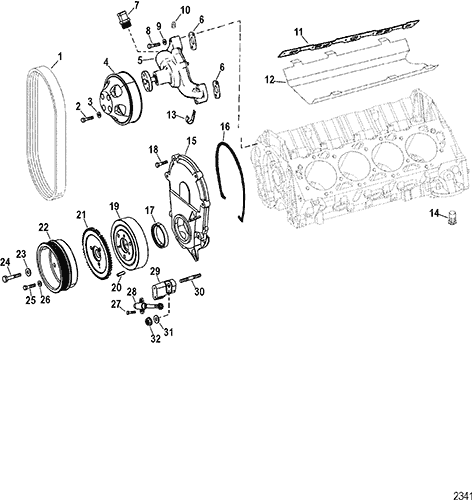

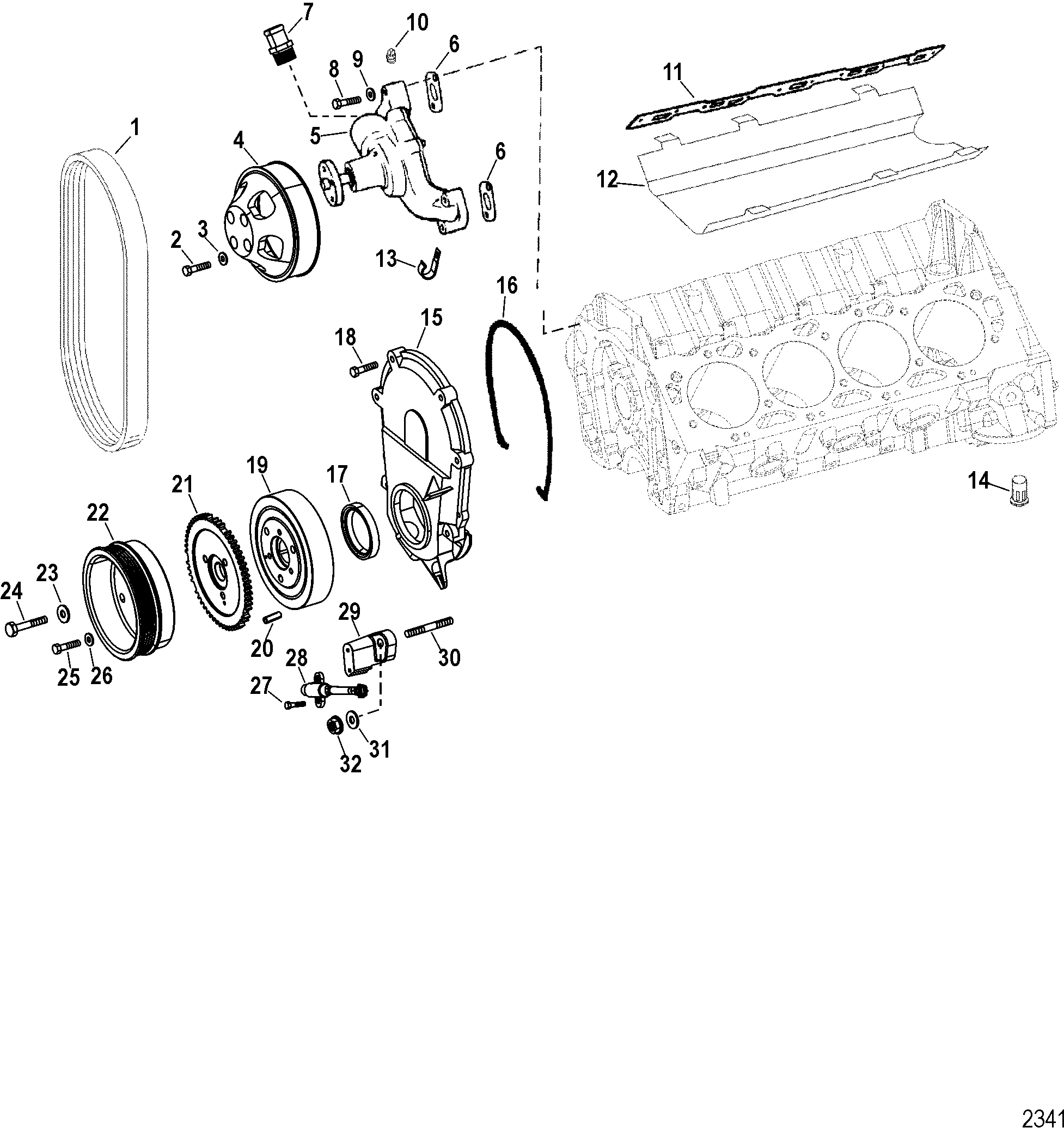

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 57-865615Q02 | BELT, Serpentine | 1 | 57-8638762 | Design I - Belt Center Distance 992.5 mm SN# 0M900146 THRU 0M951500 | ||||
| 1 | 57-865615Q12 | BELT, Serpentine | 1 | 57-865615012 | Design II - Belt Center Distance 983.0 mm SN# 0M953031 THRU 0M953619 | ||||
| 2 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | ||||||
| 3 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 4 | 842444T | PULLEY, Circulating Water Pump - Blue | 1 | ||||||
| 5 | 811573A04 | PUMP ASSEMBLY, Circulating Water | 1 | 811573A03 | 5 | ||||
| 6 | 27-49110 | 676-9-60066 | 700-31770 | GASKET, Circulating Water Pump Mount | 2 | 2,5 | |||
| 7 | 22-806242 | CONNECTOR, Hose | 1 | 5 | |||||
| 8 | 10-842787 | SCREW, (.375-16 x 2.00) Stainless Steel | 3 | 5 | |||||
| 9 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 3 | 5 | |||||
| 10 | 22-845174 | PLUG, (.500-14 x .610) Brass | 1 | 5 | |||||
| 11 | 27-843073 | GASKET, Intake Manifold Mount | 2 | 27-843134 | 2,5 | ||||
| 12 | 845756T | SHIELD, Oil Intake, Heat | 1 | 816073 | 5 | ||||
| 13 | 54-78945 | J CLAMP, Harness Support | 1 | 5 | |||||
| 14 | VALVE, Relief, Oil By Pass - 30 PSI | 1 | 5 | ||||||
| 15 | 845610T | COVER ASSEMBLY, Cylinder Front | 1 | 5 | |||||
| 16 | 27-850456 | GASKET, Front Cover Mount | 1 | 2,5 | |||||
| 17 | 26-8219471 | 676-9-61612 | SEAL, Oil | 1 | 2,5 | ||||
| 18 | 10-F2030 | SCREW, (.250-20 x 1.250) Stainless Steel | 6 | 5 | |||||
| 19 | 845625T03 | DAMPER | 1 | 5 | |||||
| 20 | 17-58997 | PIN, Roll (.164 x .750) | 1 | ||||||
| 21 | 8M0050961 | WHEEL, Sensor Target | 1 | 841225001 | 5 | ||||
| 22 | 843119T | PULLEY, Blue | 1 | 5 | |||||
| 23 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 3 | 5 | |||||
| 24 | 10-8431471 | SCREW, (.375-16 x 1.750) | 3 | 5 | |||||
| 25 | SCREW, (.500-20 x 2.500) | 1 | 10-811559 | 5 | |||||
| 26 | 12-8413901 | WASHER, (.520 x 2.063 x .280) | 1 | 5 | |||||
| 27 | 10-4010516 | SCREW, (M5 x 16) Stainless Steel | 2 | ||||||
| 28 | 8283582 | SENSOR, Crankshaft | 1 | ||||||
| 29 | 8412241 | BRACKET, Sensor Mount | 1 | ||||||
| 30 | 16-59579 | STUD, (.437-14/.437-20 x 2.812) | 1 | ||||||
| 31 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 1 | |||||
| 32 | 11-859135 | 676-9-78116 | NUT, (.437-20) Brass/Nickel Plated | 1 | |||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | 27-843073A03 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | ||||
| - | 841178A1 | PARTIAL ENGINE ASSEMBLY | 1 |
