525 EFI - Serial 0M900146 Thru 0M953619 - Senders And Sensors

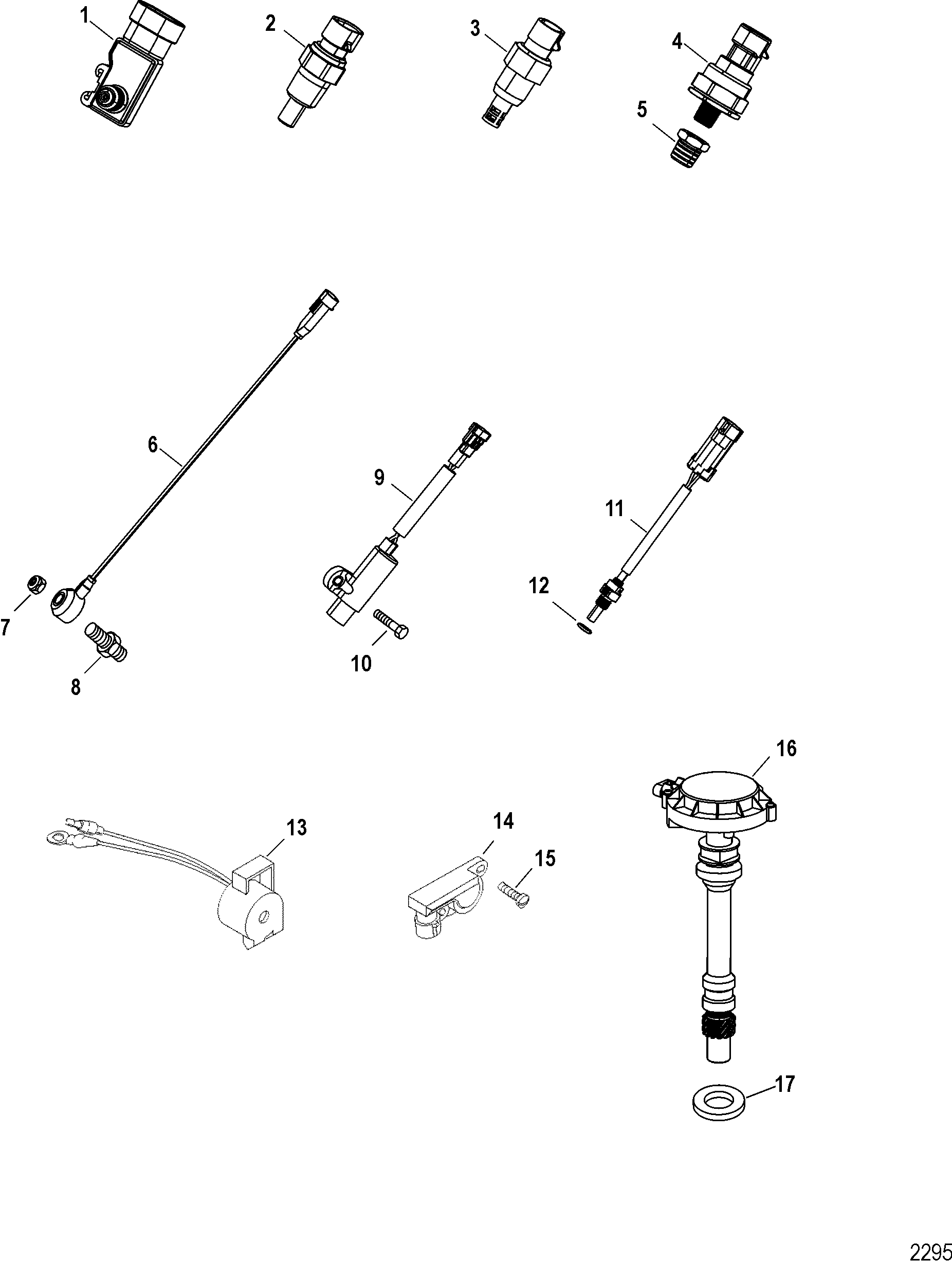

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 854445 | 676-9-33603 | SENSOR, MAP, Manifold Absolute Pressure | 1 | NOTE: Also See Intake Plenum And Components Section | ||||
| 2 | 805218T | 676-9-42402 | SENSOR, Coolant Temperature | 1 | NOTE: Also See Cylinder Block And Camshaft Section | ||||
| 3 | 805223T | 676-9-42406 | SENSOR, Intake Air Temperature | 1 | NOTE: Also See Intake Plenum And Components Section | ||||
| 4 | 881879T11 | SENSOR, Pressure (0 - 100 PSI), Oil Pressure | 1 | 881879011 | NOTE: Also See Cylinder Block And Camshaft Section | ||||
| 4 | 881879T11 | SENSOR, Pressure (0 - 100 PSI), Fuel Pressure | 1 | 881879011 | NOTE: Also See Fuel Rails And Injectors Section | ||||
| 4 | 881879T11 | SENSOR, Pressure (0 - 100 PSI), Water Pressure | 1 | 881879011 | NOTE: Also See Oil Cooler And Oil Filter Section | ||||
| 5 | 22-64013 | FITTING, (.375 Male To .125 Female) | 1 | NOTE: Used With Oil Pressure Sensor - Also See Cylinder Block And Camshaft Section | |||||
| 6 | 878187 | 676-9-33502 | SENSOR ASSEMBLY, Knock | 2 | NOTE: Also See Cylinder Block And Camshaft Section | ||||
| 7 | 11-826292 | NUT, (M10) Brass/Nickel Plated, Knock Sensor Mounting | 2 | ||||||
| 8 | 16-862915 | STUD, (.250-18/M10 Special), Knock Sensor Mounting | 2 | ||||||
| 9 | 8283582 | SENSOR, Crankshaft Position | 1 | NOTE: Also See Circulating Water Pump And Front Cover Section | |||||
| 10 | 10-4010516 | SCREW, (M5 x 16) Stainless Steel | 2 | ||||||
| 11 | 885342002 | SENSOR ASSEMBLY, Water Temperature | 1 | 885342001 | NOTE: Also See Closed Cooling System Section | ||||
| 12 | 25-896699 | O-RING, (.351 x .072) | 1 | 25-888814 | |||||
| 13 | 816492A6 | ALARM KIT, Audio Warning | 1 | NOTE: Remote Mounted Near Helm | |||||
| 14 | 849903 | SENSOR, Throttle Position | 1 | NOTE: Also See Intake Plenum And Components Section | |||||
| 15 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 2 | ||||||
| 16 | 840982T01 | SENSOR ASSEMBLY, Oil Drive/Camshaft | 1 | 840982A1 | NOTE: Also See Intake Manifold And Components Section | ||||
| 17 | 27-344863 | GASKET | 1 |
