525 EFI - Serial 0M900146 Thru 0M953619 - Trim Pump Assembly (14336 Series)

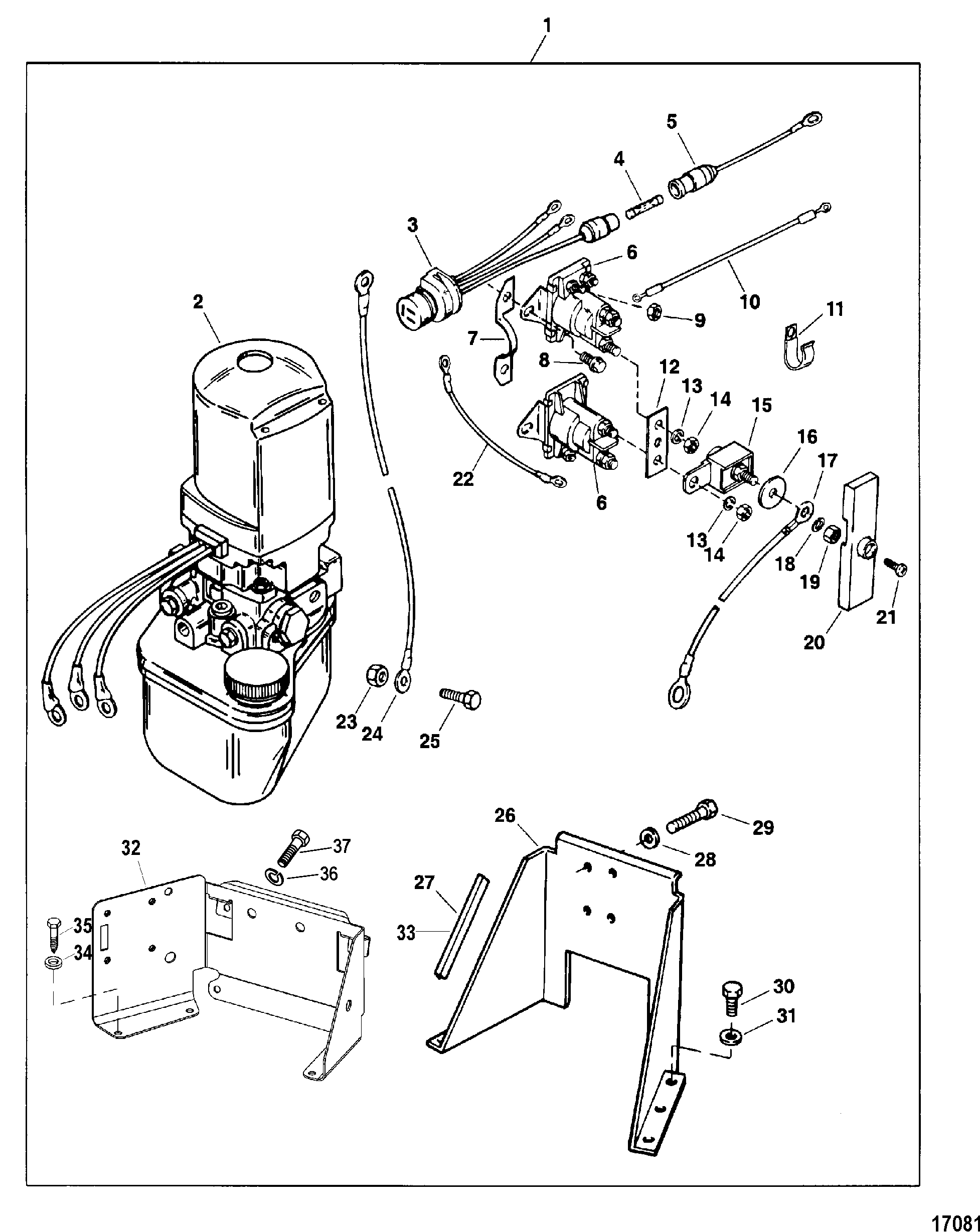

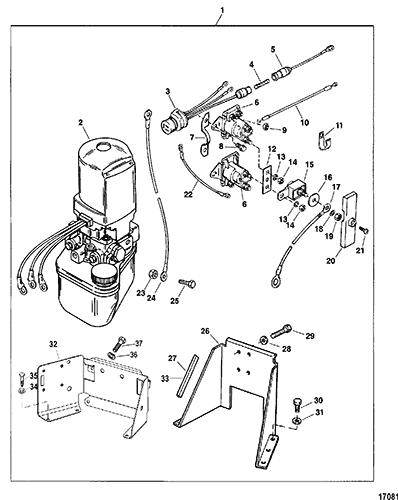

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865380A25 | PUMP ASSEMBLY, Trim | 1 | 14336A17 | Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line | ||||
| 1 | 865380A25 | PUMP ASSEMBLY, Trim | 1 | 14336A22 | Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line | ||||
| 1 | 865380A25 | PUMP ASSEMBLY, Trim | 1 | 14336A28 | Design III - Etched Manufacturing Numbers On Top Of Cover And Wires Will Have White Straight Lines And RFI Filter Circuit Board | ||||
| 2 | 865380A13 | PUMP/MOTOR ASSEMBLY | 1 | 14336A20 | NOTE: See Pump/Motor Assembly Design I Section For Parts Breakdown | ||||
| 2 | 865380A13 | PUMP/MOTOR ASSEMBLY | 1 | 14336A25 | NOTE: See Pump/Motor Assembly Design II Section For Parts Breakdown | ||||
| 2 | 865380A13 | PUMP/MOTOR ASSEMBLY | 1 | 14336A31 | NOTE: See Pump/Motor Assembly Design III Section For Parts Breakdown | ||||
| 3 | 84-79147A3 | HARNESS ASSEMBLY | 1 | ||||||
| 4 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
| 5 | 84-95084A2 | CABLE ASSEMBLY | 1 | ||||||
| 6 | 89-96158T | SOLENOID | 2 | ||||||
| 7 | 88075 | RETAINER | 1 | ||||||
| 8 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel | 4 | ||||||
| 9 | 11-26419 | NUT, (#8-32) Brass | 4 | ||||||
| 10 | 84-86322A24 | CABLE ASSEMBLY, (4.00 Inches), Black | 1 | ||||||
| 11 | 54-55098 | J CLIP | 1 | ||||||
| 12 | 94275 | LINK, Connector | 1 | ||||||
| 13 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 4 | ||||||
| 14 | 11-94330 | NUT, (.250-20) Brass | 4 | ||||||
| 15 | 79023T10 | FUSE ASSEMBLY, 110 Ampere | 1 | 88-79023A10 | |||||
| 16 | 12-25908 | WASHER, (.265 x .812 x .0625) | 1 | ||||||
| 17 | 84-79139A12 | CABLE ASSEMBLY, Red-Positive, Positive | 1 | ||||||
| 18 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 1 | ||||||
| 19 | 11-21825 | NUT, (.250-28) | 1 | ||||||
| 20 | 85-861680 | INSULATOR | 1 | ||||||
| 21 | 10-48409 | SCREW, (#10-16 x .625) Stainless Steel | 1 | ||||||
| 22 | 84-86322A15 | CABLE ASSEMBLY, (5.50 Inches) Black, Black | 1 | ||||||
| 23 | 11-68292 | NUT, (.312-18) | 1 | ||||||
| 24 | 84-79138A9 | CABLE ASSEMBLY, (6.00 Feet) Black-Negative, Negative | 1 | ||||||
| 25 | 10-90285 | SCREW, (.312-18 x .625) | 1 | ||||||
| 26 | 862548A1 | BRACKET ASSEMBLY, Floor Mounted Only | 1 | 42419A1 | |||||
| 27 | 58491 | CHANNEL, Rubber (4.00 Inches) | 2 | ||||||
| 28 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24) | 4 | Optional | ||||
| 29 | 10-35386 | SCREW, (.312-18 x 1.00) | 4 | Optional | |||||
| 30 | 10-59784 | SCREW, (.250-10 x 1.00) | 4/6 | ||||||
| 31 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 4/6 | ||||||
| 32 | 862548A1 | BRACKET KIT, Floor/Transom Mounted | 1 | ||||||
| 33 | 58491 | CHANNEL, Rubber (4.00 Inches) | 2 | ||||||
| 34 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 4 | ||||||
| 35 | 10-59784 | SCREW, (.250-10 x 1.00) | 4 | ||||||
| 36 | 13-35048 | LOCKWASHER, (.375) | 2 | ||||||
| 37 | 10-98260 | SCREW, (.375-16 x .620) | 2 |
